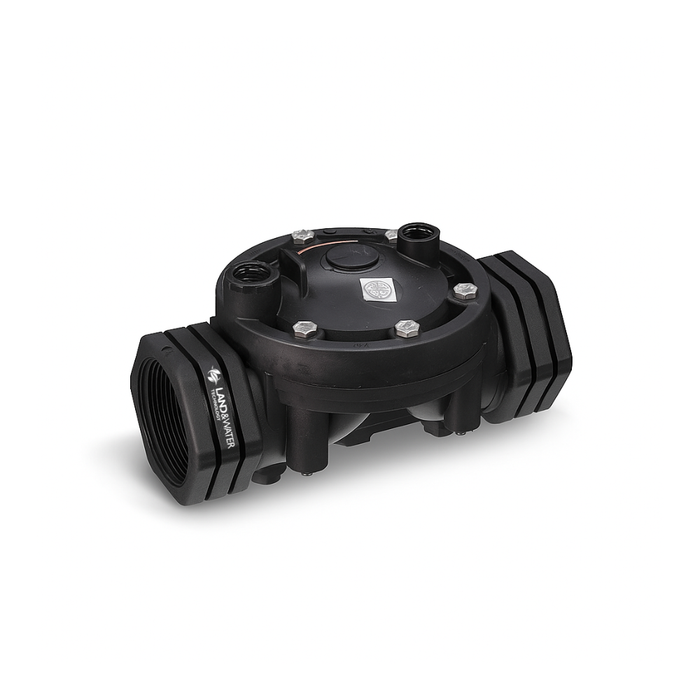

Netafim Dorot S75 Series Plastic Basic Hydraulic Valves

Series 75 plastic valves are designed to control irrigation systems for crop fields, vineyards and orchards. This series boasts exceptional hydraulic characteristics enabling high flow rates, while operating at low head loss. A wide range of control functions allow designing and operating optimal irrigation networks.

BENEFITS

• Outstanding Performances: High flow capacity and very low head losses achieved by a flexible diaphragm that provides a wide water passage throughout the valve’s hydrodynamic body.
• Ultimate Durability: Long life and easy inline maintenance accomplished by structural simplicity and high-quality corrosion-free materials.
• Extremely Versatile: Gal plastic valves are available with full selection of control functions and variousend connections

TECHNICAL SPECIFICATIONS

• Maximum pressure – 10 bar (145 psi)
• Minimum recommended flow – 1 m3/h (5 gpm)
• Minimum operating pressure – 0.4 bar (6 psi)
• Maximum operating temperature – 70°C (160°F)
