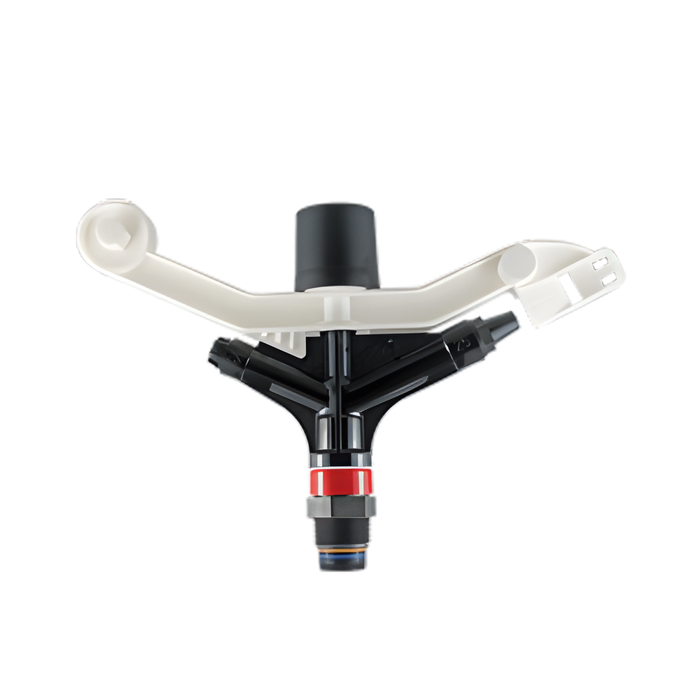

Senninger 70 Series Full Circle 25mm Male Plastic 25° Trajectory Impact Sprinkler with Double Nozzle

The Senninger 70 Series Full Circle 25 mm Male Plastic Impact Sprinkler is designed for high-flow agricultural irrigation systems requiring long throw distances and uniform water distribution. Built for performance and durability, this large-coverage sprinkler delivers exceptional results under operating pressures of 40 to 70 psi (2.76 – 4.83 bar), with flow rates ranging from 8.66 to 39.1 gpm (1967 to 8881 L/h). Its 25° trajectory provides a balanced combination of reach and droplet size, ensuring even coverage across wide fields with reduced wind drift.

Featuring a double-nozzle configuration (main range + spreader nozzle), the Senninger 70 Series achieves superior droplet uniformity and efficient overlap between sprinklers. It distributes water at higher flows than the 30, 40, or 50 Series models while maintaining Senninger’s renowned reliability and consistency. The impact-drive mechanism delivers smooth, full-circle rotation and consistent water application, while the built-in hex wrench and Hand-Tight Nozzle™ system make in-field maintenance quick and tool-free.

Constructed from high-grade, UV-stabilised engineering polymer, the 70 Series outlasts traditional brass sprinklers while being lighter, more corrosion-resistant, and cost-effective. Its precision-moulded colour-coded nozzles — #14 (7/32" Turquoise), #16 (1/4" Orange), #18 (9/32" Brown), #20 (5/16" Black), #22 (11/32" White), and #24 (3/8" Blue) — provide flexibility to match system flow and coverage needs.

FEATURES

• Full-circle sprinkler with smooth, even 360° rotation
• 25° trajectory for extended throw and effective large-area coverage
• Dual-nozzle design (range + spreader) for superior uniformity
• Flow range: 8.66 – 39.1 gpm (1967 – 8881 L/h)
• Operates efficiently between 40 – 70 psi (2.76 – 4.83 bar)
• Built-in hex wrench for quick, in-field servicing
• Hand-Tight Nozzle™ system — no tools required for cleaning or replacement
• UV-stabilised, corrosion-proof polymer body with stainless-steel drive components
• Outlasts and costs less than comparable brass sprinklers
• BSPT connection option available
• Two-year warranty on materials, workmanship, and performance

SPECIFICATIONS

• Brand: Senninger
• Series: 70 Series
• Type: Full Circle Impact Sprinkler with Double Nozzles
• Connection: 25 mm (1") Male BSPT
• Nozzle Options: #14 (Turquoise), #16 (Orange), #18 (Brown), #20 (Black), #22 (White), #24 (Blue)
• Flow Range: 8.66 – 39.1 gpm (1967 – 8881 L/h)
• Pressure Range: 40 – 70 psi (2.76 – 4.83 bar)
• Trajectory Angle: 25°
• Material: UV-stabilised engineering-grade plastic
• Rotation: Full Circle (360°)
• Recommended Riser Height: ≥ 1.5 ft (0.46 m)
• Warranty: 2 years

APPLICATIONS

• Broad-acre agricultural irrigation (field crops, sugarcane, cotton, pasture)
• Orchards, vineyards, and under-tree irrigation
• Turf and large landscape irrigation
• Cooling, dust suppression, and environmental control systems
