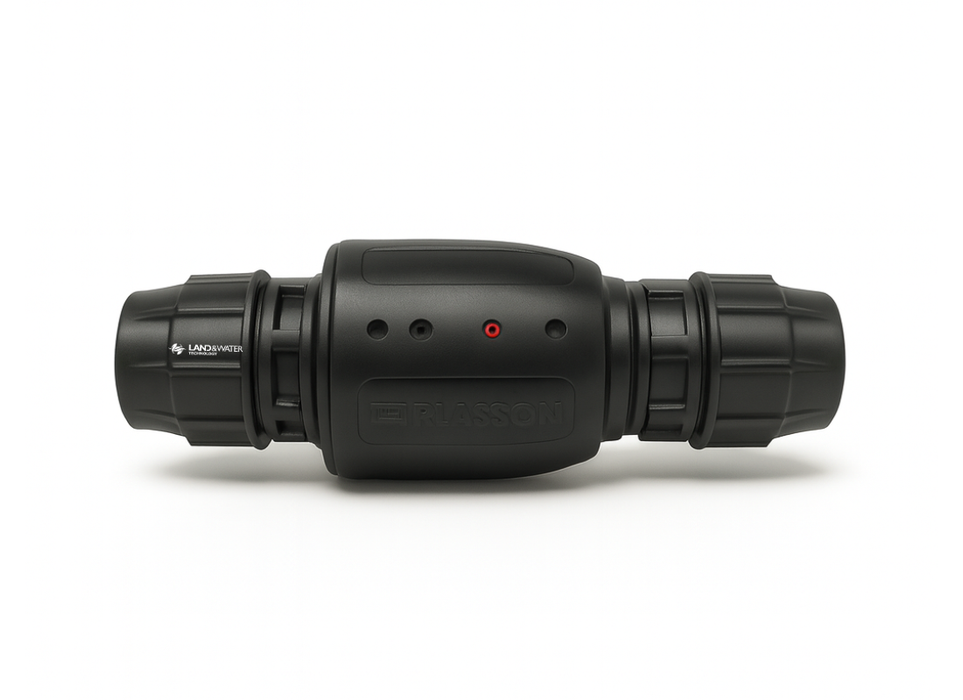

Plasson Metric Fixed Ratio Pressure Reducing Valve for Blueline Poly Pipe

The Plasson PRV for Blueline Compression Fittings features advanced fixed ratio technology, ensuring reliable and precise pressure regulation for industrial use. It maintains a consistent downstream pressure proportional to the inlet pressure, making it ideal for critical systems that require strict ratios for operational stability and equipment protection.

For the Plasson fixed pressure reducing valve, a "2:1" ratio means that for every 2 units of pressure coming in, the valve will output 1 unit of pressure, while a "3:1" ratio means that for every 3 units of pressure coming in, the valve will only output 1 unit of pressure essentially, the 3:1 ratio reduces the pressure more significantly than the 2:1 ratio.

FEATURES

• Lightweight (approx. 15kg) for fast and easy installation
• Stable pressure control over the full flow and pressure range
• Corrosion resistant plastic body and internal parts
• Long service life even in abrasive fluids (sand, stones) due to an innovative hydraulic design and sealed moving components
• Assembled directly to PE pipe with integral Plasson compression fittings
• Can be installed either vertically or horizontally
• Maintenance free
• Unbox & install

SPECIFICATIONS

• Pressure rating: 16 bar
• Working pressure range: 2-16 bar
• Flow range - 63mm: 0-14m3/hour with capacity of 30m3/hour; 110mm: nominal 55m3/hour,maximum 80m3/hour
• Body: Polypropylene PPB
• Seals: NBR
• Diaphragm: Reinforced Neoprene
• Available in pressure reduction ratios - 2:1 or 3:1
• Connections: Plasson metric mine safe fittings 63 OD & 110 OD
• Optional: Threaded male BSP (63 OD) and shouldered (110 OD on request)
