Netafim NetBow Pot Irrigation 8 Outlet Dripper Ring

Precision Pot Irrigation for High-Value Crops

The Netafim NetBow™ is a revolutionary 8-outlet dripper arc engineered to deliver even and reliable water and nutrient distribution throughout the entire substrate volume of 20–40L containers. Ideal for high-value soilless crops such as blueberries, cannabis, and nursery plants, the NetBow™ guarantees maximum root-zone coverage from top to bottom – including the crucial upper layer where root development is vital.

NetBow™ is pre-configured with eight integrated Typhoon™ outlets delivering a uniform flow when paired with your choice of PCJ, Uniram™, or other hub drippers. Each outlet maintains optimal wetting patterns and clog resistance, ensuring fewer blockages and reduced maintenance season after season.

With its plug-and-play design, lightweight frame, and press-fit or barb inlet flexibility, NetBow™ dramatically reduces labour and installation time while boosting irrigation precision.

FEATURES

• Uniform 360° Coverage: Eight evenly spaced outlets ensure full top-down irrigation with no dry spots.
• Clog-Resistant Design: Typhoon™ technology with large filtration area minimizes clogging risk.
• Easy Installation: Pre-formed ring fits perfectly over 20–40L containers and stakes securely into the soil.
• Flexible Compatibility: Connects to PCJ, Uniram™, and DripNet PC hub drippers using micro-tube and adapters.
• UV and Chemical Resistant: Made from durable, light grey UV-stable polymers for extended field life.
• Improved ROI: Boosts crop uniformity and reduces disease risks while cutting down labour and setup costs.

SPECIFICATIONS

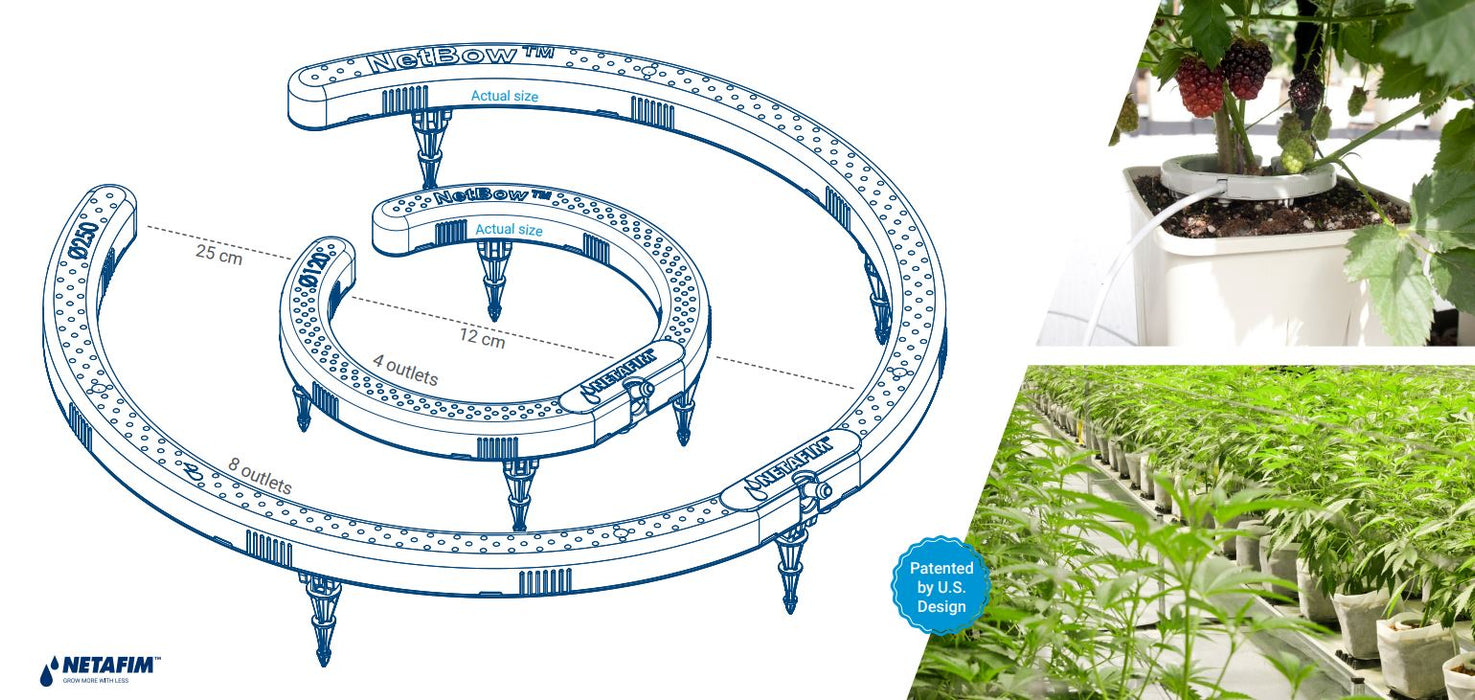

• Diameter: 250mm
• Outlets: 8 integrated drip points
• Flow rate per outlet: 1.2/2.0/3.0/4.0 L/h @ 1.0 bar (flow determined by hub dripper)
• Recommended container size: 10–60 litres
• Material: UV- and chemical-resistant plastic
• Colour: Light grey for optimal light reflection

BENEFITS

• Uniform water distribution, top to bottom with no blind spots, thanks to surface 8 dripping outlets
• High clogging resistance - NetBow™ features 8 of Netafim’s high clogging-resistant Typhoon drippers that guarantees lower risk of clogging.
• User-friendly device simplifies installation and operation – with NetBow™ is easy to install & connect to micro-tubes, and placement in the container is easy.
• Options for connecting to diverse hub drippers like PCJ, PC, or Uniram™ with Dr. Zip

VALUE

• Exceptional uniformity
• Optimal root zone development
• Less diseases
• Reduced labor
• Better ROI (maximized profit)

INSTALLATION

• Cut a section of 3X5mm diameter micro-tube at the required length to reach conveniently from the hub dripper to the NetBow™ inlet. Using SSPE (super soft polyethylene) micro-tube is recomended for ease of installation (pre-cut SSPE micro-tube sections of the required length with the required fittings can be ordered).
• Connect it to the barb connector of the hub dripper. If the hub dripper is fitted with a Press-Fit connector, use a Press-Fit to barb adapter
• Insert the 5 spikes into the 5 holes on the NetBow™ underside

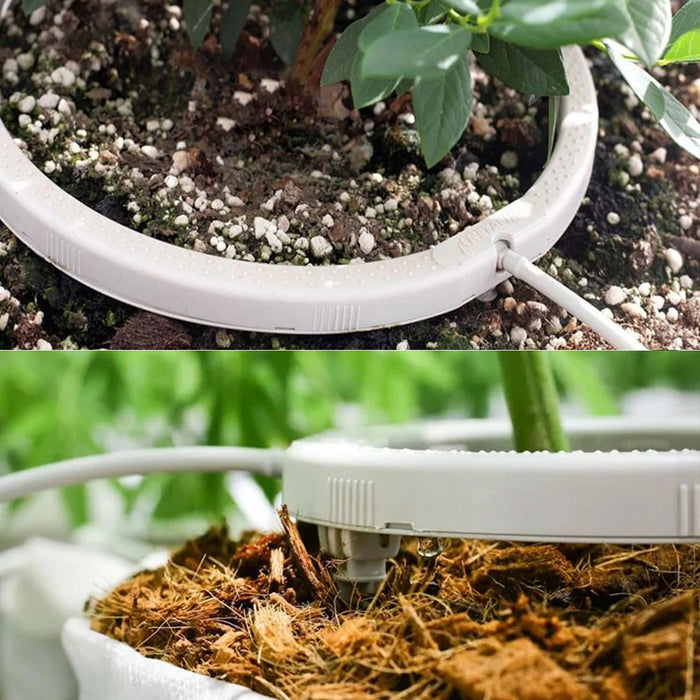

• Place the NetBow™ on the the substrate surface in the pot, surrounding the plant location.

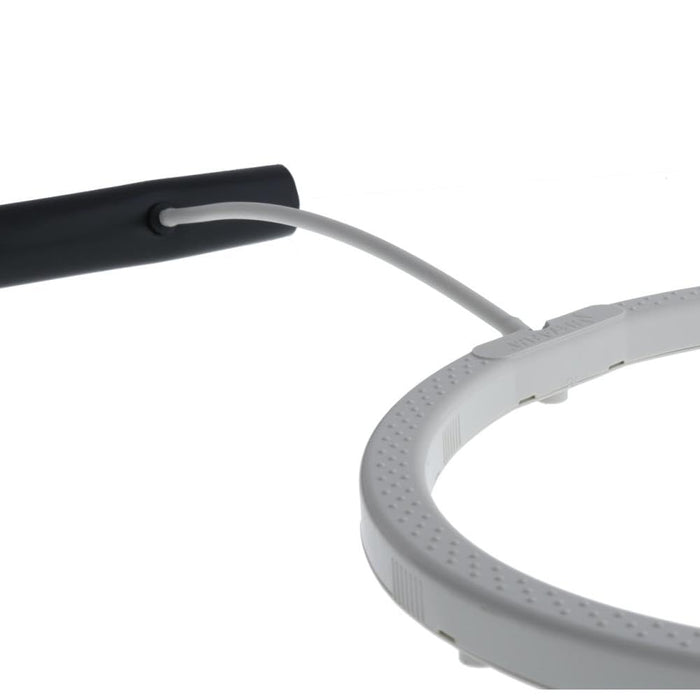

• Connect the free side of the micro-tube to the NetBow™ barb inlet. For NetBow™ with Press-Fit inlet use a straight Press-Fit to barb adaptor
• Insert the NetBow™ spikes into the soil so that its underside is in contact with the soil.
• Adjust the NetBow™ inlet T orientation (up/down) as to allow the optimal micro-tube position. (Make sure the micro-tube is not kinked, pinched or stretched)
