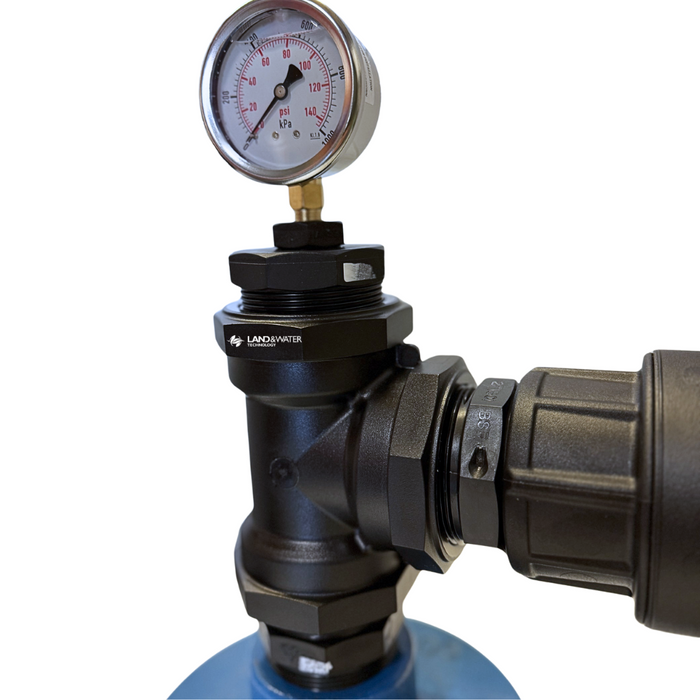

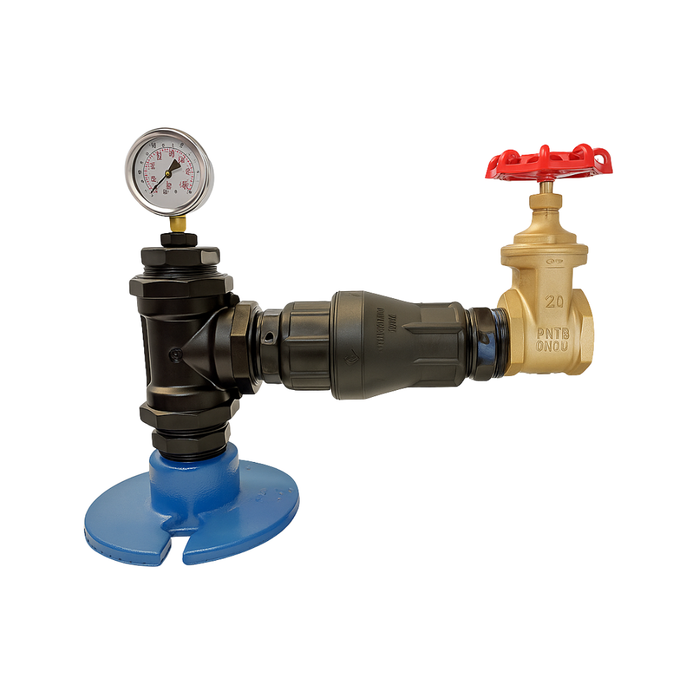

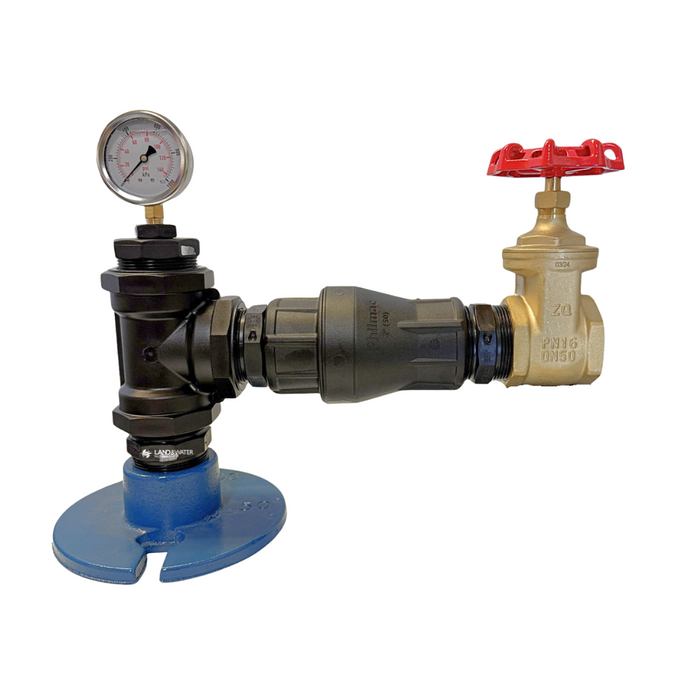

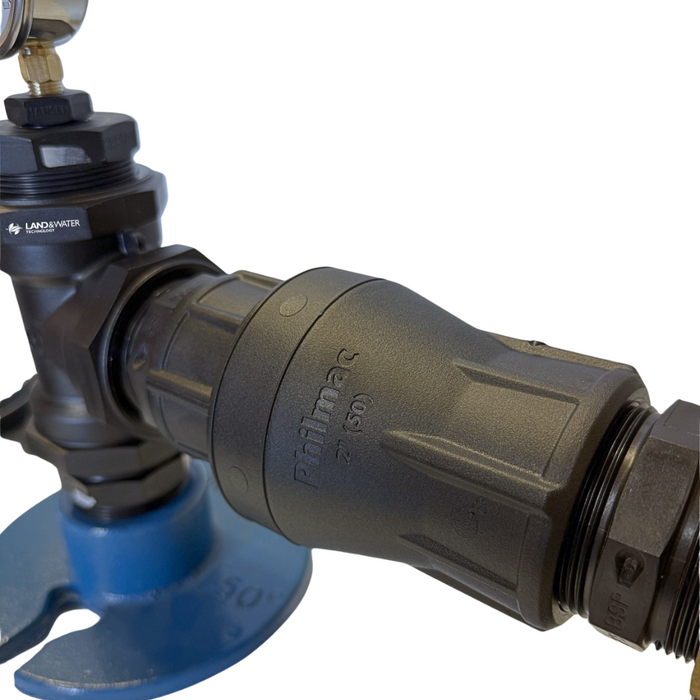

Poly Submersible Bore Pump Headworks Kit with Gauge, Check Valve & Gate Valve

Headworks are a vital part of every bore pump installation, ensuring your submersible pump runs correctly, maintains proper backpressure, and stays within its performance curve to prevent damage or burnout.

The Poly Submersible Bore Pump Headworks Kit is a lightweight yet durable option, using high-quality Philmac poly fittings combined with a cast iron Grundfos-style bore cap. It’s ideal for medium to high-flow bore systems where reliability, ease of installation, and long service life are essential.

The kit features a 1000kPa pressure gauge for accurate monitoring, a Philmac non-return valve to protect against backflow, and a brass gate valve for safe system isolation. Built for Australian conditions, this kit balances strength, affordability, and ease of use.

WHY INSTALL HEADWORKS

• Essential to maintain correct backpressure on your pump
• Ensures the pump runs on its performance curve for efficiency and longevity
• Protects against pump burnout, cavitation, and inefficiency
• Allows easy pressure monitoring and system isolation

FEATURES

• High-quality Philmac poly fittings for strength and corrosion resistance
• Brass gate valve for durability and reliable shutoff
• 1000kPa pressure gauge for precise system monitoring
• Lightweight, easy-to-install design
• Designed for long-term outdoor use in Australian conditions

KIT INCLUDES

• 1 × Cast Iron Grundfos Bore Cap
• 3 × Philmac Poly Nipples
• 1 × Philmac Poly Tee
• 1 × Philmac Poly Reducing Bush (to 8mm)
• 1 × 1000kPa Pressure Gauge
• 1 × Philmac Non-Return Valve (Check Valve)
• 1 × Brass Gate Valve

AVAILABLE SIZES

• 32mm
• 40mm
• 50mm
