9010 Series Submersible Pump Float Switch for Wastewater/Water with Neoprene Cable

The Matelec 9010 is a high-buoyancy float switch designed for reliable automatic control of submersible wastewater and sewage pumps. Built with robust ABS housing and a smooth, anti-stick surface, it’s engineered to reduce fouling and provide consistent operation in challenging environments like sewage pits, greywater tanks, and effluent systems.

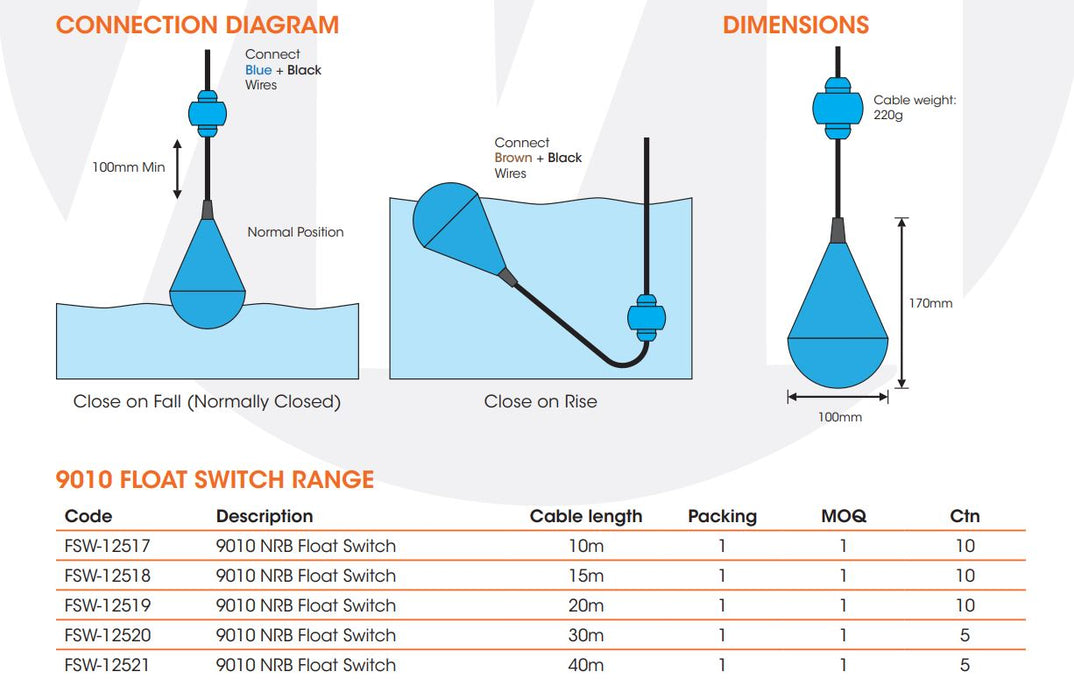

This float switch allows you to automate pump activation and shut-off based on water level, preventing tank overflows or dry-running. Whether you want the pump to start when the tank is full or stop when empty, the Matelec 9010 gives you flexibility—simply set the float orientation and anchor cable to your desired switching depth.

With its 10 A switching capacity and IP68 protection rating (up to 20 m depth), this float switch is ideal for heavy-duty residential, commercial, and agricultural wastewater applications.

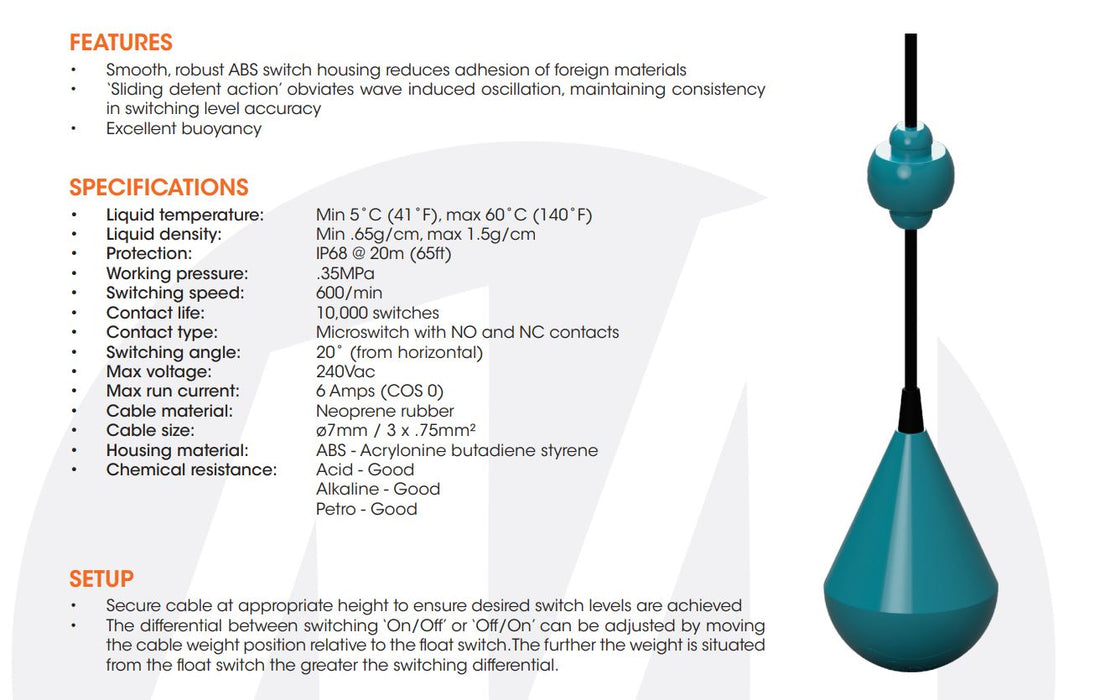

FEATURES

• High Buoyancy Design – Ideal for sewage and effluent with strong lift response
• ABS Housing – Smooth, durable surface resists buildup of grease and solids
• Sliding Detent Mechanism – Prevents wave-induced chattering and false signals
• Flexible Mounting – Can be configured to activate on rising or falling water level
• Safe & Durable – IP68 rated to 20 m submersion depth
• Neoprene Cable – Tough, chemical-resistant cable for wastewater environments

TECHNICAL SPECIFICATIONS

• Max Voltage: 250 VAC
• Max Current: 10 A
• Operating Temp: 0 – 60 °C
• Enclosure Rating: IP68 @ 20 m
• Cable Type: Neoprene
• Housing Material: ABS
• Application: Sewage, wastewater, effluent, greywater, stormwater
