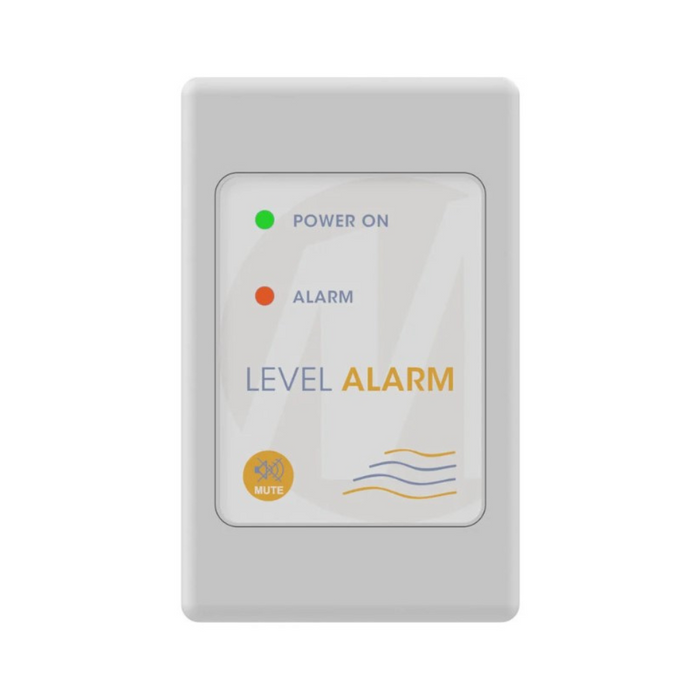

Matelec FPC-12656 Flush Mount Set-Point Level Alarm with Audible Buzzer & LED Indicators

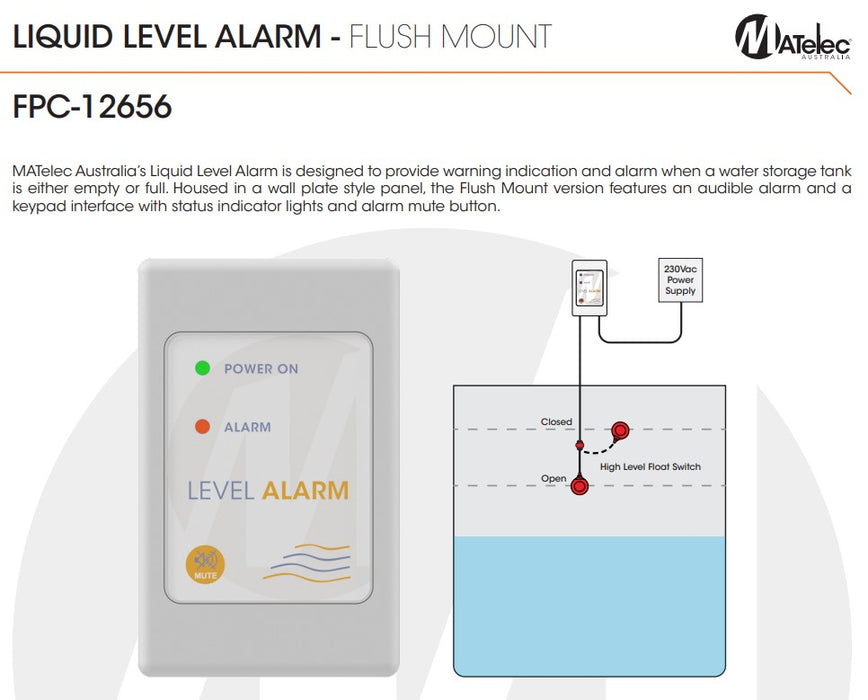

The Matelec FPC-12656 Flush Mount Set-Point Level Alarm is a compact, wall plate–style monitoring panel designed to provide clear visual and audible alerts when a water storage tank reaches empty or full condition. Ideal for installations where space or aesthetics are important, this unit offers professional-grade alarm functionality in a discreet flush-mount format.

The panel features a loud buzzer, LED status indicators for power and alarm state, and a keypad interface with a mute/reset/test button. For convenience, the buzzer will auto-silence after 5 minutes if not muted, then briefly sound every 5 minutes (continuous mode option available). Additional features include a mute reset function—which automatically re-enables the alarm after 12 hours—and a silent mode, allowing the buzzer to be temporarily disabled for 12 hours in situations such as persistent high level due to pump cycling issues.

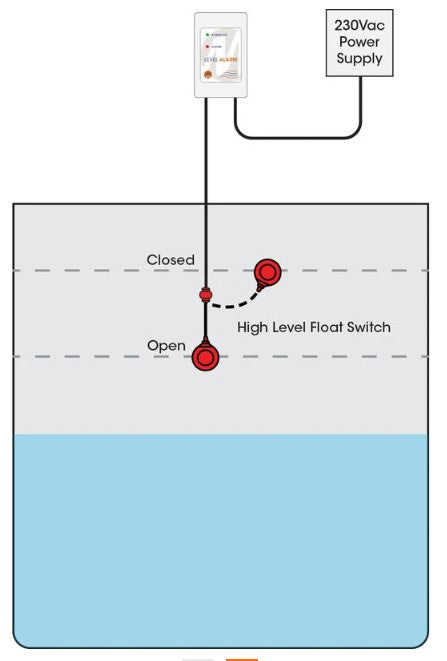

With safe low-voltage 12 VDC input from a float switch and DIP switch–selectable normally open or normally closed alarm configuration, the FPC-12656 offers flexible integration for residential, commercial, and industrial water management systems.

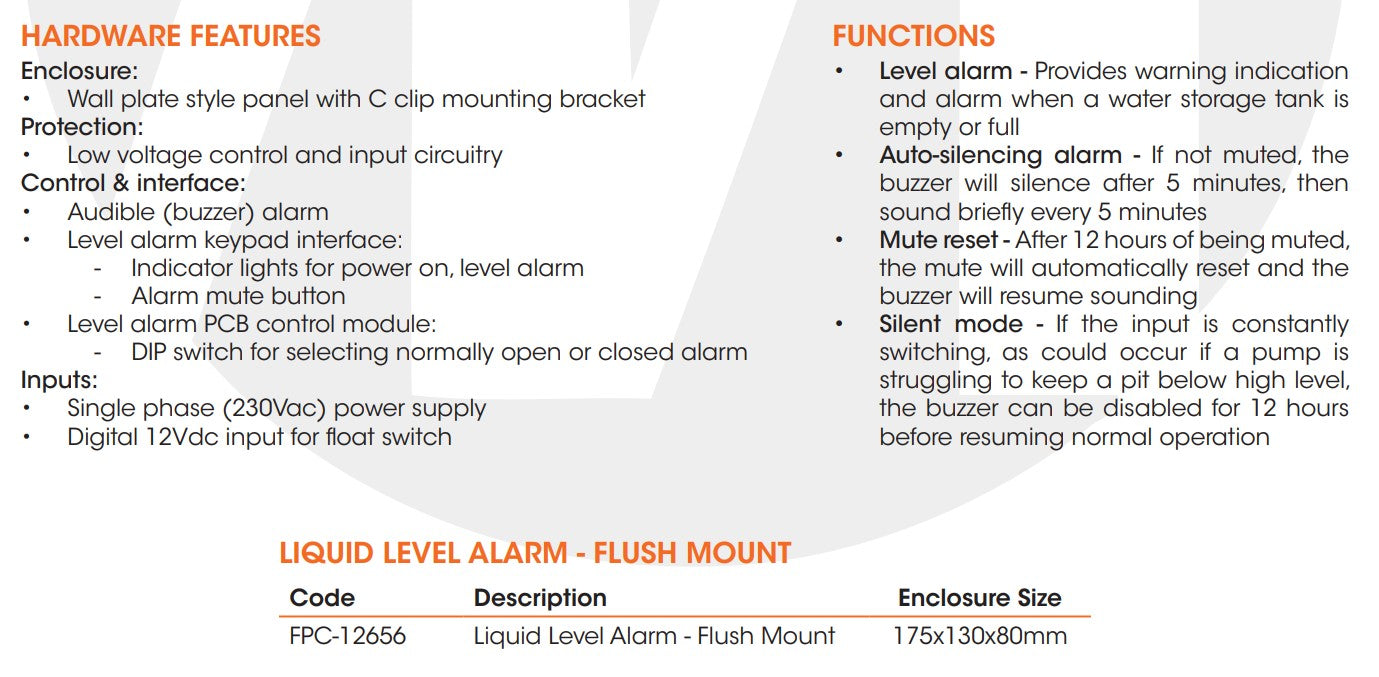

FEATURES

• Compact Flush-Mount Design – Wall plate–style panel with C-clip mounting bracket.
• Clear Alarm Notification – Loud buzzer and LED status indicators for power and alarm state.
• Auto-Silencing Logic – Mutes after 5 minutes, then chirps every 5 minutes if not reset.
• Mute Reset Function – Automatically re-enables alarm after 12 hours of mute.
• Silent Mode – Temporarily disables buzzer for 12 hours in high-switching situations.
• Flexible Input Configuration – DIP switch to select normally open or normally closed alarm mode.
• Safe Low Voltage Control – 12 VDC float switch input.

TECHNICAL SPECIFICATIONS

• Model: FPC-12656
• Enclosure Size: 175 × 130 × 80 mm
• Enclosure Type: Flush mount, wall plate–style with C-clip bracket
• Power Supply: 230 VAC (single-phase)
• Inputs: Digital 12 VDC input from float switch
• Visual Alerts: LED indicators for power and alarm status
• Audible Alerts: Buzzer with mute/reset/test
• Enclosure Rating: IP-rated wall mount design for indoor applications
