Matelec FPC-12664 Deluxe High & Low Set-Point Alarm with Audible Buzzer & Strobe with IP54 Enclosure

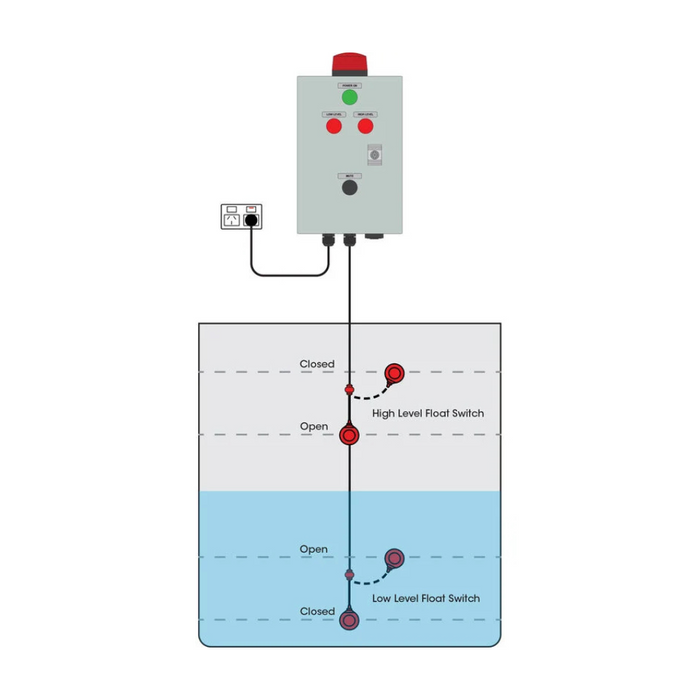

The Matelec FPC-12664 Deluxe High & Low Set-Point Alarm is a dual-level monitoring system designed to provide clear visual and audible alerts when a water storage tank reaches either empty or full condition. Ideal for applications requiring both high and low-level detection, it delivers reliable performance in demanding environments.

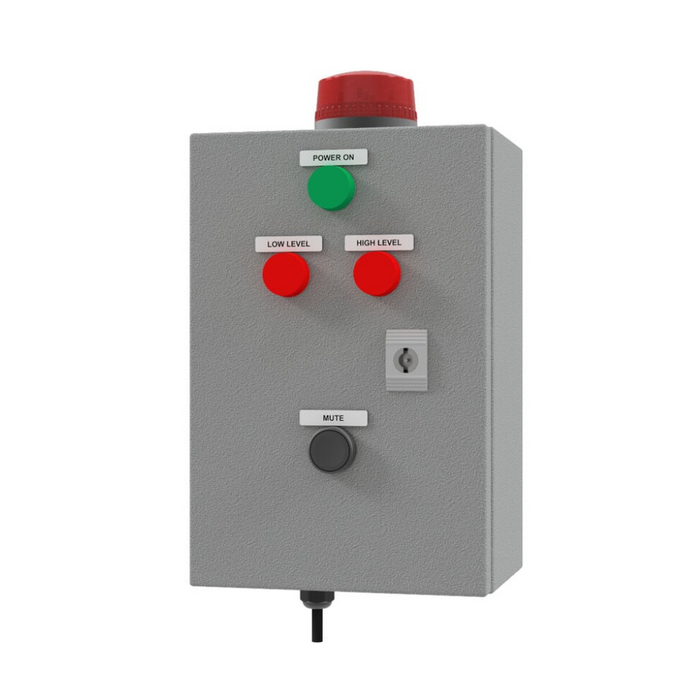

Housed in a robust IP54-rated powder-coated mild steel enclosure with a removable gland plate, the alarm panel features indicator lights for power, high level, and low level, plus a bright strobe and loud buzzer for immediate notification. A tactile mute/reset/test button allows users to acknowledge alarms, run system checks, or reset after the fault condition is cleared.

By default, the buzzer will automatically silence after 5 minutes if not muted, then briefly sound every 5 minutes to maintain awareness (continuous mode can be enabled if required). Separate BMS volt-free relay outputs are provided for both high and low level alarms, enabling integration with remote monitoring systems.

FEATURES

• Dual-Level Monitoring – Alerts when tank is full (high level) or empty (low level).
• High-Visibility Alerts – Bright strobe light and LED status indicators.
• Audible Alarm – Loud buzzer with mute/reset/test function and auto-silencing logic.
• Robust Construction – IP54-rated powder-coated steel enclosure with removable gland plate.
• Integration Ready – BMS volt-free NO/NC outputs for high and low level alarms.
• Safe Low Voltage Inputs – Accepts 12 VAC signals from high and low level float switches.
• Easy Installation – Supplied with 10 A, 3-pin, 1.5 m power lead.

TECHNICAL SPECIFICATIONS

• Model: FPC-12664
• Enclosure Size: 300 × 200 × 150 mm
• Power Supply: 230 VAC (single-phase)
• Inputs: 2 × 12 VAC digital inputs for high and low level float switches
• Outputs: Volt-free relay outputs for high and low level alarms (NO & NC)
• Enclosure Rating: IP54 mild steel
• Included: 10 A, 3-pin, 1.5 m power supply lead
