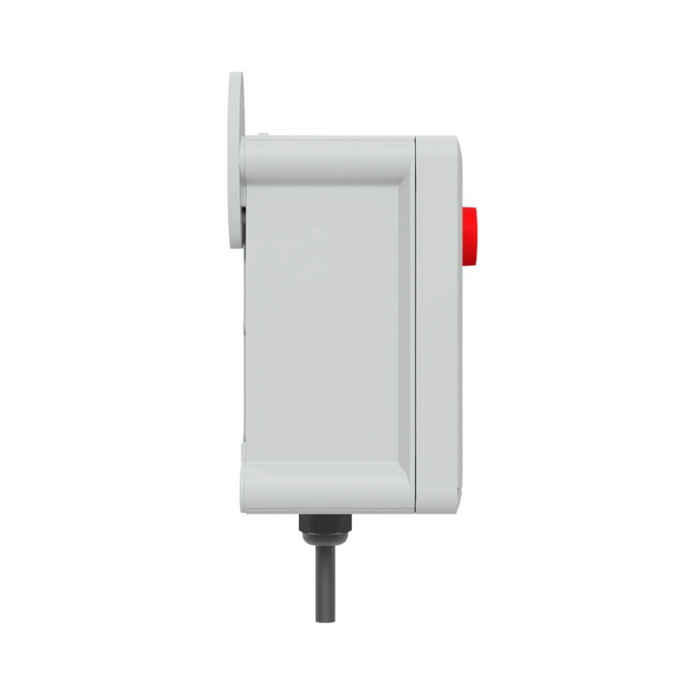

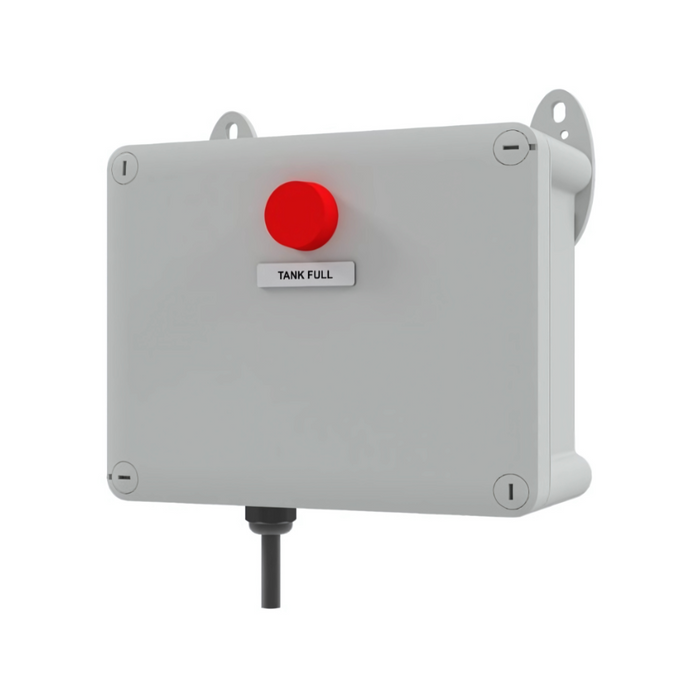

Matelec Tank Fill Pump Controller for Automatic Water Level Maintenance with 10m Float Switch

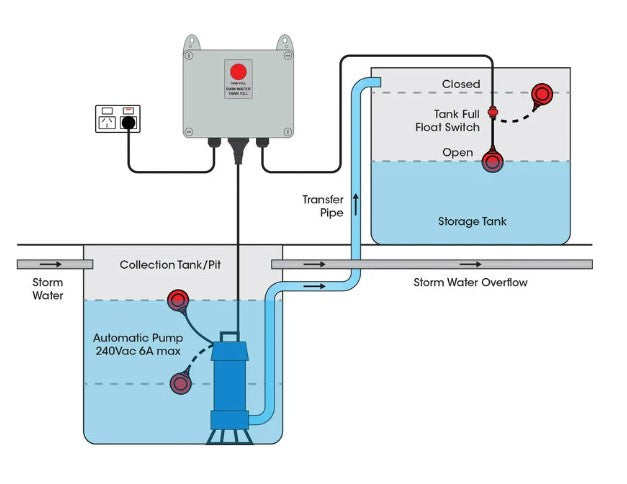

The Matelec FPC-11005 Tank Fill Pump Controller is a reliable, easy-to-install solution for automatically maintaining water levels in tanks, reservoirs, and other storage vessels. Designed to work in conjunction with an automatic pump, it transfers water from a collection pit or secondary source into a storage tank and shuts off power to the pump when the tank reaches full capacity.

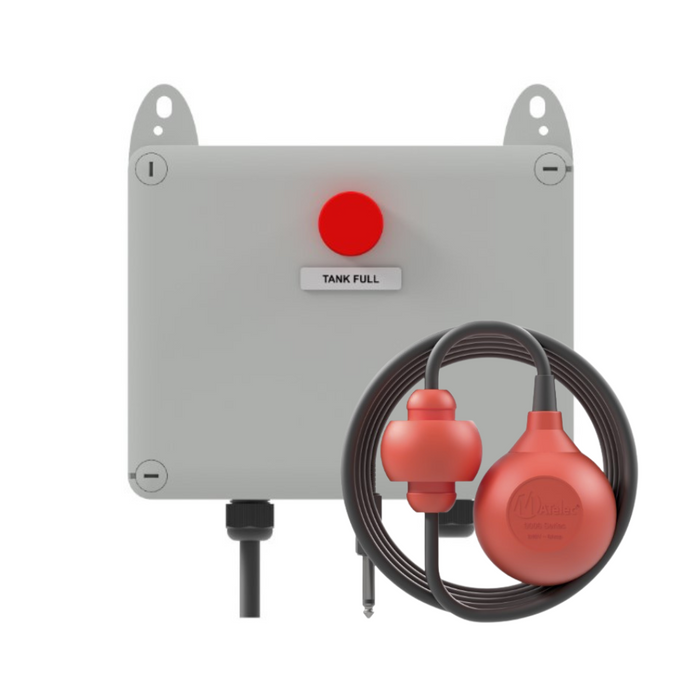

The included 9006 float switch detects high-level conditions and signals the controller to cut power, preventing overflow. When the water level drops, the controller automatically restores power to the pump to resume filling. A tank full indicator light provides clear visual confirmation of the system status.

Built into a tough IP54-rated polycarbonate enclosure with mounting brackets, the FPC-11005 is suited for both indoor and outdoor use. It comes complete with a pre-wired power lead, GPO pump outlet, and 10 m float switch for quick plug-and-play setup.

FEATURES

• Automatic Pump Control – Powers the pump for tank filling and stops at full level.
• Overflow Prevention – High-level float switch deactivates pump to protect against overfilling.
• Clear Visual Status – LED indicator for “tank full” condition.
• Plug-and-Play Design – Includes power lead, GPO pump outlet, and float switch.
• Durable Build – IP54 polycarbonate enclosure for indoor or outdoor mounting.

TECHNICAL SPECIFICATIONS

• Model: FPC-11005 – Standard Tank Fill Pump Controller
• Enclosure: IP54-rated polycarbonate with mounting brackets, 200 × 160 × 95 mm
• Power Supply: 230 VAC single-phase
• Inputs: Digital 24 VAC from included float switch
• Outputs: GPO for automatic pump (6 A max)
• Included Components:
  • 10 A 3-pin 1.5 m power supply lead
  • 9006 float switch with 10 m cable
