Bianco Summit VMS10 Series 304ss Vertical Multistage Fixed Speed Packaged Pressure Pump Station (Max 200LPM)

by Bianco
PN: 812327
Original price $0
Original price $4,904.90 - Original price $4,904.90
Original price
Current price $4,904.90
$4,904.90 - $4,904.90
Current price $4,904.90

Bianco Summit VMS10 Series 304ss Vertical Multistage Fixed Speed Packaged Pressure Pump Station (Max 200LPM)

DOWNLOAD PRODUCT BROCHURE
DOWNLOAD CONTROL PANEL BROCHURE
DOWNLOAD PRESSURE TRANSDUCER BROCHURE

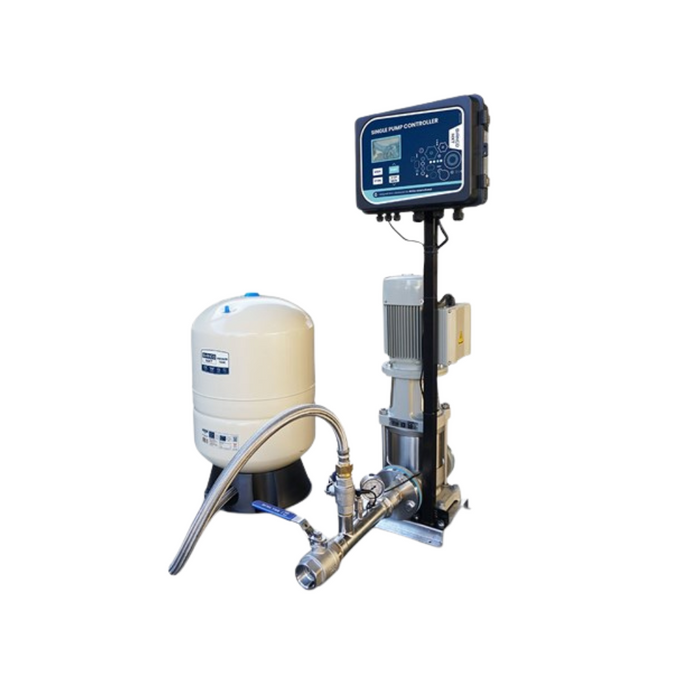

The Bianco Summit VMS10 Series Packaged Pressure Pump Station is a powerful and efficient fixed-speed system designed for large-scale water boosting in commercial, residential, and agricultural settings. With a maximum flow rate of 200 litres per minute, this station delivers consistent high-pressure performance, making it ideal for demanding water supply applications.

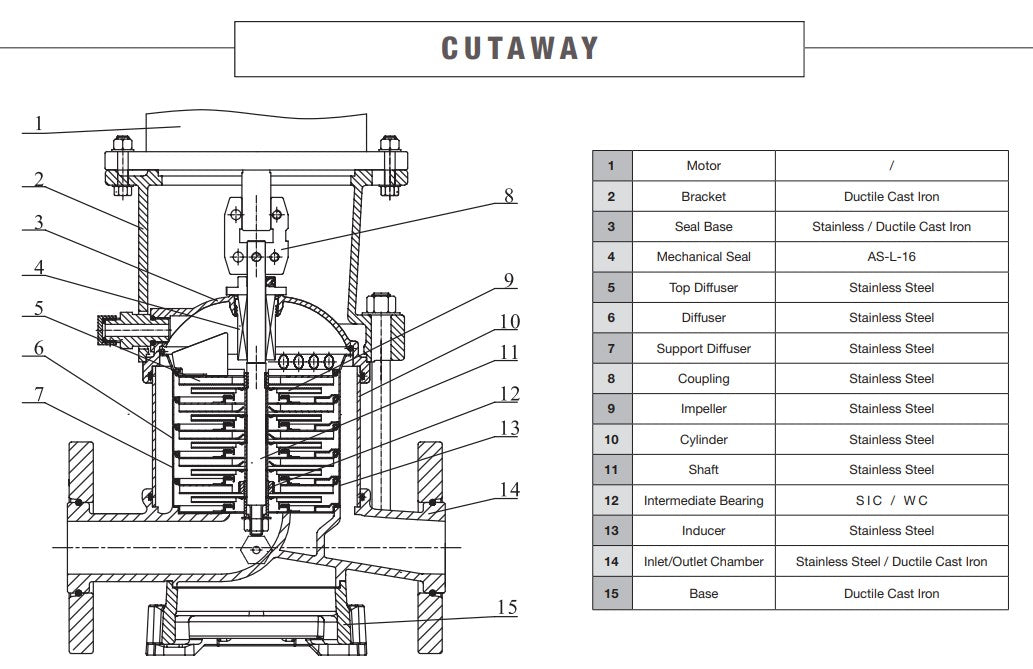

At the core of this system is the Bianco VMS10 vertical multistage pump, constructed from 304 stainless steel for superior corrosion resistance and long-term reliability. The system is supplied as a complete, pre-assembled unit mounted on a galvanised steel base and includes a stainless steel manifold, counter flanges, WaterMarked spring check valve, stainless steel isolation ball valves, a 30-bar pressure gauge, and a 10-bar pressure tank with 304 stainless steel isolating valve.

BiANCO NXT Summit Series Pressure Transducer Controlled units are engineered for intelligent, all-in-one pressure management. Using a 4–20mA pressure transducer connected to the BiANCO NXT SPC (Single Pump Controller), the system allows for precise digital pressure adjustment and advanced system protection, including dry run detection, over/under voltage protection, and anti-seize functionality.

Cost-effective, professional-grade, and easy to install, the VMS10 Packaged Pressure Pump Station is the ideal choice for high-volume, fixed-speed water pressure systems.

KIT INCLUDES:

  • VMS Pump
  • Galvanised single pump base
  • Manifold (304 Stainless Steel)
  • Stainless Steel Counter Flanges
  • Watermarked Spring Check Valve
  • 304 SS Pressure side isolation ball valve
  • 30 Bar Liquid Filled Pressure Gauge
  • BPT-18 10 Bar pressure tank with 304 SS 25mm isolating Ball Valve

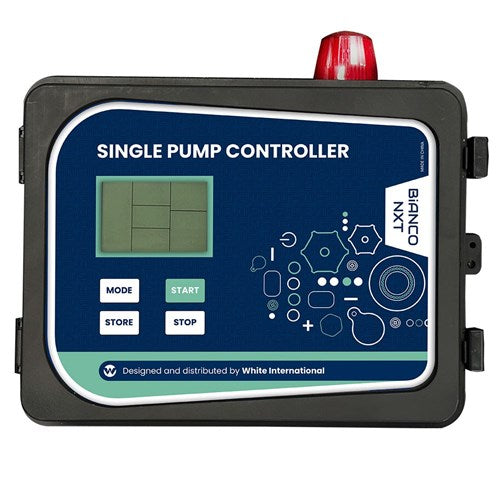

  • NXT SPC1-22 Control Panel
  • BIA VMS 10bar 4-20mA pressure transducer

FEATURES

  • All-in-one fixed-speed pressure boosting station
  • Premium 304 stainless steel pump, shaft, and impellers
  • Includes pressure transducer and NXT-SPC controller for precise digital pressure control
  • Galvanised mounting base, check valve, isolation valves, and pressure gauge included
  • 10-bar 80L stainless steel pressure tank with isolator
  • Removable coupling for easy motor maintenance
  • IP55-rated, fan-cooled motor with Class F insulation
  • Works in temperatures from -15°C to +120°C, up to 33 bar pressure

PROTECTION FUNCTIONS

  • Over voltage
  • Under voltage
  • Dry Run (under current)
  • Overall (over current)
  • Pump stall
  • Open phase protection
  • Pump 'Anti-seize' function (96hr default)

APPLICATIONS

  • Building and commercial water pressure boosting
  • Water supply systems for residential and multi-dwelling sites
  • Agricultural irrigation requiring consistent pressure
  • Light industrial water transfer
  • Pressure maintenance for tank and treatment systems
