Bianco Summit VMS10 Series 304ss Vertical Multistage Variable Speed Packaged Pump Station with NXT VFD Drive (Max 200LPM)

The Bianco Summit VMS10 Series Variable Speed Packaged Pump Station is a high-performance, digitally controlled water boosting system engineered for larger-scale commercial, residential, and agricultural applications. With a maximum flow rate of 200 litres per minute, this powerful station delivers constant pressure with outstanding energy efficiency and intelligent protection.

The system features the Bianco VMS10 vertical multistage pump, built from 304 stainless steel for maximum durability and corrosion resistance. It comes pre-assembled on a robust galvanised base and includes a stainless steel manifold, WaterMarked spring check valve, stainless steel isolation valve, 30-bar pressure gauge, and a 10-bar rated pressure tank with isolating valve for smooth pressure maintenance.

At the heart of the control system is the Bianco NXT DRIVE—a Variable Frequency Drive (VFD) specifically designed for precision pump management. With its full-colour touchscreen, intuitive interface, and setup wizard, the NXT DRIVE makes operation and fault diagnostics simple and accessible. A 4–20mA pressure transducer continuously monitors pressure, allowing the drive to adjust motor speed in real-time, ensuring consistent pressure while reducing energy consumption and mechanical stress.

Perfect for high-demand installations, this VFD pump station offers soft-start technology, fault protection, and multi-function connectivity for long-term reliability and ease of integration.

KIT INCLUDES

• VMS Pump
• NXT Drive (Variable Frequency Drive)
• Counter Flange (in DN25 to DN65)
• Fiber Gaskets to suit counter flanges
• Watermarked Spring Check Valve
• Manifold (304 Stainless Steel)
• Pressure Transducer
• 30 Bar Liquid Filled Pressure Gauge
• Galvanised Single/Double/Triple Base
• Ball Valve (304 Stainless Steel)
• Pressure Tank Included in Scope of Supply

FEATURES

• Complete variable speed pressure pump system
• NXT DRIVE with full-colour touchscreen and intuitive setup
• 4–20mA pressure transducer for accurate constant pressure control
• High-efficiency 304 stainless steel pump, shaft, and impellers
• Includes galvanised base, SS manifold, check valve, and isolation valves
• 10-bar stainless steel pressure tank with isolator
• VFD enables soft-start, energy saving, and system protection
• IP55-rated, fan-cooled motor with Class F insulation
• Operates in temperatures from -15°C to +120°C and pressures up to 33 bar

APPLICATIONS

• Variable speed pressure boosting for residential and commercial sites
• Water supply with stable pressure for irrigation systems
• Energy-efficient booster setups for multi-storey buildings
• Water transfer requiring constant pressure delivery
• Compact plant rooms or systems requiring VFD integration

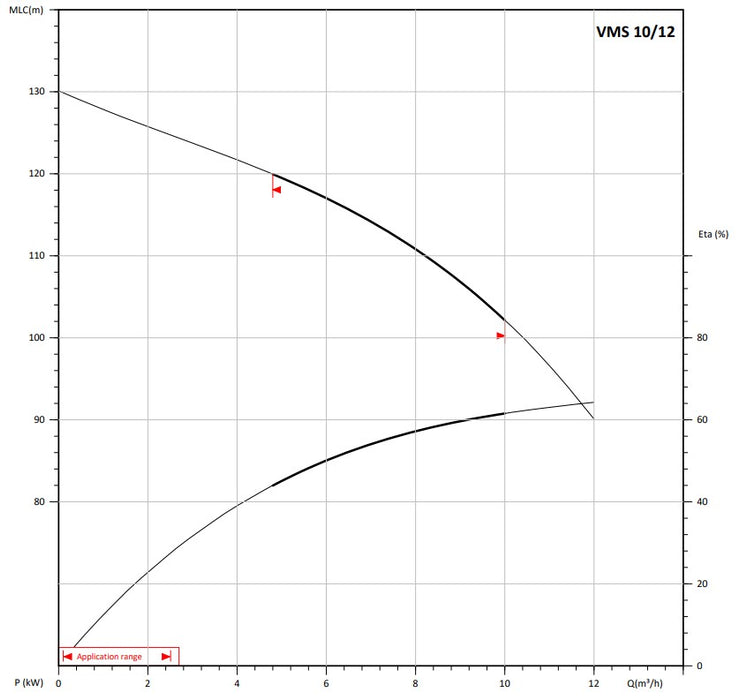

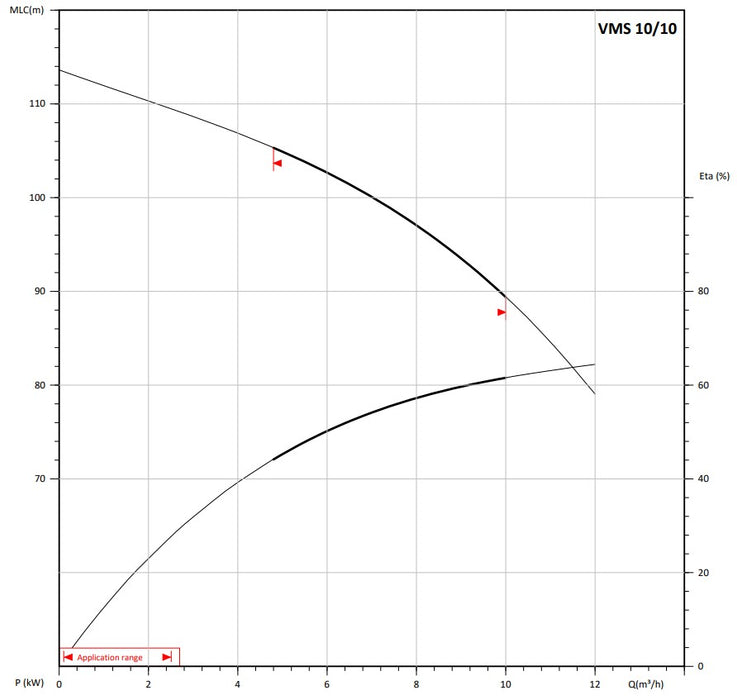

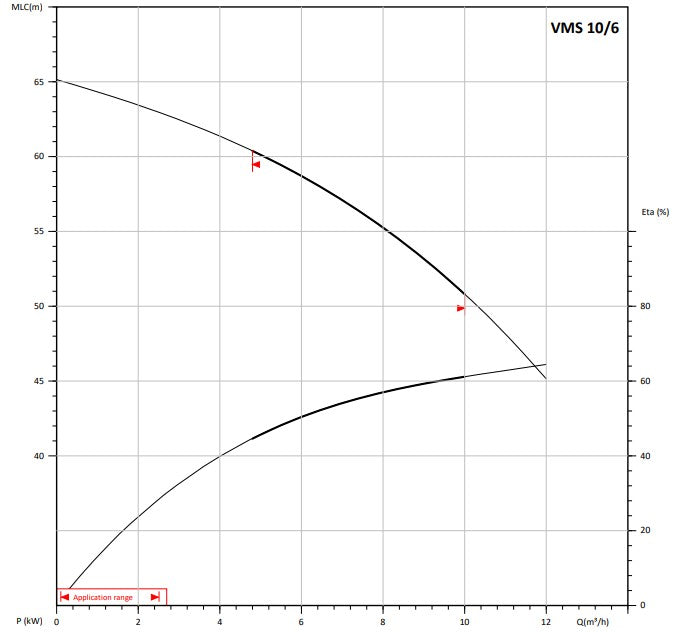

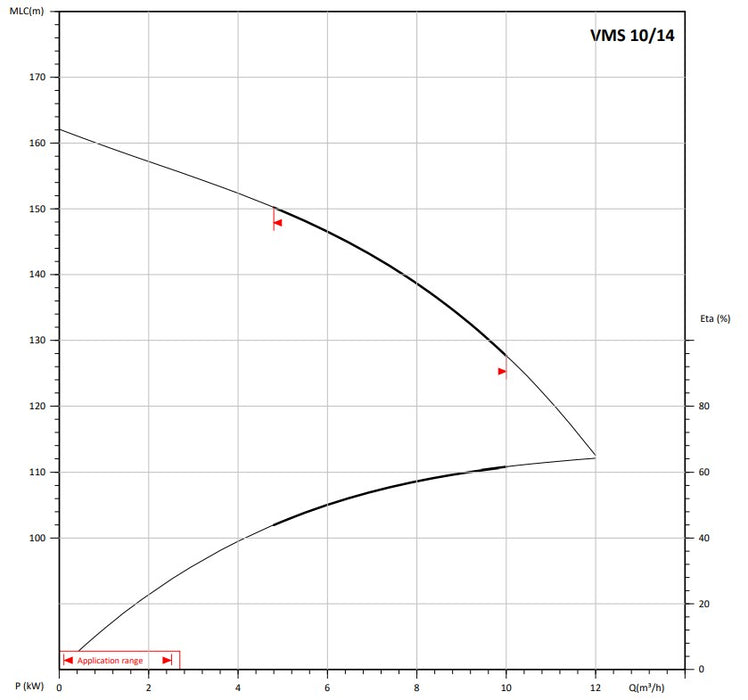

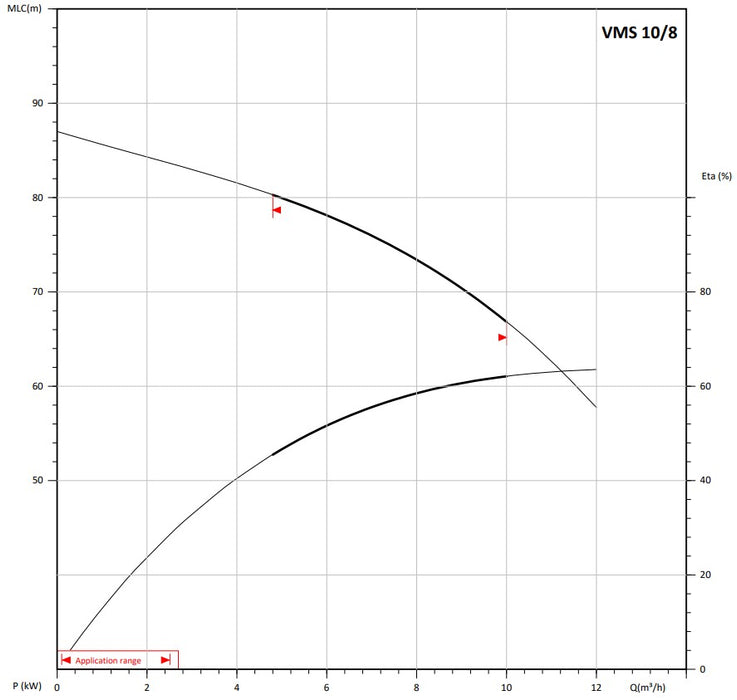

MODELS
