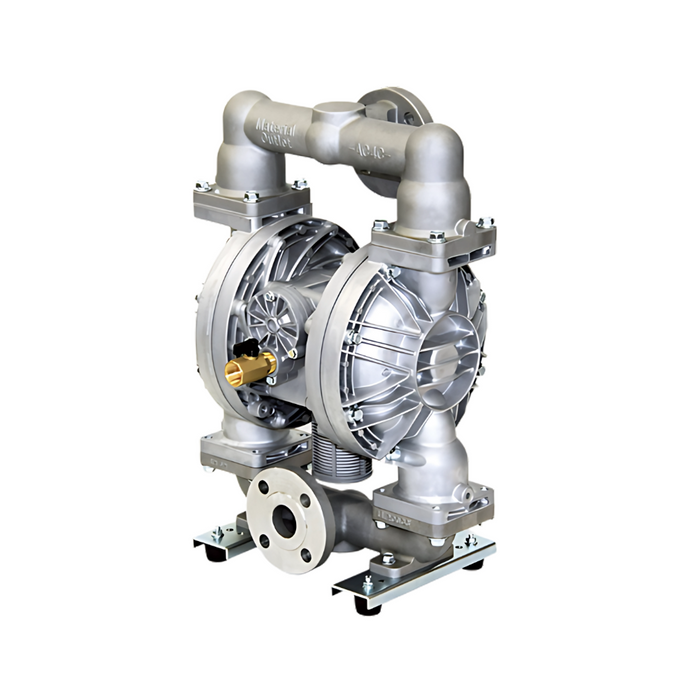

Macnaught DDP38AN 40mm High Flow Air Operated Diaphragm Pump (Max 600LPM)

The Macnaught DDP38AN is a powerful air-operated double diaphragm pump engineered for high-volume industrial fluid transfer. Designed as part of the Max Flow series, it delivers up to 600 LPM (158 GPM) while maintaining low air consumption. Ideal for handling slurries, high-viscosity, and abrasive fluids, it features a robust aluminium body with Nitrile Buna-N (NBR) diaphragms for excellent durability and chemical compatibility.

The DDP38AN’s center port and threaded flange manifold design offer flexible connection options, making installation easy in demanding industrial environments.

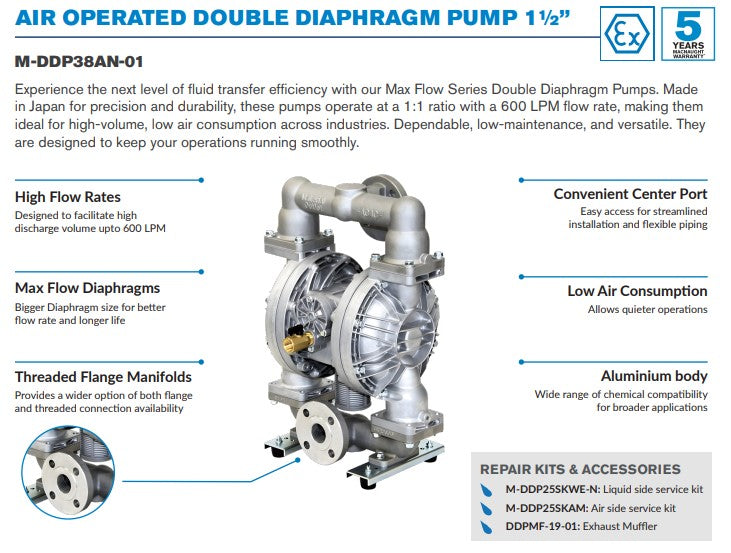

FEATURES

• High flow rate: Up to 600 LPM (158 GPM) for large-scale fluid transfer
• Handles slurries: Suitable for abrasive, high-viscosity fluids
• Dry-run safe: Operates without liquid without risk of damage
• Deadhead resistant: Withstands closed discharge without harm
• Self-priming: Eliminates the need for manual priming
• No inline lubrication required: Low maintenance and cost-effective
• Effortless maintenance: Accessible air motor for quick servicing
• Threaded flange manifolds: Allows both flange and threaded connections for versatile installation
• Center port design: Streamlines piping and installation

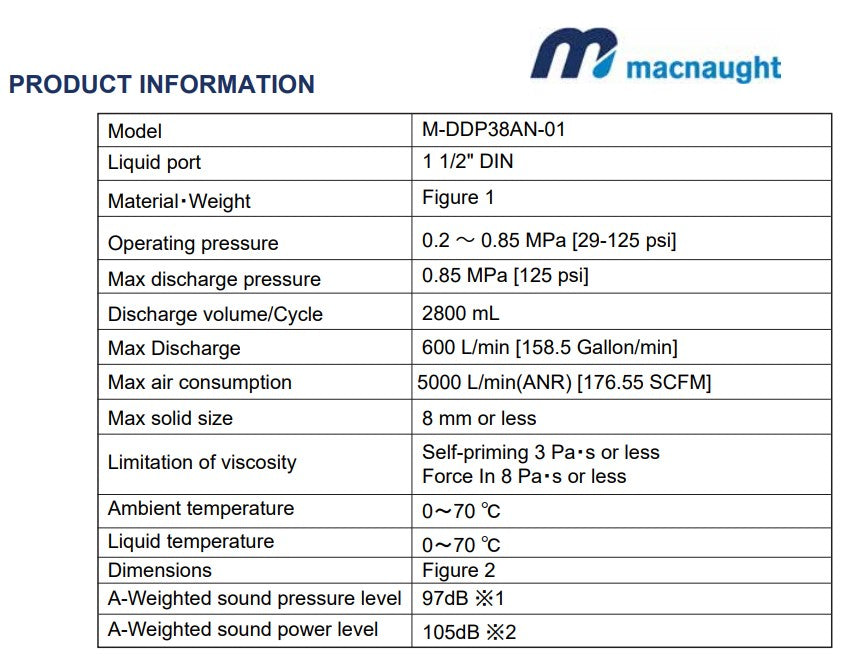

SPECIFICATIONS

• Max air pressure: 20–101 PSI (1.37–6.96 bar)
• Inlet / outlet: 1½" BSPT (F) / 1½" DIN
• Air inlet: 3/4" BSPT (F)

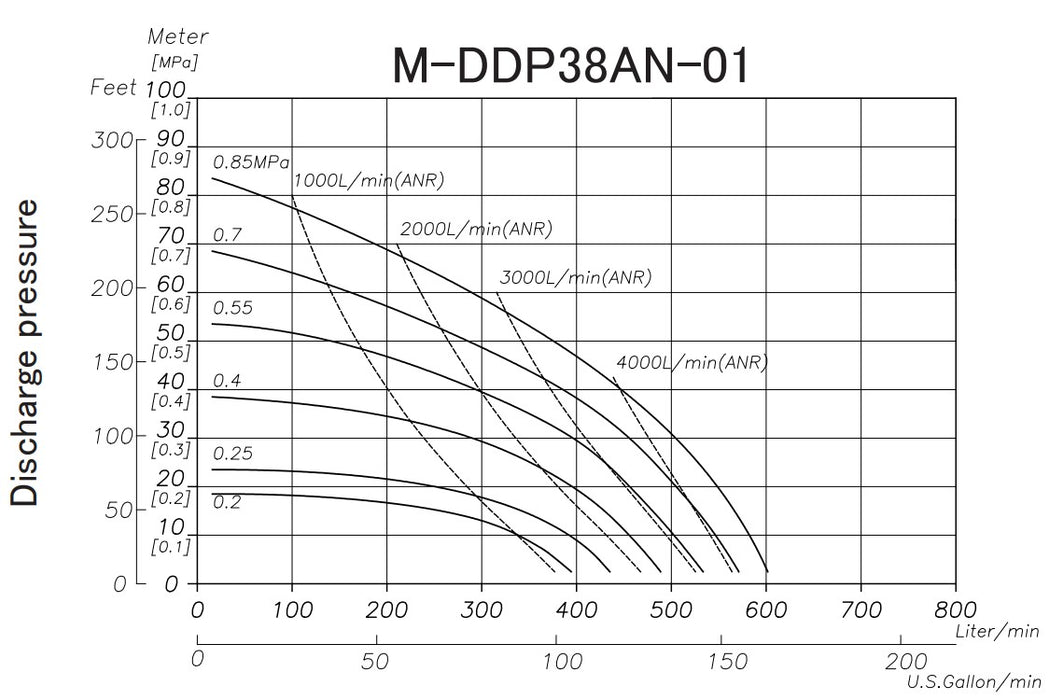

• Max flow rate: 600 LPM (158 GPM)
• Suction lift: 5.5 m (dry), 8 m (wet)
• Max solids handling: 8 mm

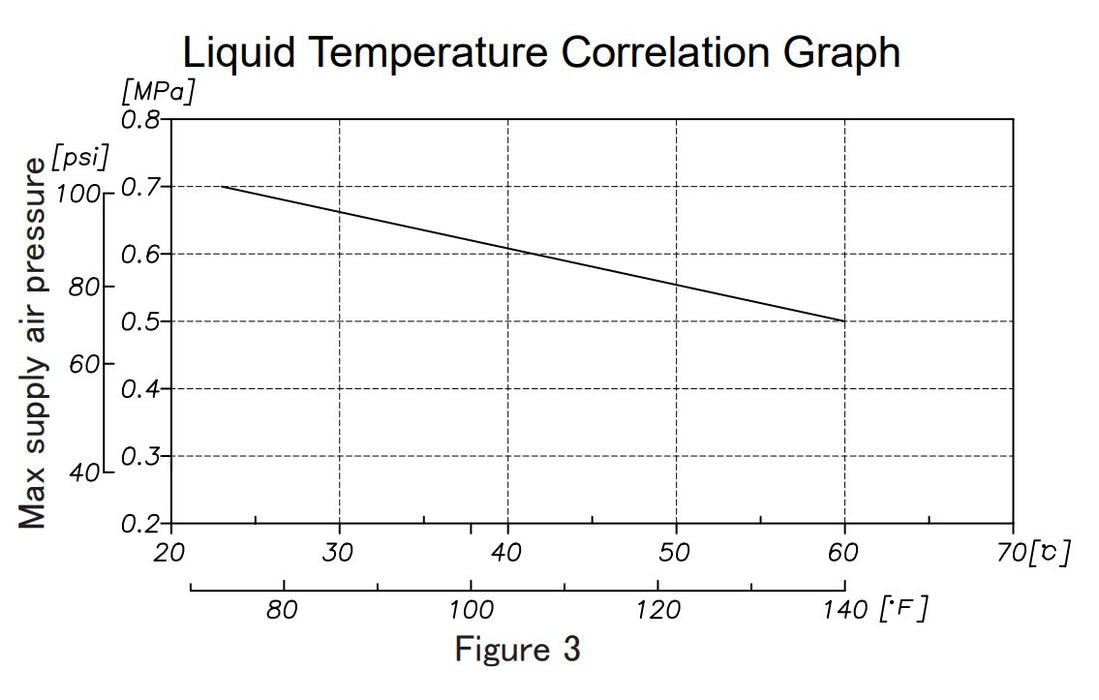

• Fluid temperature range: 0°C – 70°C (32°F – 158°F)

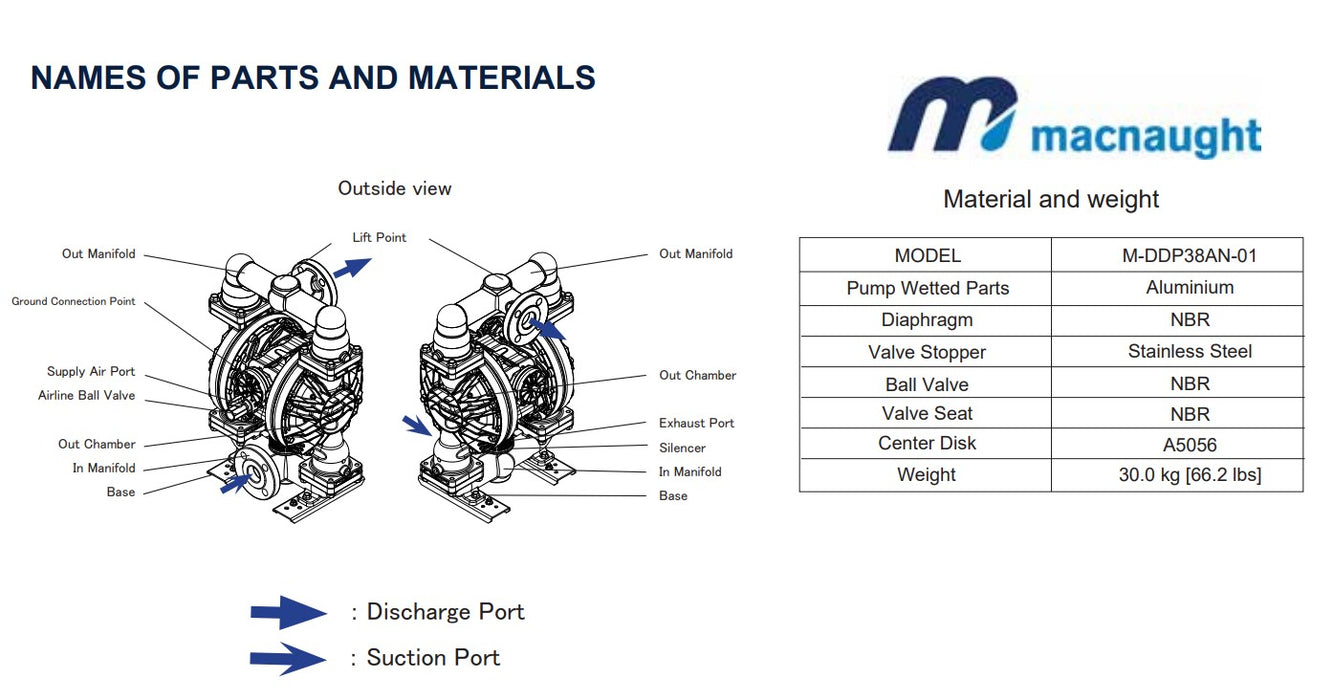

• Wetted parts: Aluminium, Nitrile Buna-N (NBR), SUS (cast iron components)
• Air motor: Aluminium

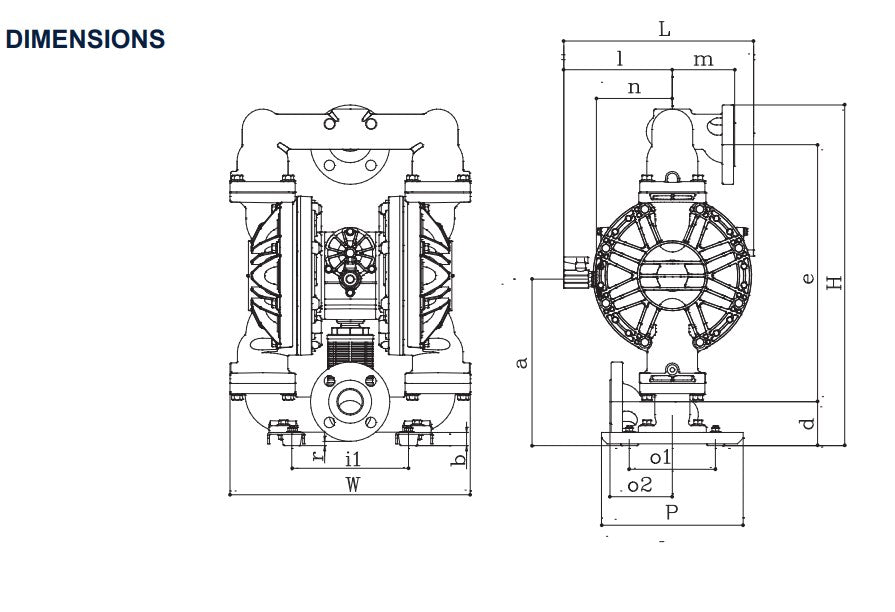

• Dimensions: Height 60.1 cm, Width 42.4 cm, Depth 33.5 cm

PACKAGE INCLUDES

• 1 unit of Diaphragm pump
