Matelec 6kVA Battery Back-Up Power System with Inverter for Pump and Control Panels with IP44 Steel Enclosure

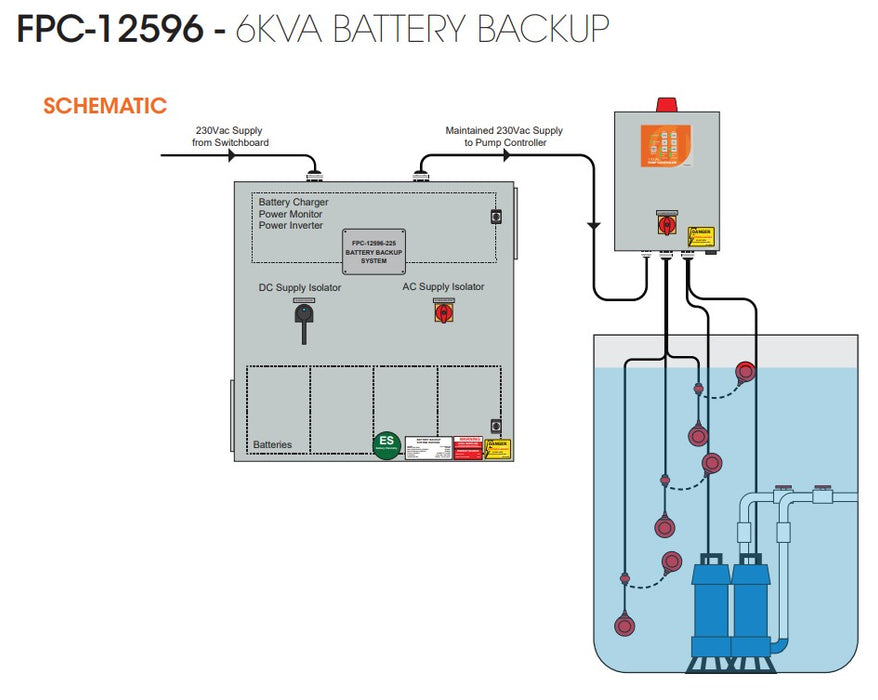

The Matelec 6kVA Battery Back-Up Power System provides reliable emergency power for pump controllers and control panels in the event of a mains outage. Designed for automatic operation, it delivers continuous 230 VAC supply via an integrated inverter, ensuring critical pumping and control systems remain operational.

Housed in a robust IP44-rated powder-coated mild steel enclosure with removable gland plates and integral ventilation, the system is available in free-standing or wall-mount configurations. It features intelligent battery monitoring, automatic changeover between mains and battery supply, and safe battery management to prevent overcharging or deep discharge.

With options for 225 A/h or 450 A/h battery capacity, the system can be tailored to deliver extended run times depending on pump load. Onboard monitoring via the inverter display provides real-time battery status, while comprehensive electrical protection safeguards both the inverter and batteries.

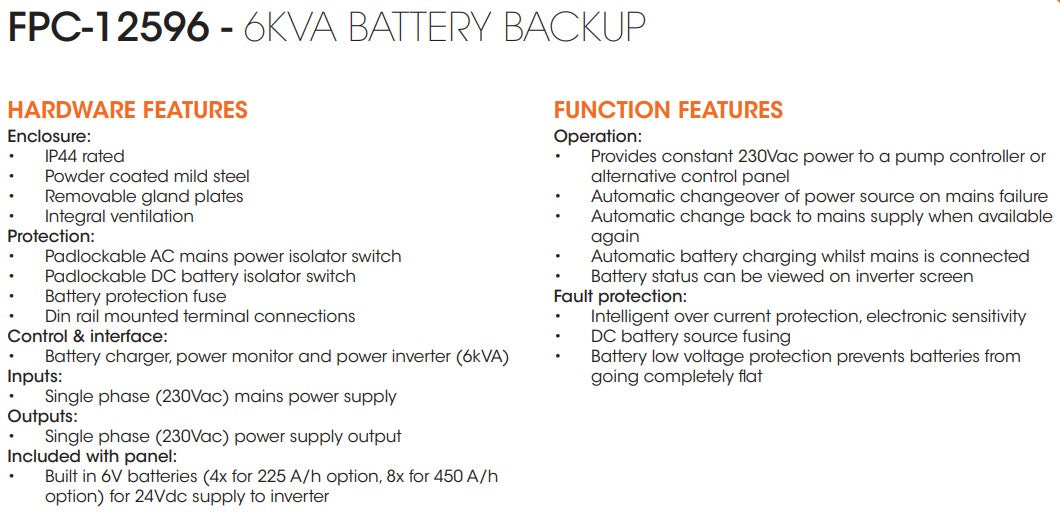

FEATURES

• Automatic Backup Power – Seamless changeover from mains to inverter during power loss.
• Continuous Supply – Maintains 230 VAC output to pumps and control panels.
• Intelligent Battery Management – Automatic charging, overcharge prevention, and low-voltage protection.
• Flexible Configurations – Free-standing (450 A/h) or wall-mount (225 A/h) IP44 enclosures.
• Integrated Inverter – 6 kVA rating for starting currents up to 36 A.
• Comprehensive Protection – Padlockable AC/DC isolators, MCCB protection, battery fuses.
• Real-Time Monitoring – Inverter display for battery and system status.

TECHNICAL SPECIFICATIONS

• Model Options:

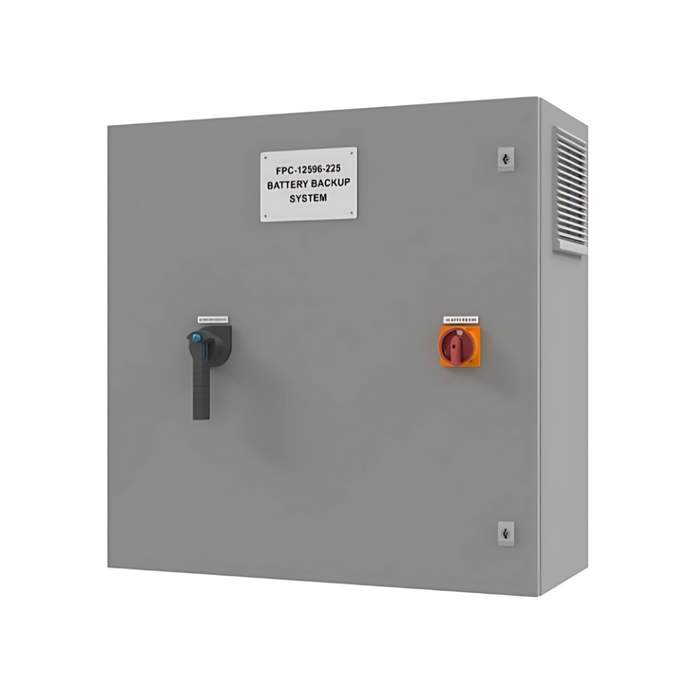

  • FPC-12596-225 – 6 kVA inverter, 225 A/h battery capacity, wall-mount IP44 enclosure.
  • FPC-12596-450 – 6 kVA inverter, 450 A/h battery capacity, free-standing IP44 enclosure.
• Inverter Rating: 6 kVA (max start current 36 A, max run current 25 A).
• Battery Capacity: 225 A/h or 450 A/h, depending on model.
• Power Supply: 230 VAC single-phase input.
• Outputs: Maintained 230 VAC single-phase supply to connected load.
• Enclosure Type: Powder-coated mild steel, IP44 rated, removable gland plate, integral ventilation.
  • Wall-mount enclosure: 800 mm (H) × 800 mm (W) × 300 mm (D), 280 kg (incl. batteries).
  • Free-standing enclosure: 1200 mm (H) × 900 mm (W) × 300 mm (D), 500 kg (incl. batteries).
• Protection Features:
  • Padlockable DC isolator and MCCB for battery isolation and protection.
  • AC supply isolator.
  • Overcurrent, over/under voltage, short circuit, and battery low-voltage cut-off.
• Monitoring: Inverter display showing battery status, charge state, and fault conditions.
• Battery Management: Intelligent charging, overcharge prevention, deep discharge protection.
