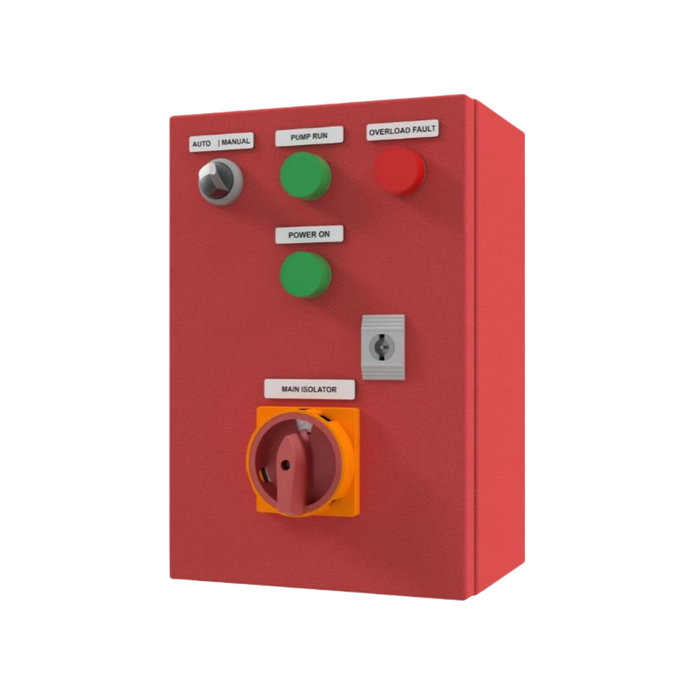

Matelec Fire Hose Reel Pump Controller with IP54 Enclosure

The Matelec Fire Hose Reel Pump Controller is designed to deliver reliable control and clear status indication for fire hose reel pumps, in full compliance with Australian Standard AS 2941-2013: Section 6. Housed in a robust red powder-coated mild steel IP54-rated enclosure, this controller is purpose-built for critical fire safety systems, ensuring rapid response and dependable pump performance in emergency situations.

Featuring automatic operation via a pressure switch input and manual run capability for testing or override, the controller includes integrated pump overload protection to safeguard equipment. Simple, clearly labeled controls and indicator lights make operation intuitive, even in high-stress situations.

FEATURES

• AS 2941-2013: Section 6 Compliant – Designed specifically for fire hose reel pump control.
• Automatic & Manual Operation – Runs via pressure switch input or momentary manual mode.
• Clear Status Indication – Power, pump run, and overload fault lights.
• Overload Protection – Shuts down the pump in the event of an overload condition.
• Heavy-Duty Enclosure – IP54 powder-coated mild steel with removable gland plate.

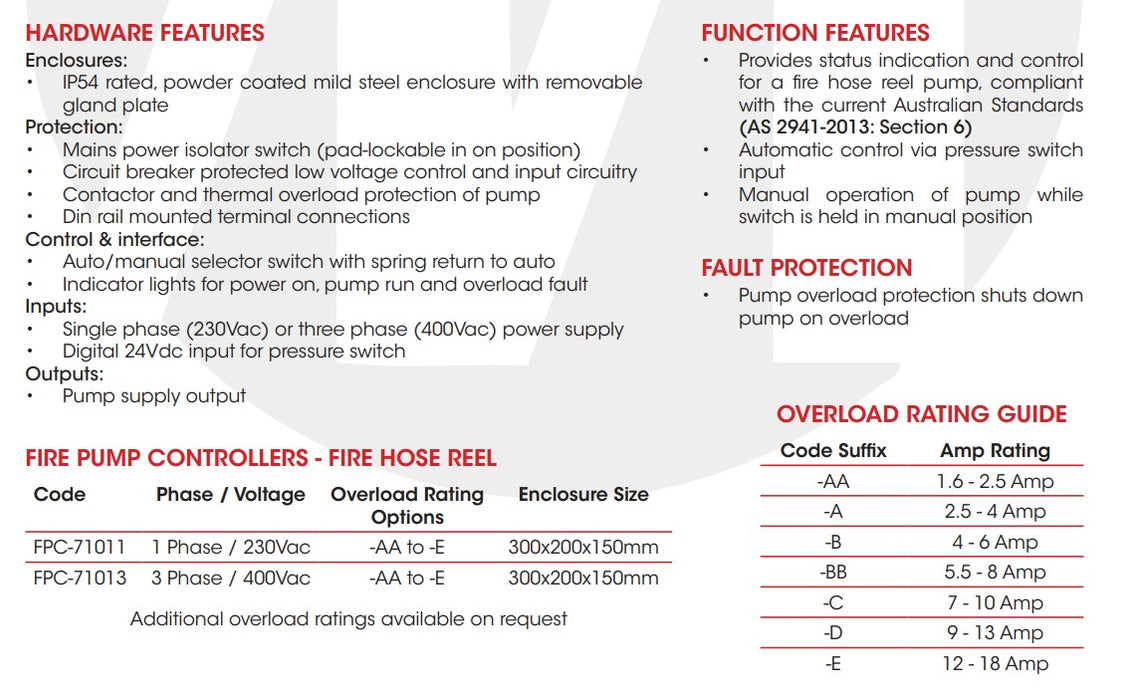

TECHNICAL SPECIFICATIONS

• Model Codes:
  • FPC-71011 – 1-phase, 230 VAC
  • FPC-71013 – 3-phase, 400 VAC
• Overload Rating Options:
  • -AA: 1.6–2.5 A
  • -A: 2.5–4 A
  • -B: 4–6 A
  • -BB: 5.5–8 A
  • -C: 7–10 A
  • -D: 9–13 A
  • -E: 12–18 A
• Enclosure Dimensions: 300 × 200 × 150 mm
• Inputs:
  • Digital 24 VDC for pressure switch
• Outputs:
  • Pump supply output
