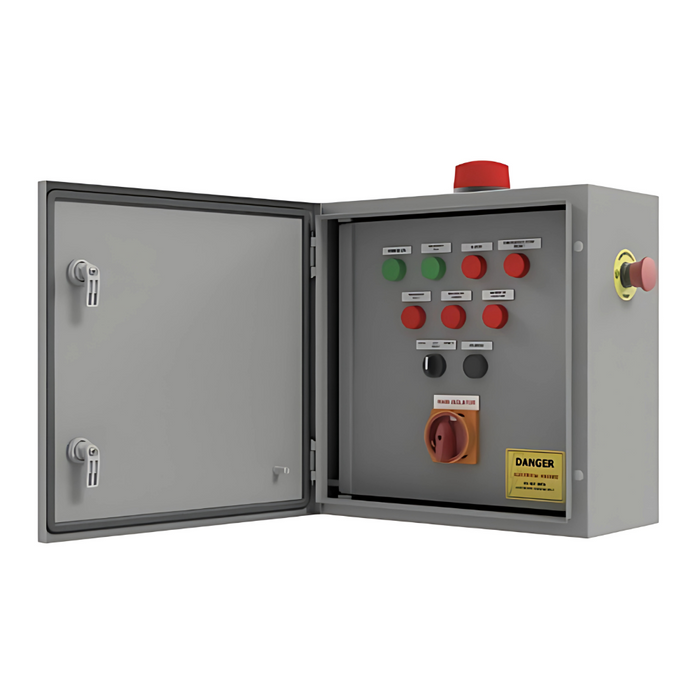

Matelec FPC-12588 Macerator Pump Controller with Reversible Motor Function for Blockage Clearance

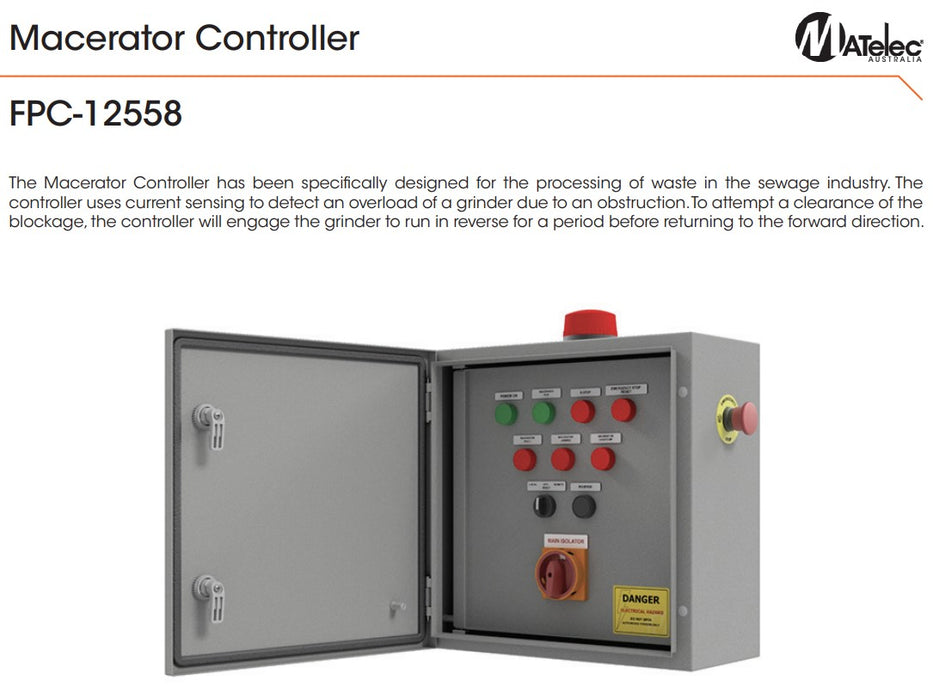

The Matelec FPC-12588 Macerator Pump Controller is purpose-built for the sewage industry, providing intelligent control and protection for grinder and macerator pumps. Using current-sensing technology, the controller continuously monitors motor load to detect obstructions. If a blockage is identified, the system automatically reverses the pump for a set period in an attempt to clear the obstruction before resuming forward operation.

If the blockage remains, the controller triggers a jammed macerator alarm for prompt operator intervention. Designed for reliability in demanding wastewater environments, the unit includes contactor and overload protection, as well as local or remote control options. The rugged IP54-rated powder-coated mild steel enclosure with an inner door ensures durability and weather resistance.

FEATURES

• Automatic Blockage Clearance – Reverses motor upon overload detection to attempt clearing obstructions.
• Continuous Current Monitoring – Detects jams and over-temperature conditions quickly.
• Flexible Control – Local and remote start/stop capability via selector switch.
• Clear Status Indication – LED indicators for power, run, fault, jam, and over-temperature.
• Built-in Protection – Overload, motor contactor, and emergency stop circuit included.
• BMS Integration – Volt-free outputs for remote monitoring of run status, faults, and remote switch-on.
• Rugged Construction – IP54 mild steel enclosure with inner door for sewage environment protection.

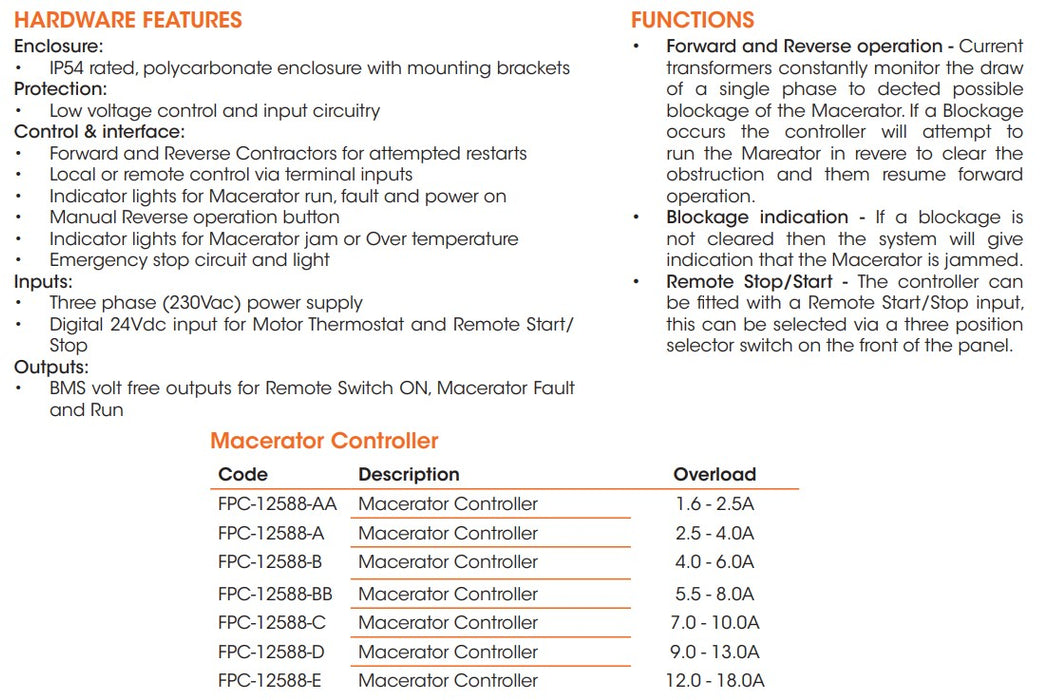

TECHNICAL SPECIFICATIONS

• Model: FPC-12588-A: 2.5 – 4.0 A
• Enclosure: IP54-rated powder-coated mild steel, inner door, removable gland plate.
• Power Supply: Three-phase 230 VAC input.
• Inputs: Digital 24 VDC for motor thermostat and remote start/stop.
• Outputs: BMS volt-free outputs for remote switch-on, fault, and run.
• Control & Interface:
  • Forward/reverse contactors for blockage clearance
  • Manual reverse operation button
  • Selector switch for local/remote control
  • Emergency stop circuit and light
