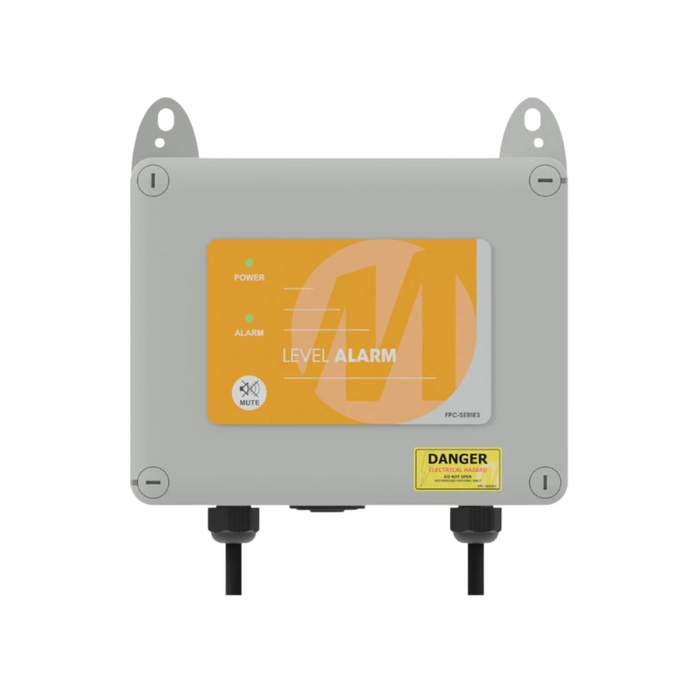

Matelec FPC-12661 Deluxe Under Sink/Sullage Alarm with Valve & Dishwasher Shut-Off with Pre-Wired 20mm Pulse Latching Solenoid

The Matelec FPC-12661 Deluxe Under Sink/Sullage Alarm is a complete protection system for under-sink and sullage chamber installations, combining high-level alarm monitoring with automatic valve shut-off and dishwasher interlock functions.

In the event of a high-level condition, the controller immediately:

1. Activates an audible and visual alarm.
2. Pulses the solenoid valve closed, stopping mains water from entering the sink and chamber.
3. Isolates power to the dishwasher, preventing further inflow.

For added security, the system will also close the valve automatically if power to the controller is switched off. The included proprietary magnetic finger float can be installed externally from the tank or chamber, simplifying installation while maintaining IP54-rated water resistance.

Housed in a durable polycarbonate enclosure with pre-wired connections, the FPC-12661 is ready for fast plug-and-play setup, making it ideal for kitchens, commercial food preparation areas, and sullage systems.

FEATURES

• Triple Protection – Alarm, mains water shut-off, and dishwasher power isolation.
• Fast Response – Valve and dishwasher shut-off triggered instantly at high level.
• Fail-Safe Design – Valve closes automatically if controller power is switched off.
• Pre-Wired Kit – Includes float switch and solenoid valve for quick installation.
• Clear Indication – LED lights for power and alarm status plus mute/reset/test button.
• Space-Saving Float – Proprietary magnetic finger float installs from outside the tank.

TECHNICAL SPECIFICATIONS

• Model: FPC-12661 – Deluxe Under Sink/Sullage Alarm with Valve & Dishwasher Shut-Off
• Enclosure: IP54 polycarbonate with mounting brackets, 200 × 160 × 95 mm
• Power Supply: 230 VAC single-phase
• Inputs:
  • Digital 12 VDC for float switch (included)
• Outputs:
  • 12 VDC for solenoid valve (included)
  • 10 A GPO for dishwasher
  • BMS volt-free output for common fault
• Included Components:
  • 10 A 3-pin 1.5 m power supply lead
  • 20 mm male/male 12 VDC pulse latching solenoid valve (pre-connected)
  • Magnetic float switch with 10 m cable (pre-connected)
