Matelec FPC-12700 Standard Tank Fill Valve Shut-Off Controller with Float Switch & 25mm Valve

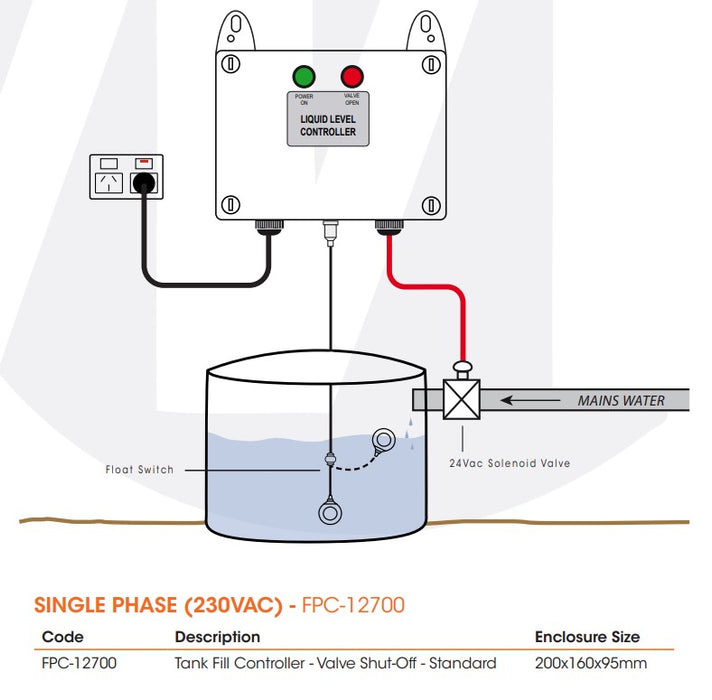

The Matelec FPC-12700 Standard Tank Fill Valve Controller is a compact, easy-to-use solution for maintaining precise water levels in tanks, reservoirs, and swimming pools. Using a single float switch, the controller automatically opens or closes the included 25 mm solenoid valve to keep liquid levels within a set range.

When the water reaches the full set point, the controller pulses the valve closed to stop filling. As the level drops to the low set point, the valve reopens to refill the tank. The adjustable switching differential of 25 mm to 1 m provides flexibility to suit different tank sizes and applications.

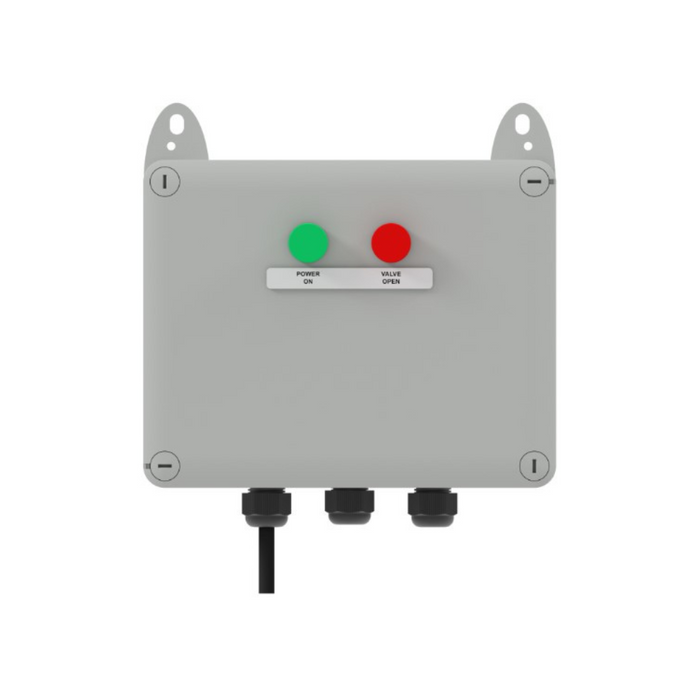

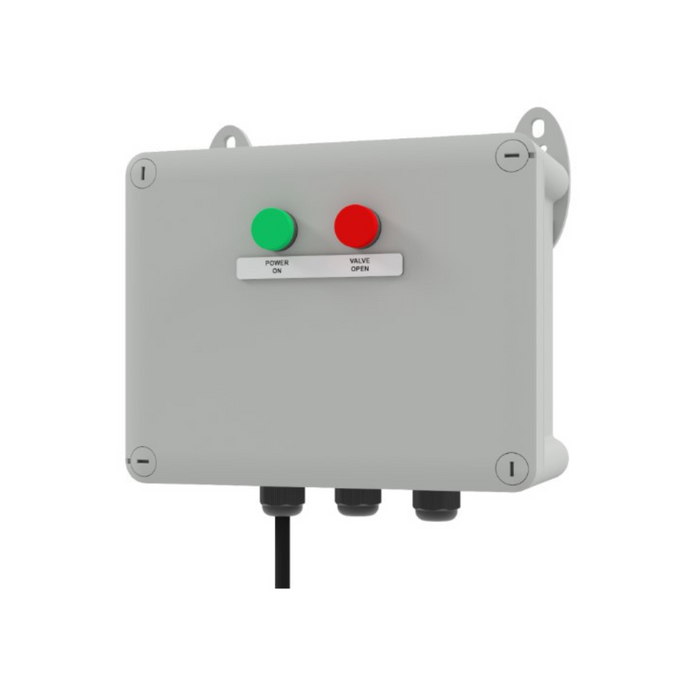

Housed in a weather-resistant IP54 polycarbonate enclosure with mounting brackets, the FPC-12700 is pre-wired for fast installation and includes everything needed to get started: float switch, solenoid valve, and power lead.

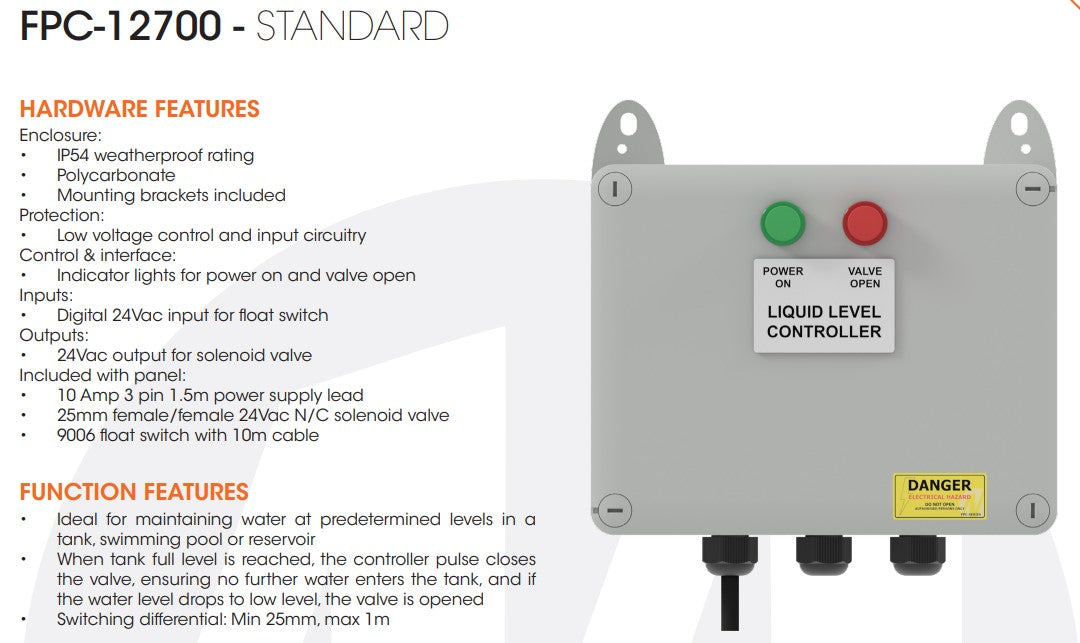

FEATURES

• Automatic Level Control – Maintains preset water levels in tanks, pools, or reservoirs.
• Pulse Valve Shut-Off – Closes valve instantly when full level is reached.
• Adjustable Switching Differential – From 25 mm to 1 m to suit different vessel sizes.
• All-In-One Kit – Includes 25 mm 24 VAC N/C solenoid valve and 10 m float switch.
• Weather-Resistant Design – IP54-rated enclosure for indoor or outdoor use.
• Plug-and-Play Setup – Pre-wired with 1.5 m power lead for easy installation

TECHNICAL SPECIFICATIONS

• Model: FPC-12700 – Standard Tank Fill Valve Controller
• Enclosure: IP54 polycarbonate with mounting brackets, 200 × 160 × 95 mm
• Power Supply: 230 VAC single-phase
• Inputs: Digital 24 VAC from float switch (included)
• Outputs: 24 VAC to solenoid valve (included)
• Switching Differential: Min 25 mm, max 1 m
• Included Components:
• 10 A 3-pin 1.5 m power supply lead
• 25 mm female/female 24 VAC N/C solenoid valve
• 9006 float switch with 10 m cable
