Matelec Jockey Pump Controller for Fire Protection Systems with IP54 Enclosure

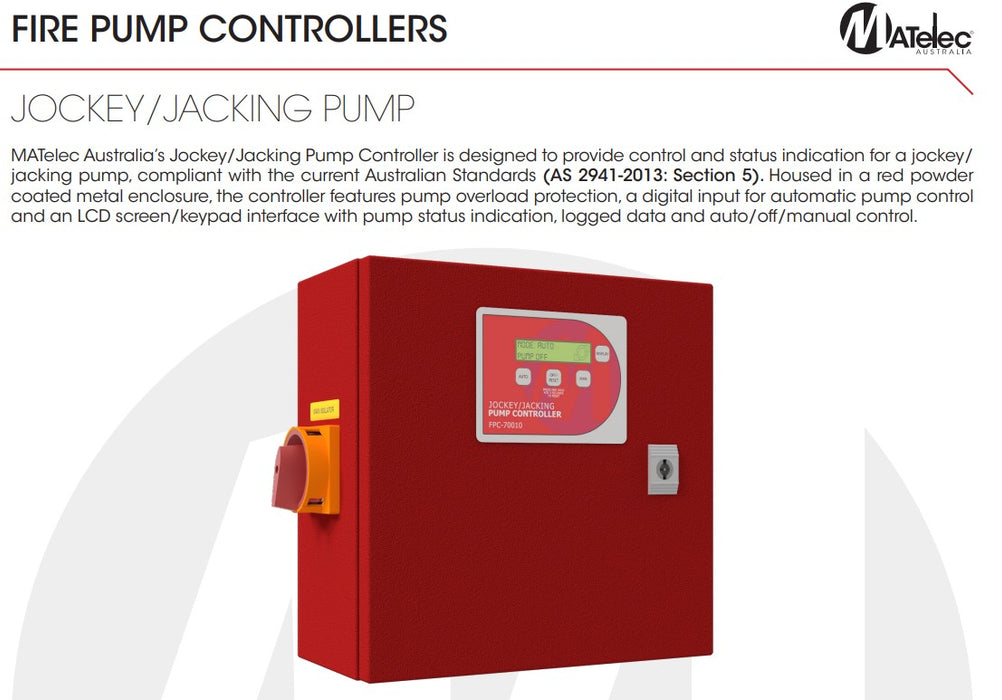

The Matelec Jockey Pump Controller is purpose-built to control and monitor jockey/jacking pumps in fire protection systems, fully compliant with Australian Standard AS 2941-2013: Section 5. Designed for reliability and ease of operation, it ensures system pressure is maintained automatically while providing full status indication and data logging.

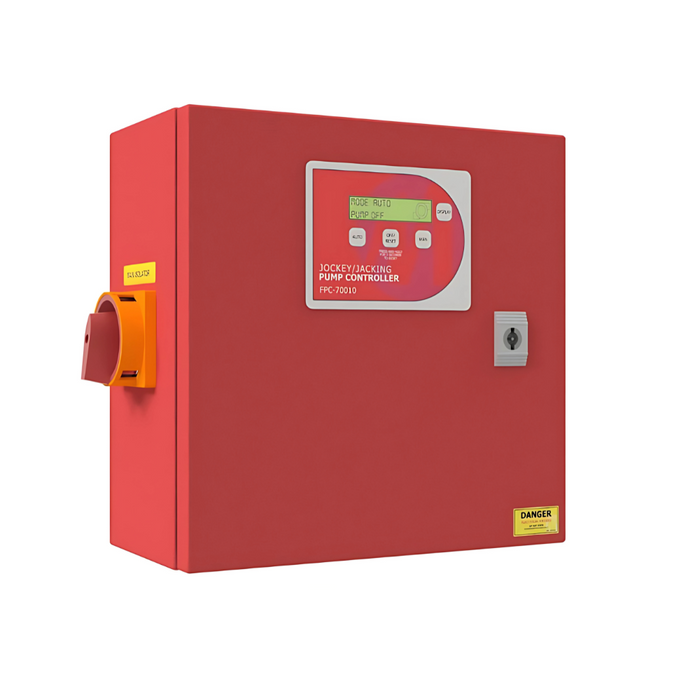

Housed in a robust IP54-rated, red powder-coated mild steel enclosure, the controller features an intuitive LCD screen and keypad interface for monitoring pump status, reviewing logged data, and operating in auto, off/reset, or manual modes. The system also includes pump overload protection and volt-free BMS outputs for integration with building management systems.

Ideal for commercial, industrial, and high-risk facilities, the Jockey Pump Controller provides both automatic control via pressure switch input and momentary manual run capability, making it perfect for routine testing and emergency readiness.

FEATURES

• AS 2941-2013 Compliant – Designed in accordance with Australian fire pump standards.
• Automatic Operation – Runs via digital input from a pressure switch or start signal.
• Manual Control Options – Momentary manual pump run or off/reset modes.
• System Status Display – LCD screen with live pump/system overview.
• Data Logging – Records pump starts, run hours, and fault history.
• BMS Connectivity – Volt-free outputs for pump fault reporting.
• Overload Protection – Shuts down pump in case of electrical overload.

TECHNICAL SPECIFICATIONS

• Enclosure: IP54 powder-coated mild steel with removable gland plate
• Power Supply:
  • FPC-70011 – Single-phase 230 VAC
  • FPC-70013 – Three-phase 400 VAC
• Inputs: Digital 12 VDC for pressure switch or start signal
• Outputs:
  • Pump supply output
  • BMS volt-free output for pump fault
• Overload Rating Options: 1.6–2.5 A to 12–18 A (other ratings on request)
• Dimensions: 300 × 300 × 150 mm
