Matelec Standard Indication Panels for Liquid Level, Pressure or Flow Monitoring with IP44 Steel Enclosure

Matelec’s Standard Indication Panels with Mimic are designed to meet Australian fire regulations that require tank level data to be visible at both the storage tank and the pump set. By transmitting both power and a mimic signal up to 150 m, these panels allow a secondary (mimic) panel to display the same readings as the primary unit, ensuring operators have accurate, real-time information in multiple locations.

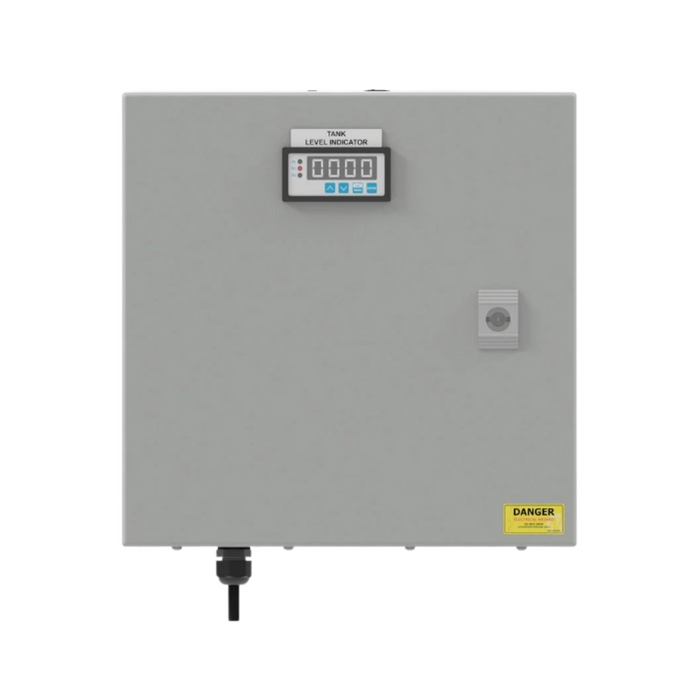

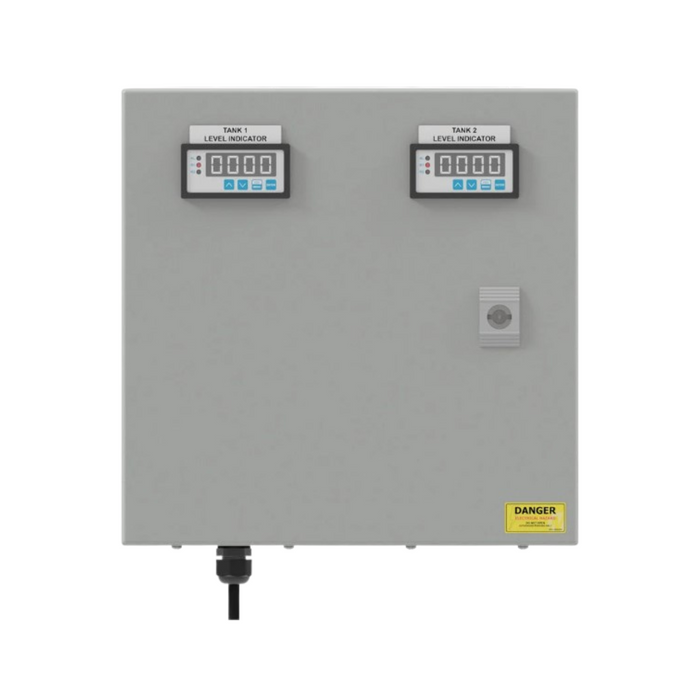

Available in single mimic (FPC-12705-MP) or dual mimic (FPC-12708-MP) configurations, these panels use high-accuracy stainless steel hydrostatic pressure transducers to monitor parameters such as liquid depth, percentage full, capacity in litres, pressure, or flow.

FEATURES

• IP44 powder-coated mild steel enclosures with removable gland plate
• Low voltage control and input circuitry for safety
• 1 or 2 Simex process meters (single or dual display configurations)
• Displays can be configured for depth (m/mm), percentage, capacity (L), pressure, or flow

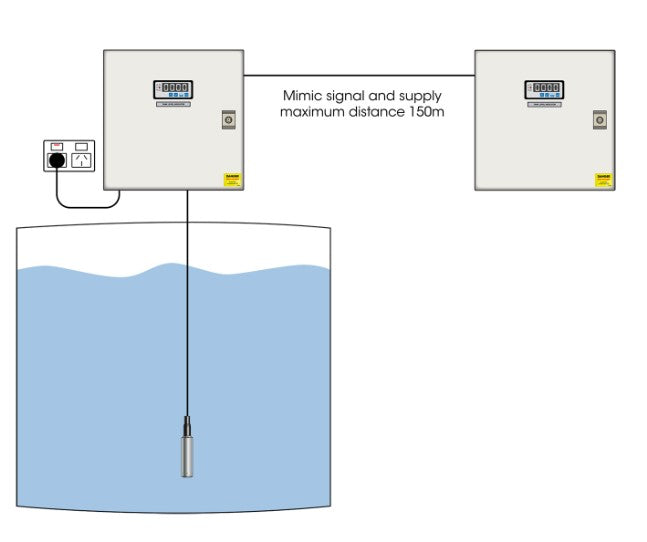

• Mimic signal and power transmission up to 150 m between master and mimic panels
• BMS volt-free outputs for tank full or empty signals
• Plug-and-play 3-pin power lead for quick installation

TECHNICAL SPECIFICATIONS

• Master and mimic enclosures (300 × 300 × 150 mm each)
• Stainless steel potable water hydrostatic transducer(s) (0–4 m rating) with 24 m cable
• 10 A 3-pin 1.5 m power supply lead(s)
