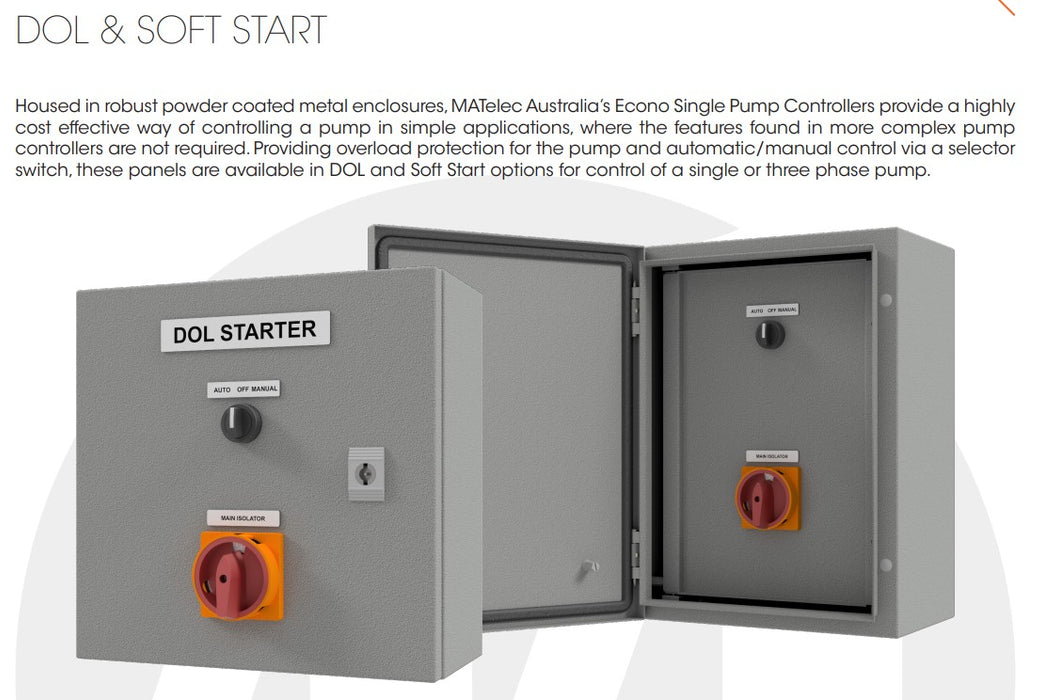

Matelec Standard Soft Start Motor Controller for Single Pump Applications with IP44 Steel Enclosure

The Matelec Standard Soft Start Motor Controller is a reliable, cost-effective control solution for operating large three-phase pumps or motors where soft starting is required to reduce mechanical and electrical stress. Designed for both manual and automatic operation, it’s ideal for applications such as water transfer, pressure boosting, irrigation, and stormwater or sewage pumping.

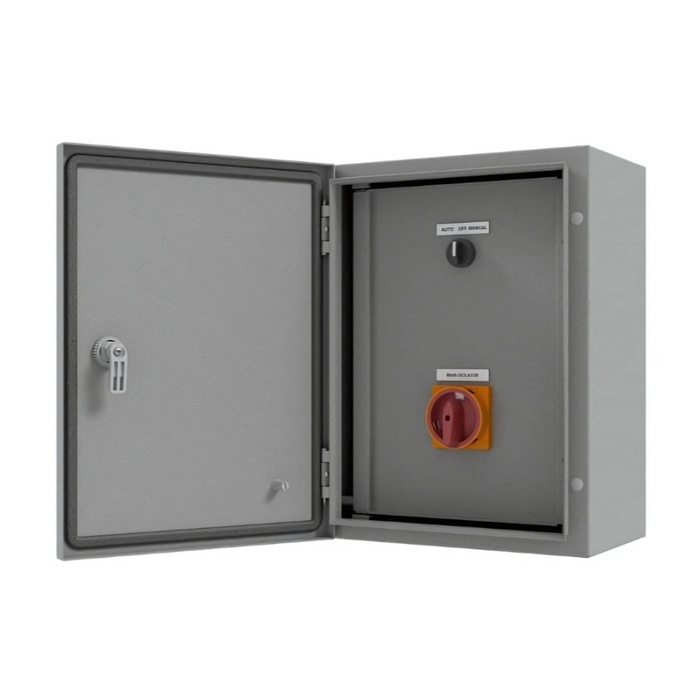

Housed in a robust IP44-rated powder-coated mild steel enclosure with a removable gland plate, the controller includes a user-adjustable soft starter for smooth acceleration and deceleration, extending motor and pump life. The auto/off/manual selector allows flexible operation, while built-in overload protection ensures the system shuts down in the event of an overcurrent condition.

With two digital inputs for cut-off and working level switches, this controller offers simple integration with float switches, pressure switches, or other control devices. Optional upgrades include IP56 or stainless steel enclosures, visual/audible alarms, and remote start/stop inputs.

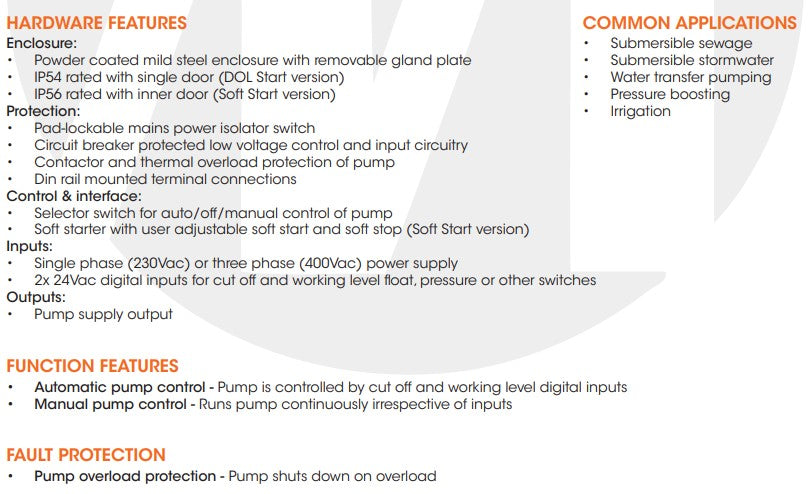

FEATURES

• Soft Start Control – Adjustable soft start/stop to reduce wear and water hammer.
• Dual Operating Modes – Automatic control via level/pressure inputs or manual run mode.
• Electrical Protection – Motor overload, circuit breaker, and isolation switch included.
• Rugged Enclosure – IP44 mild steel housing with removable gland plate.
• Simple Operation – Auto/off/manual selector for easy control.
• Versatile Integration – Compatible with floats, pressure switches, or remote inputs.

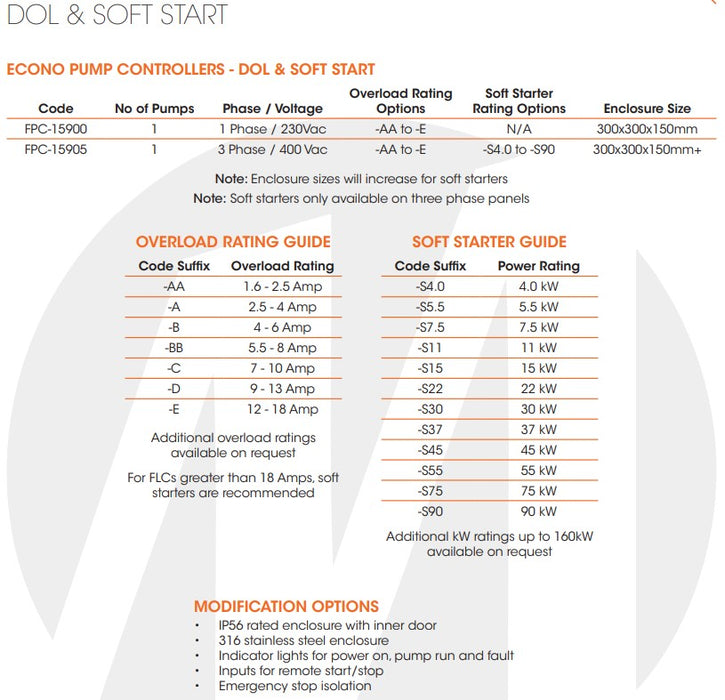

TECHNICAL SPECIFICATIONS

• Model Range: FPC-15905 Series (Soft Start)
• Power Supply: 400 VAC, three-phase
• Soft Starter Ratings: 4.0 kW to 90 kW standard (up to 160 kW available on request)
• Inputs: 2 × 24 VAC digital inputs for cut-off and working level switches
• Outputs: 1 × motor supply output
• Enclosure Rating: IP44 mild steel (IP56 optional)
• Optional Extras: Stainless steel enclosure, indicator lights, alarms, emergency stop, remote start/stop
