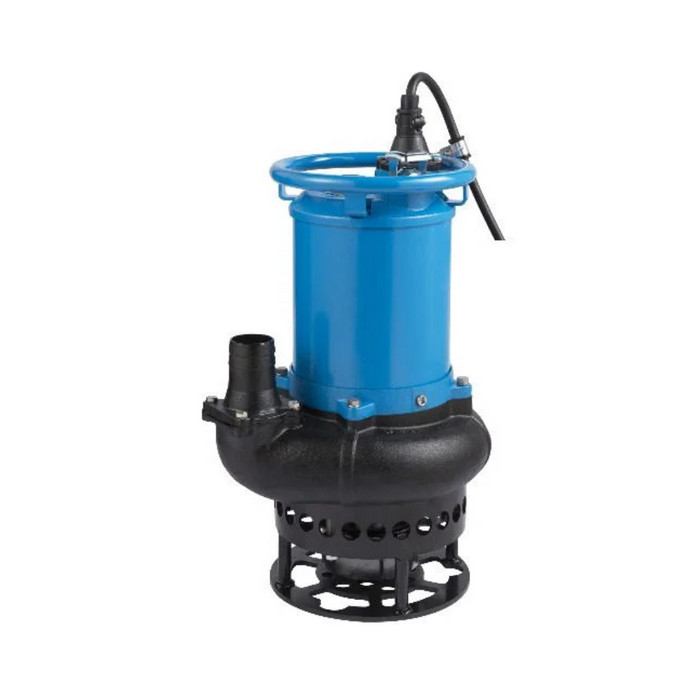

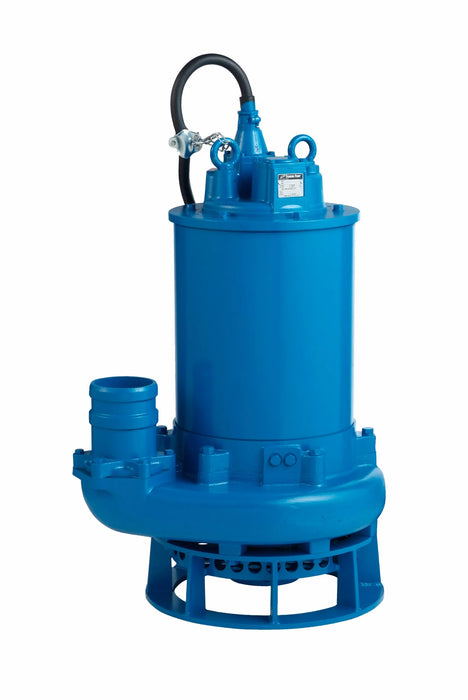

Tsurumi GPN Series Series High Power Heavy Duty Submerible Wastewater Pump - Three Phase

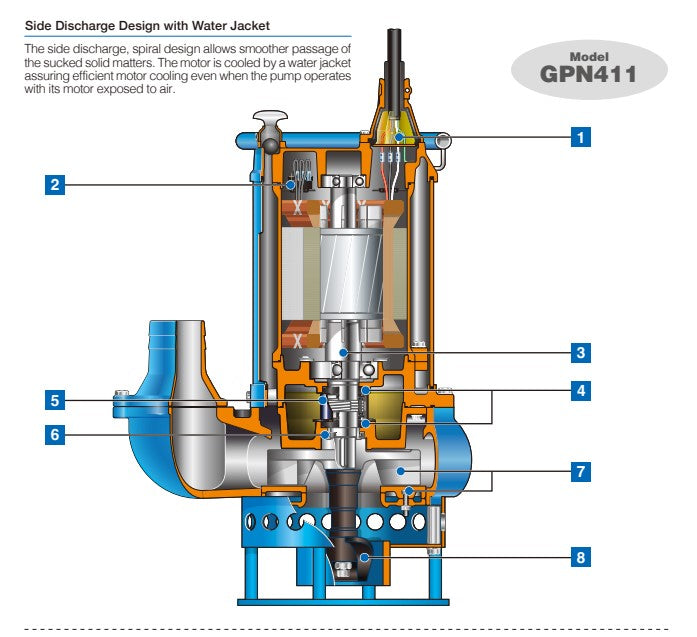

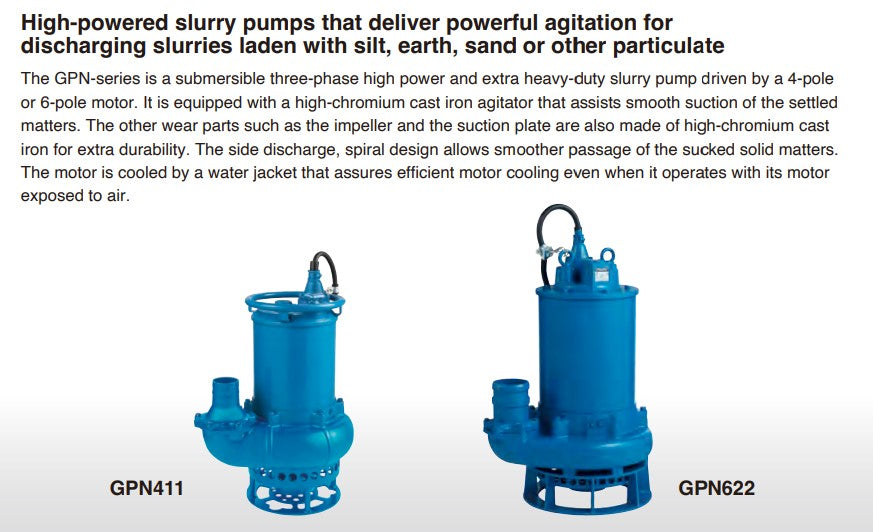

The GPN-series is a submersible three-phase high power and extra heavy-duty slurry pump driven by a 4-pole or 6-pole motor. It is equipped with a high-chromium cast iron agitator that assists smooth suction of the settled matters. The other wear parts such as the impeller and the suction plate are also made of high-chromium cast iron for extra durability. The side discharge, spiral design allows smoother passage of the sucked solid matters.

The motor is cooled by a water jacket that assures efficient motor cooling even when it operates with its motor exposed to air. The use of guide rail fitting system improves convenience in the facilities such as, iron works, ready-mixed concrete plants, and wastewater treatment plants where the pump is to be installed with a fixed discharge piping.

FEATURES

• Anti-wicking Cable Entry
• Motor Protector
  • Circle Thermal Protector (15kW and below)
  • Miniature thermal protector (22kW and above)
• Chromium Molybdenum Shaft
• Dual Inside Mechanical Seal with Silicon Carbide Faces
• Oil Lifter
• Oil Seal
• High-chromium Cast Iron Impeller & Suction Plate
• Agitating Mechanism

APPLICATIONS

• Transferring and draining slurry in piling works.
• Draining cement slurry or sand-carrying water in foundation works.
• Draining aggregate and ore wash water in mines and quarries.
• Collecting sediments in grit chambers at wastewater treatment plants.
• Pumping scale at steel mills.
