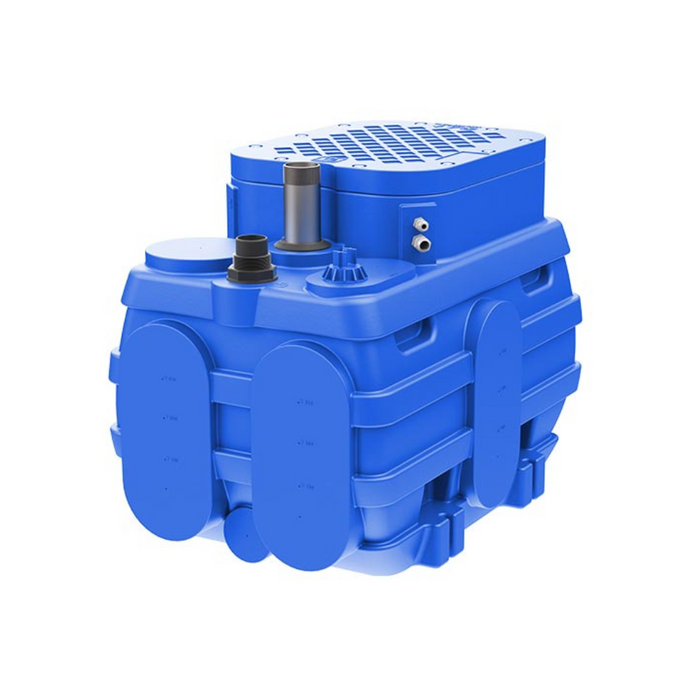

Zenit BlueBOX150 150L 40mm Lifting Station for Wastewater and Clear Rainwater - Suits DG Blue, DG BluePRO & GR Blue Range (Max 150LPM)

The Zenit BlueBOX150 is a large-capacity 150-litre polyethylene lifting station designed to collect and transfer clear water, rainwater, and wastewater from below-ground or low-level installations. With increased storage capacity and expanded pump compatibility, the BlueBOX150 is suitable for demanding residential, commercial, and light industrial applications where gravity-fed drainage is not an option.

Compatible with the DG Blue, DG BluePRO, and GR Blue submersible pump ranges, this station offers a powerful and flexible solution for lifting greywater and sewage from basements, garages, laundries, and outbuildings. It’s pre-fitted with an integrated DN40 (1½”) PVC discharge pipe and includes everything needed for simple installation.

FEATURES

• 150-litre polyethylene collection tank with large inlet area
• Integrated 1½" PVC discharge pipe (DN40) for plug-and-play connection
• Compatible with Zenit DG Blue, DG BluePRO & GR Blue pumps
• Includes cable gland, emergency drain fitting, and inlet gasket kit (Ø110, Ø75, Ø50 mm)
• Float switch limiter support to reduce pump start level
• Optional: Overflow alarm float, 4–20 mA level sensor, control panel

SPECIFICATIONS

• Brand: Zenit Pumps
• Series: BlueBOX
• Tank Capacity: 150 Litres
• Max Flow Rate: 150 L/min (based on selected pump)
• Discharge Connection: 1½” BSPF (DN40)

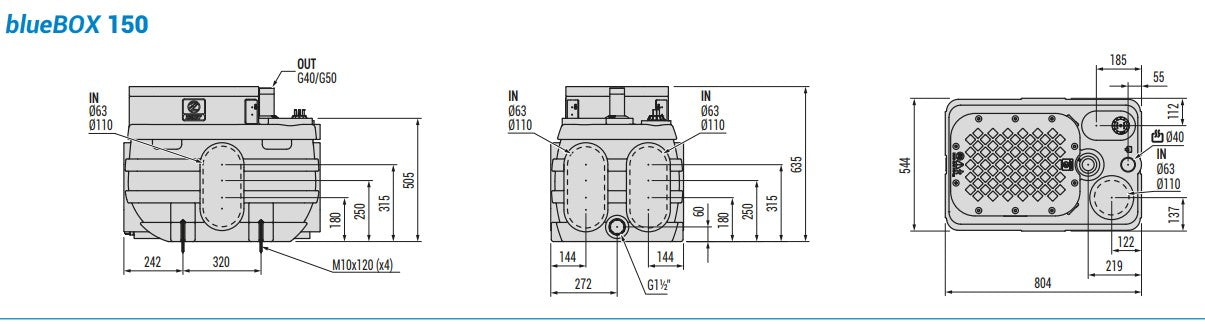

• Dimensions (L x W x H): Approx. 670 × 500 × 600 mm
• Material: High-density polyethylene with reinforced lid
• Pump Compatibility: DG Blue, DG BluePRO, GR Blue
• Installation: Fixed installation – floor mounted

APPLICATIONS

• Garages, basements, and laundry rooms
• Domestic and civil wastewater lifting
• Rainwater drainage systems
• Suitable for retrofitting hydraulic services in redeveloped buildings
