Zenit DDG300 Cast Iron 4 Pole Industrial Vortex Drainage Pump (Max 1380LPM/110kPa)

The Zenit DDG 300 is a robust and efficient 4-pole submersible vortex pump, designed for continuous operation in sewage and drainage systems requiring high solids handling and maximum reliability. With a maximum flow rate of 1380 litres per minute and a total head of 11 metres, this pump is ideal for civil infrastructure, stormwater pits, wastewater treatment, and industrial processing systems.

Built from heavy-duty cast iron (EN-GJL 250) and fitted with a set-back vortex impeller, the DDG 300 ensures clog-free performance and outstanding durability in aggressive wastewater environments. Fully ATEX certified (Ex d), it is also suitable for use in hazardous zones with flammable gases or vapours.

FEATURES

• ATEX Certified Ex d — Safe for use in hazardous areas (II 2G Ex db IIB T4 Gb, Ex h IIB T4 Gb)
• Set-Back Vortex Impeller — Offers full free passage up to 80 mm for solids-laden liquids
• Robust Cast Iron Construction — Casing and impeller built from EN-GJL 250 cast iron
• Efficient 4-Pole Motor — Low speed for smooth, continuous duty operation
• Silicon Carbide Mechanical Seals (2SiC) — Dual seal system in an oil chamber with leakage detection sensor
• Universal Cable Gland (GAS Thread) — Accepts protective sheathing to safeguard power cable in turbulent or corrosive fluids
• Wet Installation — Requires base plate (ZENS9024.007) for free-standing installation
• Factory Pressure Tested — Guarantees seal and gasket integrity

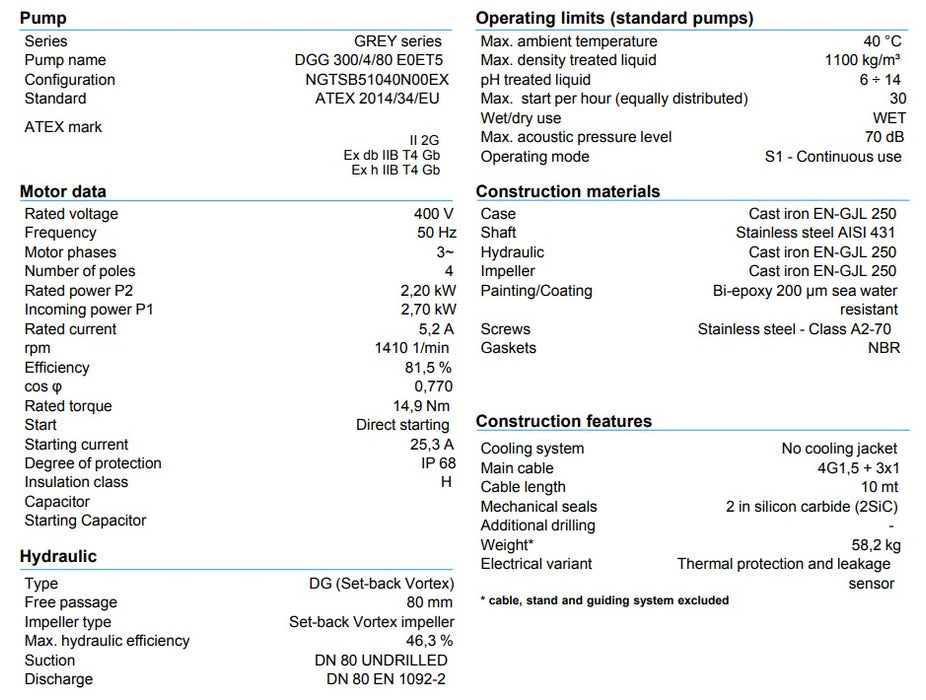

SPECIFICATIONS

• Brand: Zenit Pumps
• Series: Grey – DDG
• Product Type: Submersible Vortex Drainage Pump
• Rated Power (P2): 2.2 kW / 3.0 HP
• Voltage: 415 V (3-phase, 50 Hz)

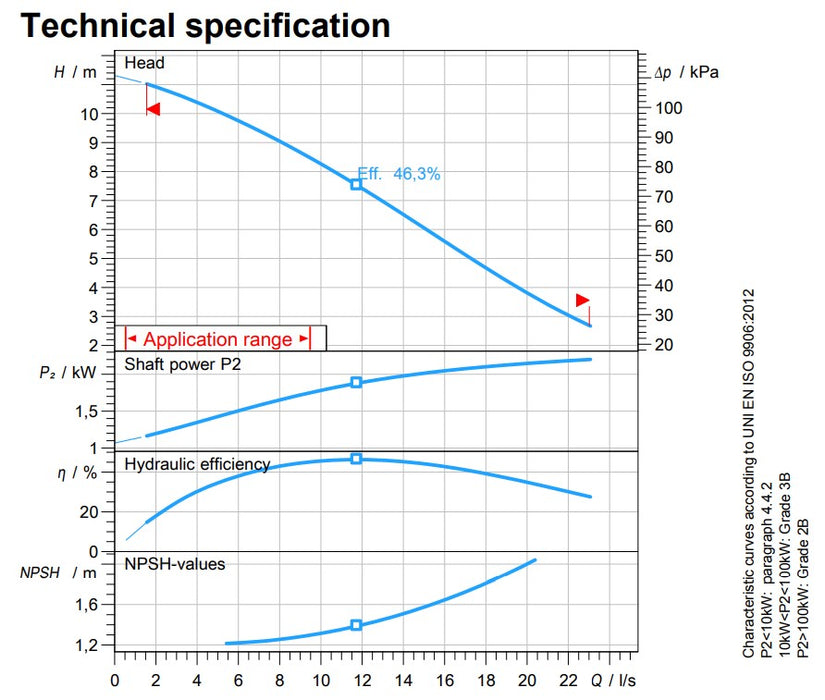

• Max Flow: 1380 L/min (23 L/s)
• Max Head: 11 m (110 kPa / 1.1 bar)
• Impeller Type: Set-back vortex impeller
• Free Passage: 80 mm
• Outlet Size: DN 80 (EN 1092-2 flanged, undrilled)
• Motor Poles: 4-pole (~1440 RPM)
• Insulation Class: H
• Ingress Protection: IP68
• Seals: Dual mechanical seals in silicon carbide (2SiC) + V-ring
• Shaft Material: Stainless Steel AISI 431
• Cable: 10 m (4G1.5 + 3x1)
• Max Liquid Temperature: 40°C
• pH Range: 6 – 14
• Max Fluid Density: 1100 kg/m³
• Max Starts Per Hour: 30
• Coating: Bi-epoxy 200 µm, seawater resistant
• Noise Level: <70 dB (submerged)
• Weight: ~70 kg (excluding base and fittings)
• Mounting Accessory: ZENS9024.007 Ring Stand
• Certification: ATEX II 2G
• Warranty: 12 Months (Parts & Labour)

APPLICATIONS

• Industrial wastewater and sewage lift stations
• Municipal stormwater pits and drainage wells
• Civil water treatment plants
• Livestock or agricultural effluent handling
• Underground carparks or heavy-use commercial pits
• Any installation needing high-volume solids handling with ATEX safety
