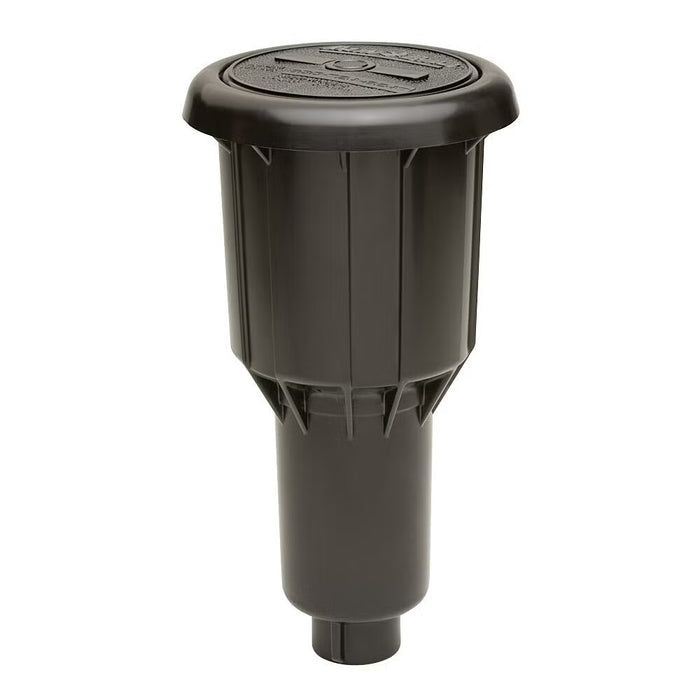

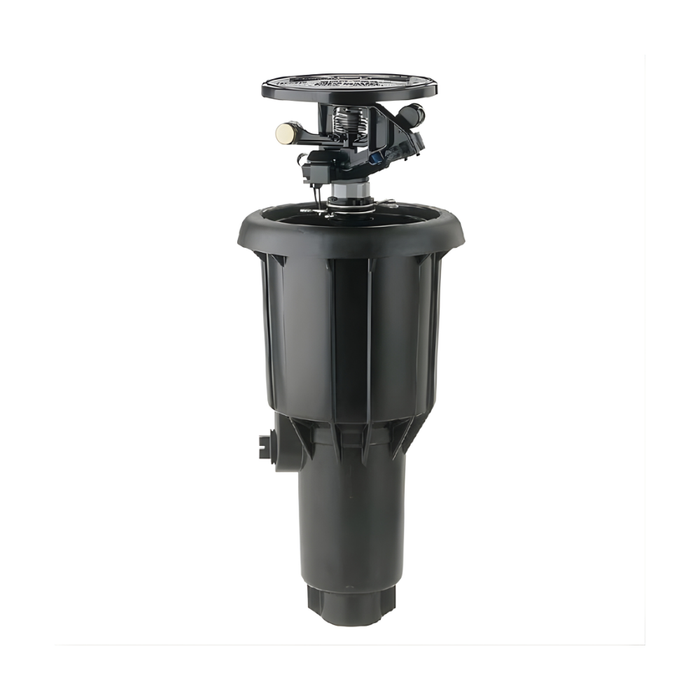

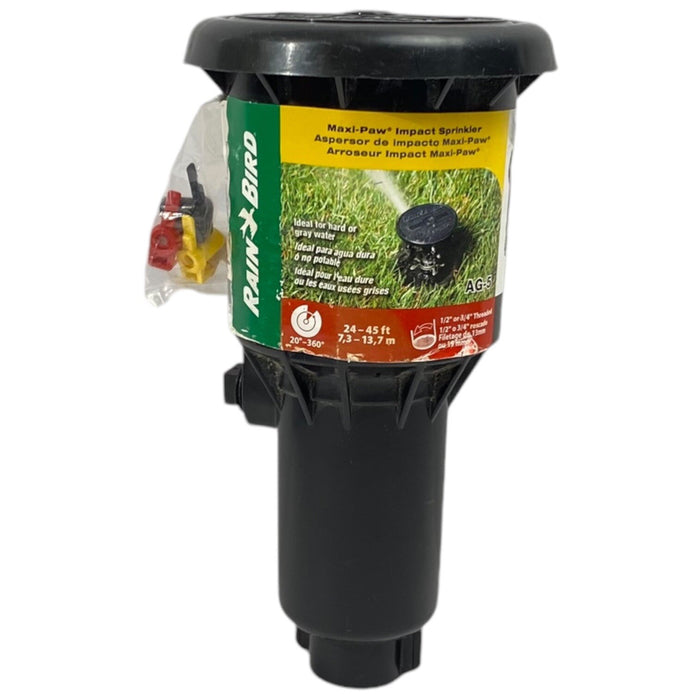

Rain Bird 2045A Maxi-Paw Pop-Up Impact Sprinklers Dirty Water Applications (16.7m-13.7m)

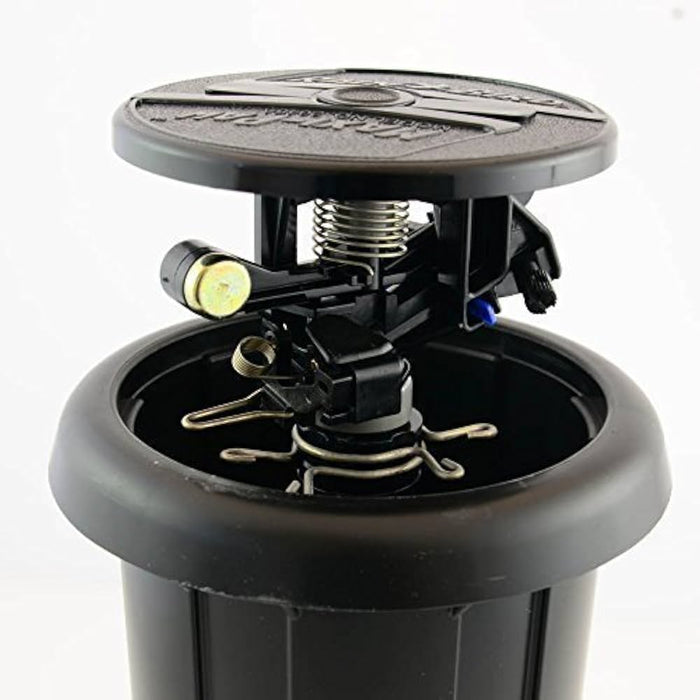

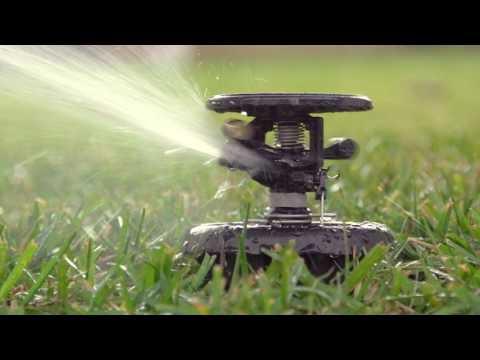

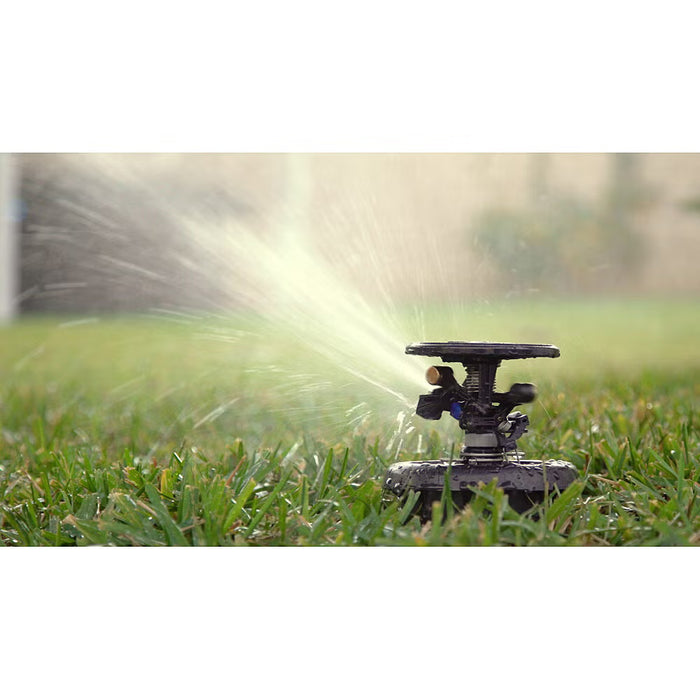

The Rain Bird 2045A Maxi-Paw is a rugged, full- or part-circle pop-up impact sprinkler designed specifically for dirty water applications and large turf areas. With a powerful throw of up to 13.7 metres and superior uniformity, the Maxi-Paw delivers efficient, even coverage while resisting clogging and wear in challenging conditions. Its straight-through flow design and heavy-duty impact drive mechanism make it ideal for water sources containing sand, debris, or reclaimed water.

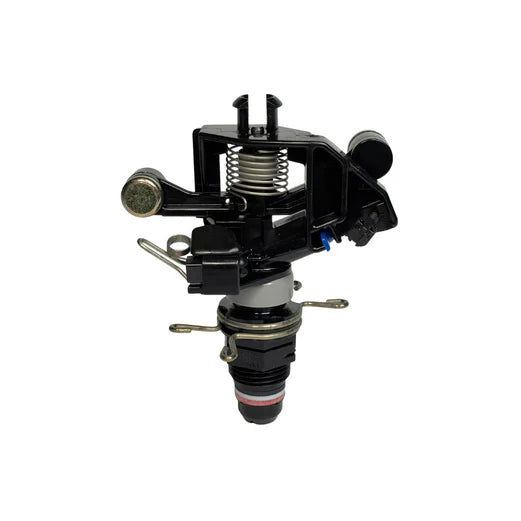

Engineered for performance and durability, the Maxi-Paw features five interchangeable color-coded standard trajectory nozzles and two low-angle options for flexible design and matched precipitation rates. The multi-function, pressure-activated wiper seal keeps the riser clean and ensures reliable pop-up and retraction, while the optional Seal-A-Matic™ (SAM) check valve prevents low head drainage, puddling, and soil erosion. The heavy-duty ribbed body, stainless steel spring, and reinforced bearing assembly provide years of dependable service.

Whether you’re maintaining sports fields, parks, golf courses, or large landscape areas, the Rain Bird 2045A Maxi-Paw combines robust construction with precision engineering for consistent performance, even in the toughest environments.

FEATURES

• Proven impact drive with straight-through flow for superior dirty water performance
• Adjustable arc from 20° to 340° or 360° full circle operation

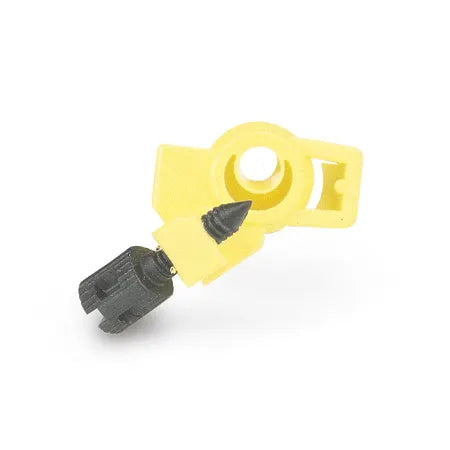

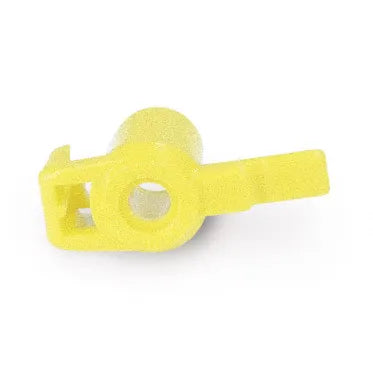

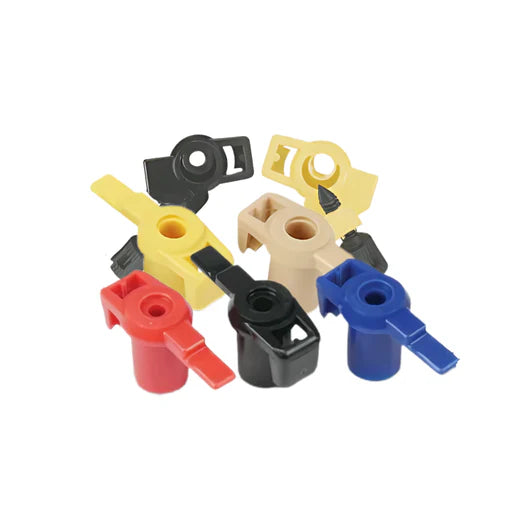

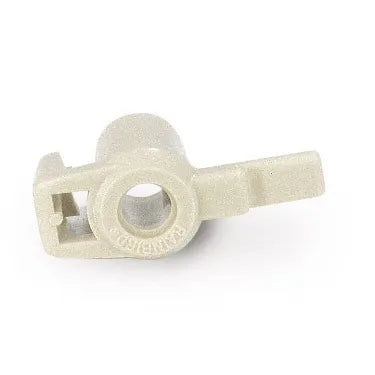

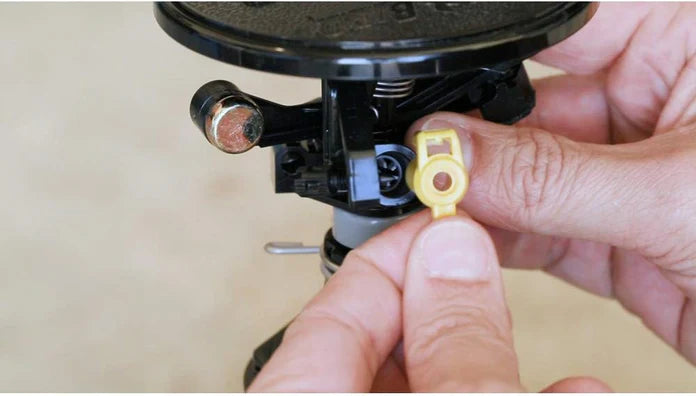

• Five standard trajectory and two low-angle color-coded nozzles for flexible design
• Multi-function, pressure-activated wiper seal for debris resistance
• Optional Seal-A-Matic™ check valve prevents runoff and puddling
• Side and combination ½” or ¾” bottom inlet for installation flexibility

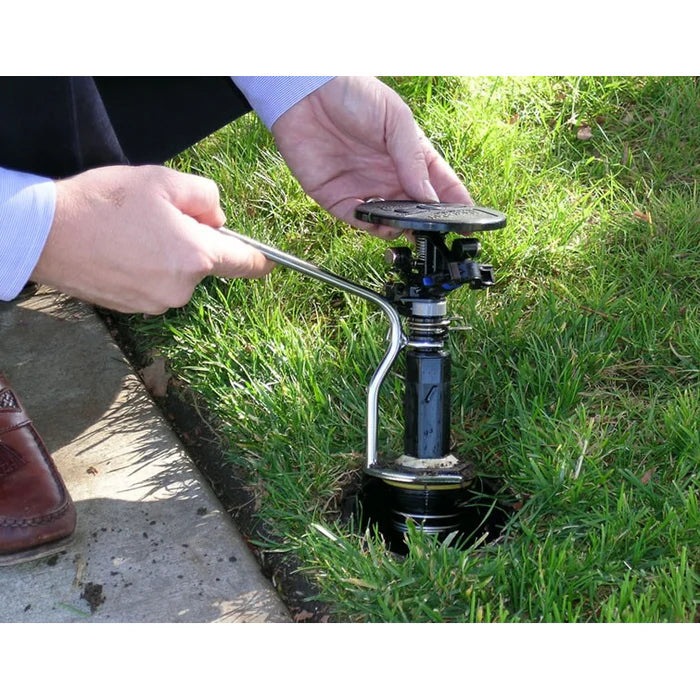

• Serviceable through the top of the case
• Three-year trade warranty

SPECIFICATIONS

• Precipitation Rate: 7–31 mm/h
• Radius: 6.7–13.7 m
• Pressure Range: 1.7–4.1 bar (25–60 psi)
• Flow Rate: 1.5–8.4 GPM (0.34–1.91 m³/h)

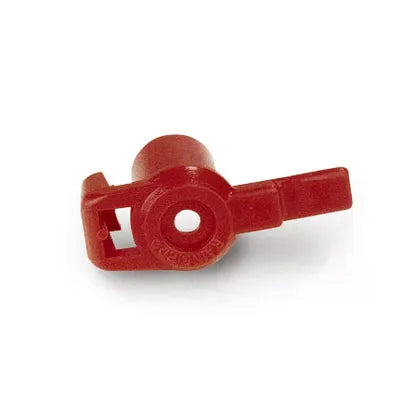

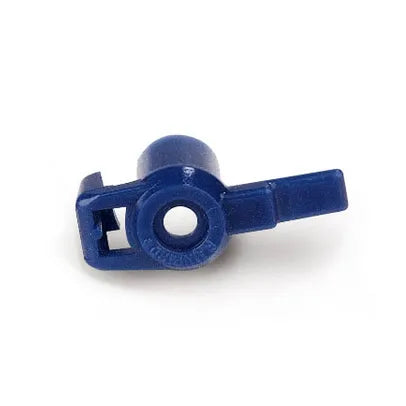

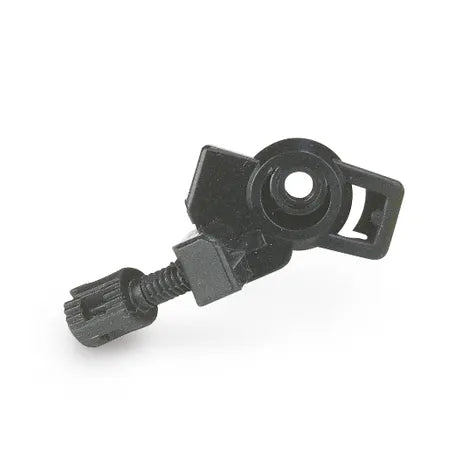

• Nozzle Options: Standard 06, 07, 08, 10, 12; Low Angle 07LA, 10LA

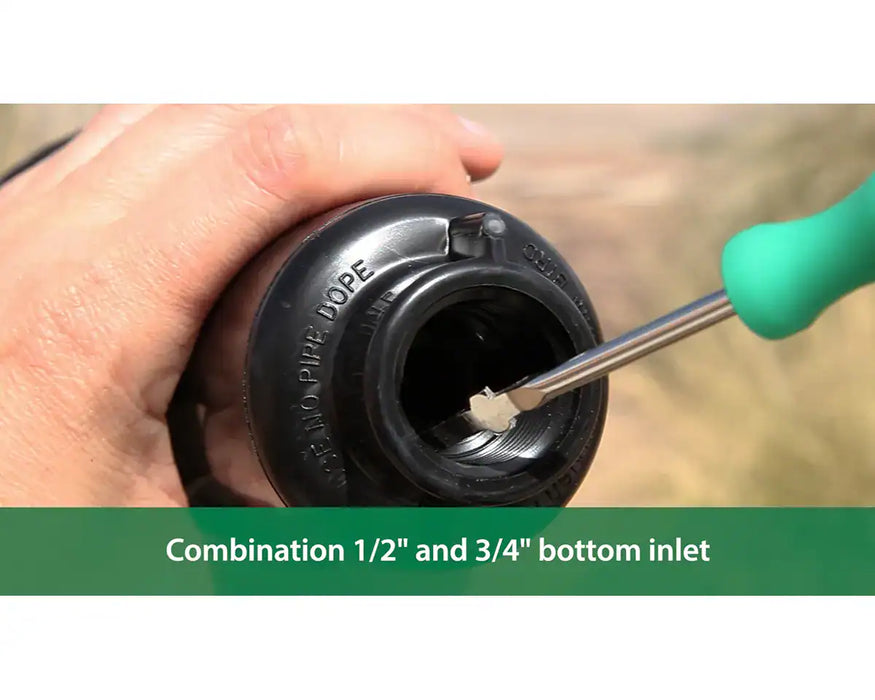

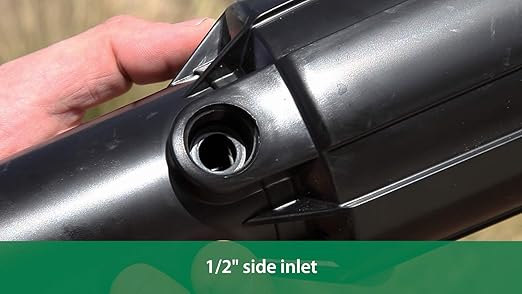

• Inlet: Combination ½" or ¾" BSP bottom inlet, ½" BSP side inlet
• Trajectory: 23° standard / 11° low angle

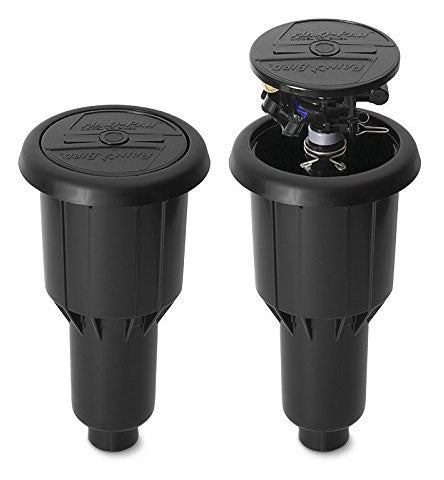

• Pop-Up Height: 76 mm
• Overall Height: 236 mm
• Top Diameter: 127 mm

APPLICATIONS

• Parks, sports fields, and large turf areas
• Golf courses and open landscapes
• Dust suppression and reclaimed water systems
• Ideal for dirty water, dam, or bore-fed irrigation networks
