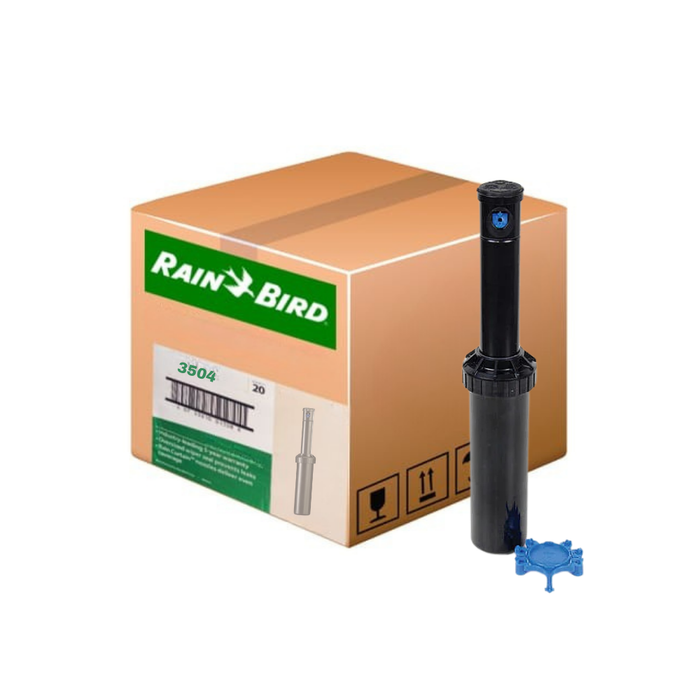

Rain Bird 3504 100mm Adjustable 40-360° Gear Drive Sprinklers (5-10m / 15mm BSP)
Rain Bird 3504 100mm Adjustable Gear Drive Sprinklers (15mm BSP)
| DOWNLOAD TECHNICAL SPECIFICATIONS |
| DOWNLOAD PRODUCT BROCHURE |
The Rain Bird 3504 is a compact, short- to mid-range gear-driven rotor designed to deliver reliable and efficient irrigation for residential landscapes. With a true 100mm pop-up height and an adjustable 40–360° arc, it provides flexible coverage from 5 to 10.7 metres — ideal for small to medium lawns and garden areas.
Equipped with Rain Curtain™ nozzle technology, the 3504 produces larger water droplets that resist wind drift and reduce evaporation, ensuring consistent coverage and water savings. Each sprinkler comes with a full set of interchangeable nozzles, giving you design flexibility and precise control over precipitation rates.
Engineered for durability, the 3504 includes an oversized wiper seal to prevent leaks and keep out debris, a water-lubricated gear drive for long-lasting performance, and a stainless steel spring for dependable retraction. Maintenance is straightforward with its removable filter screen and nozzle-removal feature. Backed by Rain Bird’s three-year trade warranty, the 3504 offers proven performance at an affordable price.
FEATURES
- Adjustable arc: 40°–360° full/part circle in one unit
- True 100mm (4") pop-up height for even coverage over taller grass
- Rain Curtain™ nozzles deliver uniform watering and reduce runoff
- Radius adjustment screw allows up to 35% radius reduction
- Nozzle tree with six interchangeable nozzles included
- Quick Check Arc/Fast Forward feature for simple adjustments
- Durable, water-lubricated gear drive and oversized wiper seal
- Stainless steel spring for positive pop-up and retraction
- Easy maintenance: removable filter screen and nozzle removal tool
- Three-year trade warranty
SPECIFICATIONS
| Brand | Rain Bird |
| Type | Gear Drives |
| Applications | Residential |
| Inlet Size | 15mm (1/2") |
| Pressure Range | 150 - 350 kPa |
| Flow Range | 7.2 - 62.4 LPM |
| Warranty | 3 Years |
| Adjustable Ark | 40 - 360 Degrees |
| Spray Radius | 4.6m - 10.7m |
| Series | 3500 |
| Riser Material | Plastic |
APPLICATIONS
- Home lawns and landscaped gardens
- Small to medium turf areas
- Narrow planting strips and irregular-shaped zones
- Replacement for fixed spray heads where lower precipitation rates are required
