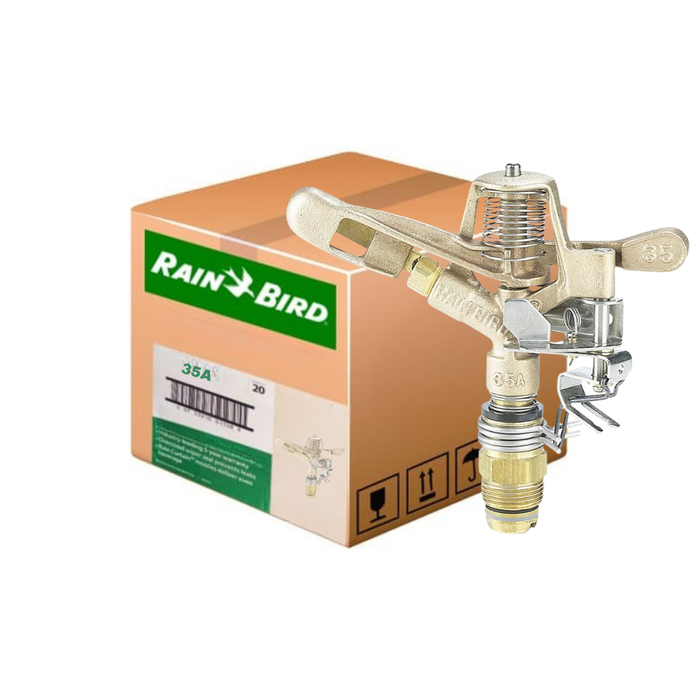

Rain Bird 35A Ajustable Full/Part Circle 20mm Male Brass Impact Sprinkler Body Only (Box of 10)

The Rain Bird 35A Brass Impact Sprinkler is a heavy-duty solution for versatile irrigation applications across agriculture and field systems. Designed with an adjustable trip slip pin, it easily converts from part circle to full circle operation, offering flexibility for different irrigation needs. Built from solid brass with stainless steel springs, a robust fulcrum pin, and chemically resistant washers, the 35A is engineered for durability in demanding environments.

This sprinkler body is ideal for row crops, field crops, wheel line systems, solid-set systems, and end-of-line positions, delivering dependable water distribution season after season. Available in two arm styles—Precision Jet (PJ) arm for smooth and accurate water streams, and TNT spoon arm for standard coverage—the 35A adapts to a variety of nozzle options to match site-specific requirements.

Packaged in a box of 10 sprinkler bodies, it’s a cost-effective choice for growers, contractors, and property managers maintaining large-scale installations. Backed by Rain Bird’s five-year Customer Satisfaction Policy, the 35A is a proven performer in both performance and longevity.

FEATURES

• Versatile Coverage: Adjustable trip slip pin enables full or part circle operation.
• Two Arm Styles: 35A-PJ with Precision Jet arm or 35A-TNT with spoon arm design.
• Durable Brass Construction: Built for long service life under heavy-duty use.
• Reliable Components: Stainless steel springs, fulcrum pin, and chemical-resistant washers.

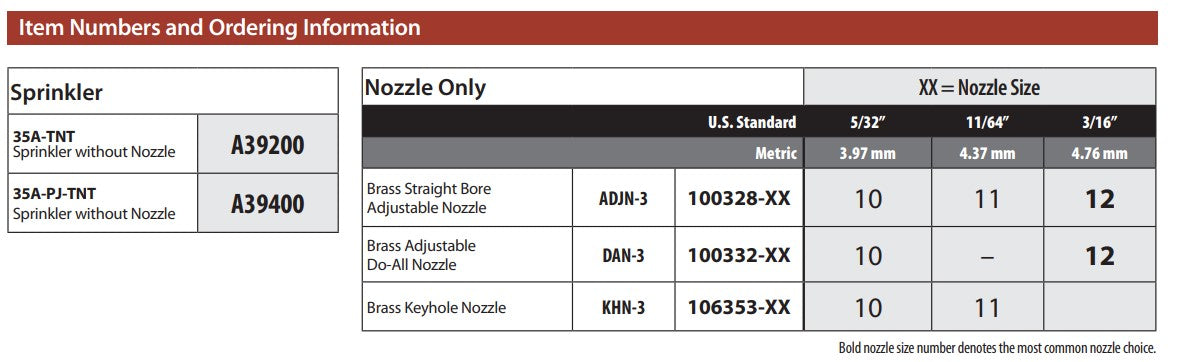

• Flexible Nozzle Compatibility: Works with Rain Bird ADJN-3, DAN-3, and KHN-3 nozzles (sold separately).
• Warranty: Backed by Rain Bird’s 5-year Customer Satisfaction Policy.
• Bulk Pack: Supplied in a box of 10 sprinkler bodies.

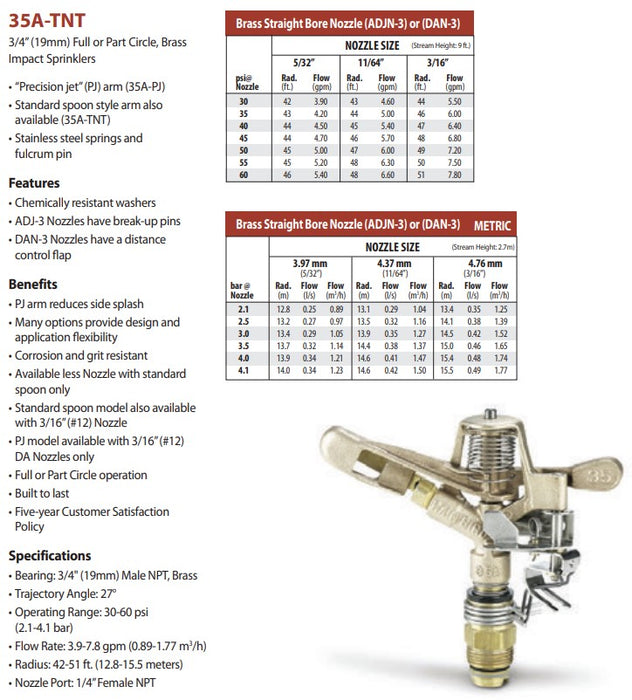

SPECIFICATIONS

• Connection: 3/4" (20 mm) Male NPT Brass Inlet Bearing
• Operation: Full or Part Circle
• Trajectory Angle: 27°
• Operating Pressure Range: 30–60 psi (2.1–4.1 bar)
• Flow Range: 3.9–7.8 gpm (0.89–1.77 m³/h)
• Radius: 42–51 ft (12.8–15.5 m)
• Nozzle Port: 1/4" Female NPT

APPLICATIONS

• Agricultural Irrigation: Row crops, field crops, and orchards.
• Wheel Line & Solid-Set Systems: Reliable in permanent or portable irrigation setups.
• Edge-of-Field Irrigation: Effective for end-of-line sprinkler positions.
• Contractor Supply: Cost-efficient bulk packaging for large projects.
