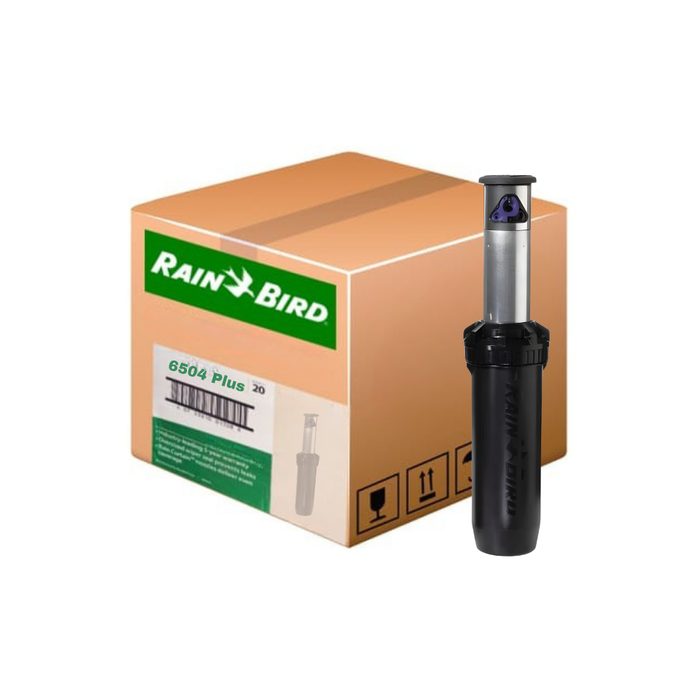

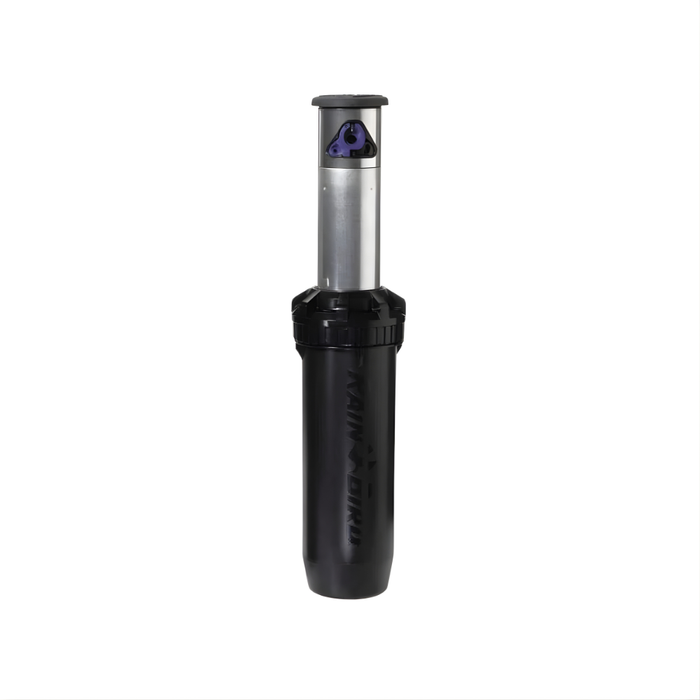

Rain Bird Falcon 6504 100mm Adjustable Gear Drive Sprinklers (12-20m / 25mm BSP)
Rain Bird 6504 100mm Adjustable Gear Drive Sprinklers (25mm BSP)
| DOWNLOAD PRODUCT BROCHURE |
| DOWNLOAD SPECIFICATION SHEET |
The Rain Bird Falcon 6504 Series represents the gold standard for high-performance irrigation in large turf and commercial applications. Engineered for precision, durability, and economy, the 6504 delivers full- or part-circle operation in a single unit, combining exceptional range and uniform water distribution through Rain Curtain™ nozzle technology. Each rotor provides even coverage from close-in to long-range, ensuring greener, healthier turf across parks, sports fields, and public landscapes.
Built to thrive in demanding environments, the Falcon 6504 features a multi-function wiper seal, tapered riser design, and heavy-duty construction for protection against debris and long-term wear. The ratcheting stem allows easy pattern alignment, while its SAM Seal-A-Matic™ check valve prevents low head drainage across elevation changes. Optional stainless steel riser models provide added vandal resistance, making the 6504 a trusted solution for councils and facility managers.
Designed with contractors in mind, this rotor’s versatility and easy maintenance make it ideal for medium-to-large installations requiring consistent, efficient coverage. Whether used for sports fields, golf course surrounds, parks, or commercial greenbelts, the Falcon 6504 Series offers unmatched reliability and water efficiency — all backed by Rain Bird’s five-year trade warranty.

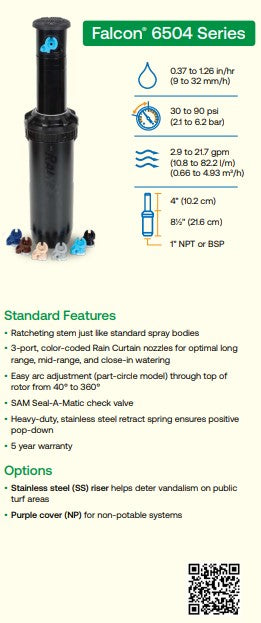

FEATURES
- Full- or part-circle operation (40°–360°) in one unit.
- Ratcheting stem for easy arc alignment and adjustment.
- Three-port, color-coded Rain Curtain™ nozzles for long, mid, and close-range watering.
- SAM Seal-A-Matic™ check valve prevents low head drainage.
- Heavy-duty, stainless steel retraction spring for positive pop-down.
- Multi-function wiper seal and tapered riser keep stem clear of debris.
- Optional stainless steel riser for added vandal protection.
- 5-year trade warranty.

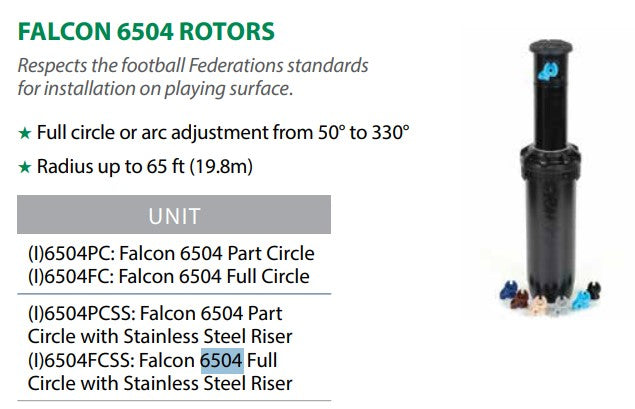

SPECIFICATIONS
- Precipitation Rate: 9–33 mm/h (0.37–1.31 in/hr)
- Radius: 11.9–19.8 m (39–65 ft)
- Pressure Range: 2.1–6.2 bar (30–90 psi)
- Flow Rate: 11–82 L/min (2.9–21.7 GPM / 0.66–4.93 m³/h)
- Inlet: 25mm (1") BSP or NPT female thread
- Trajectory Angle: 25°
- Elevation Hold: Up to 3.1 m (10 ft) with SAM check device
- Pop-Up Height: 100 mm (4")
- Overall Height: 216 mm (8½")
- Exposed Diameter: 51 mm (2")
- Included Nozzles: 10-grey, 12-beige, 14-light green, 16-dark brown, 18-dark blue
- Warranty: 5 years

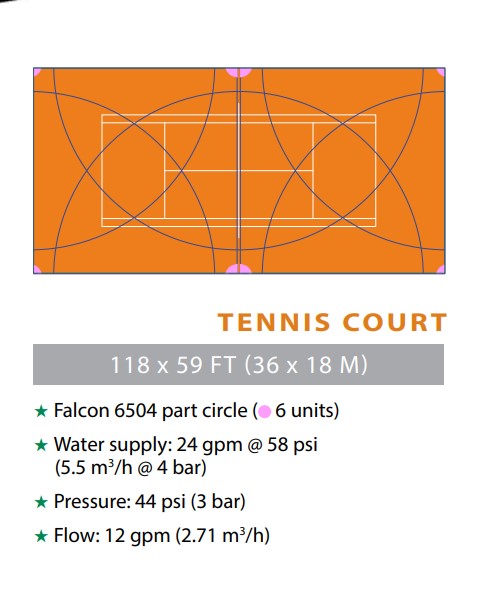

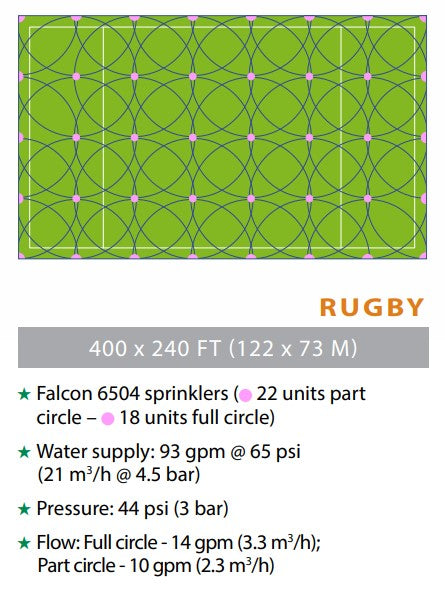

APPLICATIONS
- Sports fields & ovals – delivers uniform coverage and high durability for large turf areas.
- Public parks & recreation areas – ideal for councils and municipal installations.
- Commercial landscapes – perfect for schools, golf course surrounds, and industrial sites.
- Cemeteries & greenbelts – ensures consistent, gentle watering with minimal maintenance.
- Large residential estates – provides professional-grade irrigation efficiency and range.
DIMENSIONS
- Overall height: 21,6 cm (8 1/2")
- Pop-up height: 10,2 cm (4")
- Exposed surface diameter: 5,1 cm (2")
- Note: Pop-up height measured from the cover to center of nozzle. Overall body height is measured popped down
