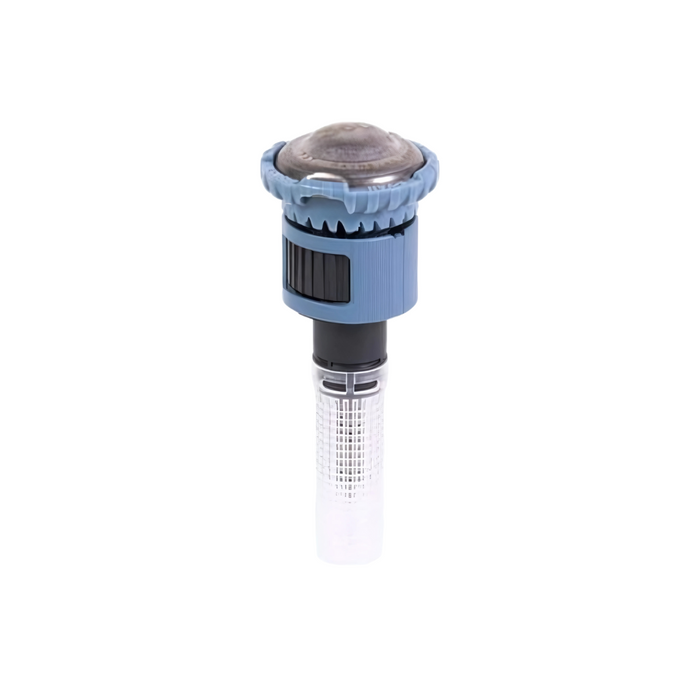

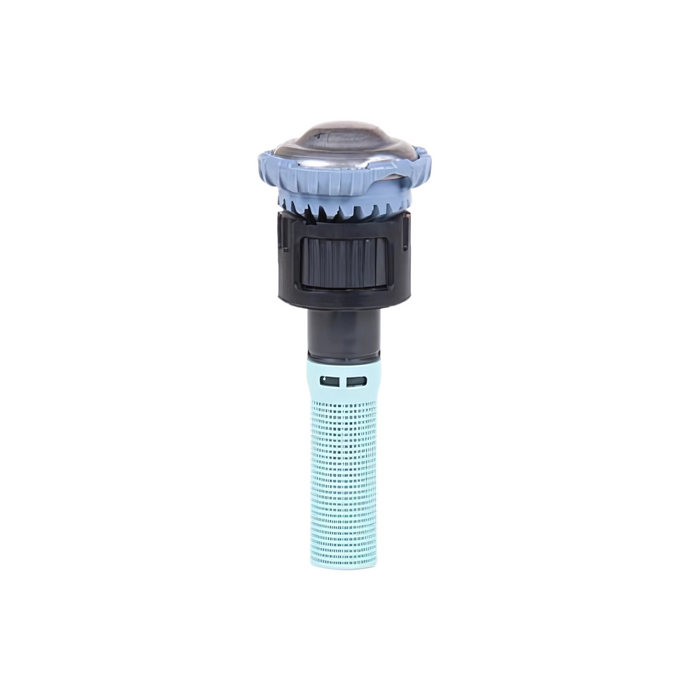

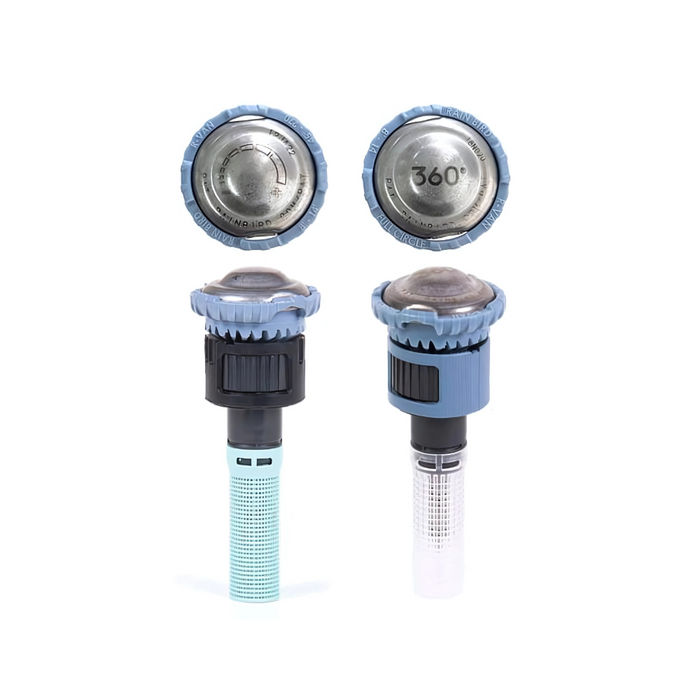

Rain Bird R-Van14 Adjustable Arc Sprinkler Rotary Nozzles - Female (2.4m-4.3m)
Rain Bird R-Van14 Adjustable Arc Rotary Sprinkler Nozzles - Female (2.4m-4.3m)
| DOWNLOAD BROCHURE |
| DOWNLOAD PERFORMANCE CHART |
The Rain Bird R-VAN14 Adjustable Arc Rotary Nozzles deliver outstanding water efficiency, design flexibility, and easy installation for residential and commercial landscapes. Using rotating stream technology, the R-VAN14 distributes water uniformly at a low precipitation rate, significantly reducing runoff and soil erosion while ensuring healthy plant growth.
Ideal for retrofitting standard spray nozzles, the R-VAN14 can reduce flow by up to 60% and improve water efficiency by up to 30%. Adjustments to arc and radius can be made by hand with no tools required, while the pull-to-flush feature helps keep nozzles clear of dirt and debris for consistent performance even in challenging conditions. Thick, wind-resistant streams ensure that water stays within the target zone without misting or fogging.
Engineered for compatibility with Rain Bird spray bodies, risers, and adapters, as well as Rain Bird 5000 MPR Rotors for matched precipitation, the R-VAN14 is an efficient, durable, and user-friendly solution backed by a three-year trade warranty.
FEATURES
- Water Efficient: Reduces flow up to 60% and improves efficiency up to 30%.
- Matched Precipitation: Consistent delivery across radii, arcs, and patterns.
- Tool-Free Adjustment: Arc (45°–270°) and radius easily adjusted by hand while running.
- Wind Resistant: Thick water streams cut through wind for accurate coverage.
- Debris Protection: Pull-up flush clears dirt and debris to maintain performance.
- Easy Identification: Color coded and laser marked for quick model recognition.
- Compatibility: Fits most Rain Bird spray bodies, risers, and adapters.
- Warranty: Covered by a 3-year trade warranty.
SPECIFICATIONS
- Spray Range: 2.4–4.3 m (8–14 ft)
- Arc Adjustment: 45°–270° adjustable
- Pressure Range: 30–55 psi (2.1–3.8 bar)
- Recommended Pressure: 45 psi (3.1 bar)
- Installation: Adjust arc and radius while water is running
APPLICATIONS
- Residential & Commercial Lawns: Efficient watering with reduced runoff.
- Slopes & Erosion-Prone Areas: Low precipitation design prevents soil washout.
- Retrofitting Systems: Upgrade standard spray nozzles for water savings.
- Windy Conditions: Thick water streams maintain accuracy and coverage.
