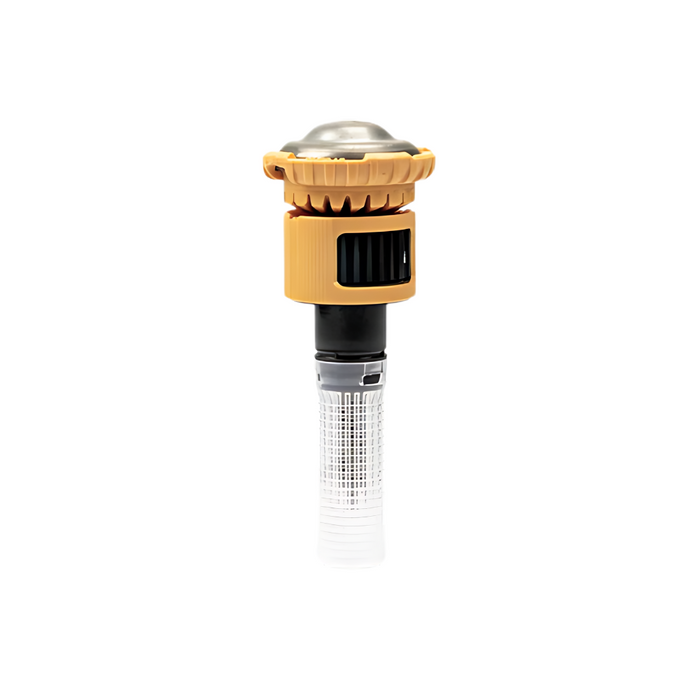

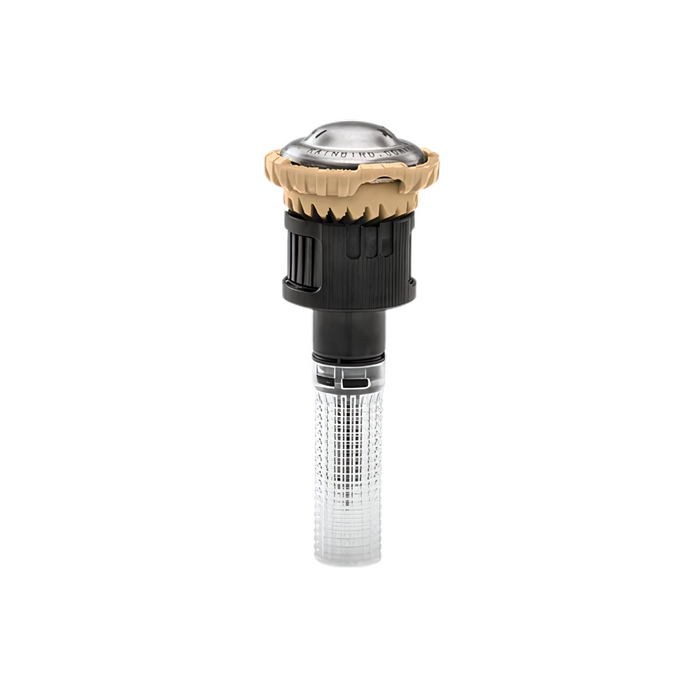

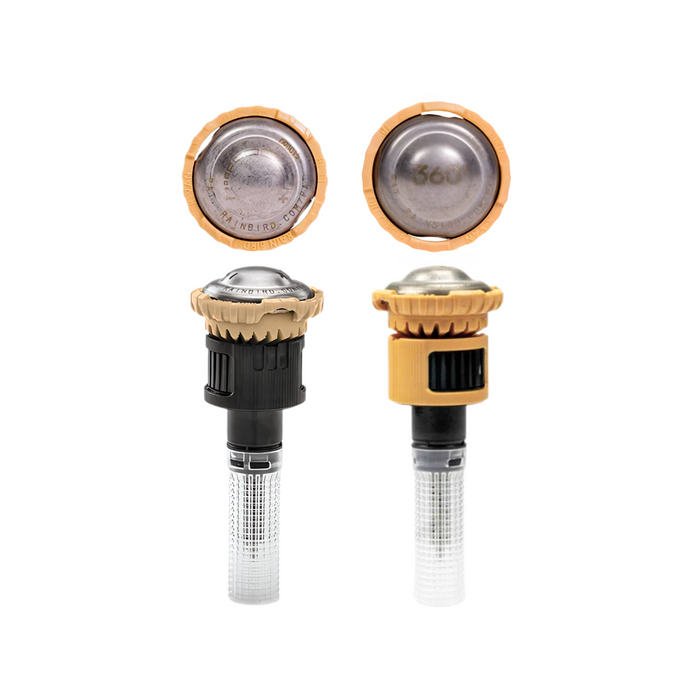

Rain Bird R-Van18 Adjustable Arc Sprinkler Rotary Nozzles - Female (4.0m-5.5m)
Rain Bird R-Van18 Adjustable Arc Sprinkler Rotary Nozzles - Female (4.0m-5.5m)
| DOWNLOAD BROCHURE |
| DOWNLOAD PERFORMANCE CHART |
The Rain Bird R-VAN18 Adjustable Arc Rotary Nozzles bring exceptional water efficiency and flexibility to your irrigation system. Designed with rotating stream technology, these nozzles apply water uniformly at a low precipitation rate, reducing runoff and erosion while ensuring healthy turf and plant growth.
Perfect for both new installations and retrofitting existing spray nozzles, the R-VAN18 can reduce flow by up to 60% and improve overall irrigation efficiency by up to 30%. Adjustments are quick and simple, with arc and radius easily changed by hand while water is running—no tools required. The pull-to-flush feature helps clear dirt and debris, keeping nozzles operating at peak performance.
Built to withstand real-world conditions, the R-VAN18 produces thick, wind-resistant streams that minimize misting and fogging. They’re compatible with Rain Bird spray bodies, risers, and adapters, as well as Rain Bird 5000 MPR Series Rotors for matched precipitation from 4.0–5.5 metres (13–18 feet). Backed by a three-year trade warranty, the R-VAN18 ensures reliable, efficient watering season after season.
FEATURES
- Water Efficient: Reduces flow up to 60% and increases efficiency up to 30%.
- Matched Precipitation: Consistent application across all R-VAN models.
- Tool-Free Adjustment: Adjust arc (45°–270°) and radius by hand.
- Wind Resistant: Thick water streams cut through wind with minimal drift.
- Debris Control: Pull-to-flush function keeps nozzles clear of dirt and debris.
- Easy to Identify: Color-coded and laser-marked for quick model recognition.
- Broad Compatibility: Works with Rain Bird spray bodies, risers, and adapters.
- Warranty: Supported by Rain Bird’s 3-year trade warranty.
SPECIFICATIONS
- Spray Range: 4.0–5.5 m (13–18 ft)
- Arc Adjustment: 45°–270° adjustable
- Pressure Range: 30–55 psi (2.1–3.8 bar)
- Recommended Pressure: 45 psi (3.1 bar)
- Adjustment Method: By hand while system is running
APPLICATIONS
- Residential & Commercial Lawns: Efficient watering with uniform coverage.
- Slopes & Erosion Control: Low precipitation rate reduces runoff.
- Retrofitting Systems: Upgrade fixed spray nozzles for water savings.
- Windy Environments: Reliable coverage with thick, wind-resistant streams.
