Rain Bird XLR 15-45° Adjustable Trajectory Big Gun Sprinklers

The Rain Bird XLR Series Big Gun Sprinklers are the world’s most advanced long-range rotors, designed to irrigate large areas with fewer units—saving water, time, and money. Built to the highest standards and equipped with industry-leading innovations, the XLR delivers unmatched durability and performance in agricultural irrigation, sports fields, dust suppression, and turf applications.

The adjustable trajectory model (15°–45°) provides ultimate adaptability, allowing you to fine-tune throw distances based on site-specific needs or environmental conditions. With a constant speed drive, independent of operating pressure and flow rate, the XLR maintains consistent rotation and uniform water application across its entire range. A nozzle that is 54% larger than the competition ensures maximized throw, while the optional Jet-Breaker improves distribution uniformity for precise coverage.

Engineered with only two field-serviceable components and constructed from advanced materials, the XLR is built to last, reducing maintenance costs and downtime. With multiple inlet options (2" NPT, BSP, or flange) and nine available nozzles (sold separately), it offers flexibility for a wide variety of high-demand applications.

FEATURES

• Adjustable Trajectory: 15°–45° for ultimate adaptability to site conditions.
• Long-Range Coverage: Radius of 81–177 ft (25.6–57.3 m).
• Constant Speed Drive: Maintains uniform rotation regardless of flow or pressure.
• Optimized Nozzle & Barrel Design: Ensures maximum throw distance and water distribution.
• Larger Nozzle Size: 54% larger than competitors for superior performance.
• Durable & Reliable: Only two field-serviceable parts for long-lasting use.
• Full & Part Circle in One Unit: Adjustable from 20°–340°.
• Optional Jet-Breaker: Improves distribution uniformity in challenging conditions.
• Multiple Inlets Available: 2" NPT, 2" BSP, or 2" flange.
• Warranty: Backed by a 1-year trade warranty.

SPECIFICATIONS

• Radius: 81–177 ft (25.6–57.3 m)
• Operating Pressure: 30–120 psi (2.1–8.3 bar)
• Flow Range: 35–379 gpm (7.9–86.1 m³/h)
• Inlet Options: 2" NPT, 2" BSP, or 2" flange

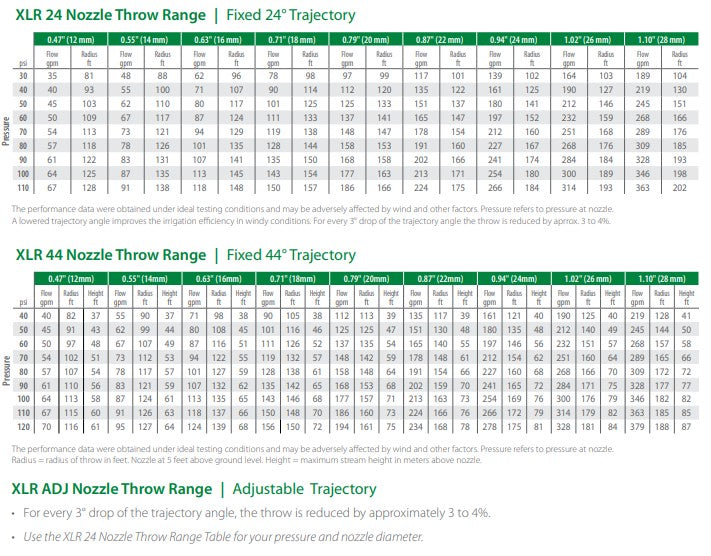

• Nozzle Trajectory: 24° fixed, 44° fixed, or adjustable (15°–45°)

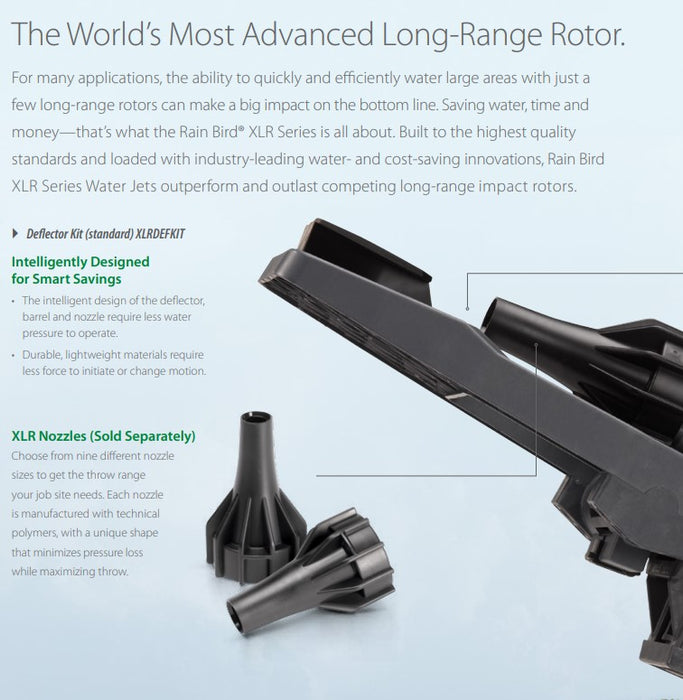

• Nozzles: Nine sizes available (sold separately)

APPLICAITIONS

• Agricultural Irrigation: High-uniformity water distribution for large fields, orchards, and crops.
• Sports Turf & Natural Turf: Reliable coverage for stadiums, golf courses, and large turf areas.
• Dust Control: Rapid and even suppression for feed yards, stables, mining, and equestrian facilities.
• Specialty Use: Log pile irrigation, cooling applications, and frost protection.
