Rain Bird 30H Full Circle 20mm Male Brass Impact Sprinkler Body Only (Box of 30)

The Rain Bird 30H Brass Impact Sprinkler is a rugged, versatile solution for large-scale irrigation systems. Built to handle a wide range of field applications—including hand lines, solid set systems, permanent set systems, and mechanically moved systems—this sprinkler is trusted for its durability and consistent performance.

Equipped with plastic non-clog vanes, the 30H ensures extended range and excellent wind resistance, delivering efficient coverage even under challenging field conditions. Its dual nozzle ports allow for both in-close and long-distance irrigation, making it an adaptable choice for diverse watering requirements.

Constructed from heavy-duty brass with stainless steel springs, a precision fulcrum pin, and a brass bearing sleeve, the 30H is built for long service life. Sold in a box of 30 sprinkler bodies, it’s an economical option for contractors, growers, and property managers operating large irrigation networks. Compatible with Rain Bird SBN-3 Straight Bore Nozzles or SBN-3-V Straight Bore Nozzles with Vane (sold separately).

FEATURES

• Full Circle Operation: Reliable uniform coverage for broad irrigation applications.
• Dual Nozzle Ports: Provides flexibility for in-close and long-distance watering.
• Durable Brass Construction: Built to withstand tough field environments.
• Plastic Non-Clog Vanes: Improve range and wind resistance for efficient irrigation.
• Reliable Components: Stainless steel springs, fulcrum pin, and brass bearing sleeve.

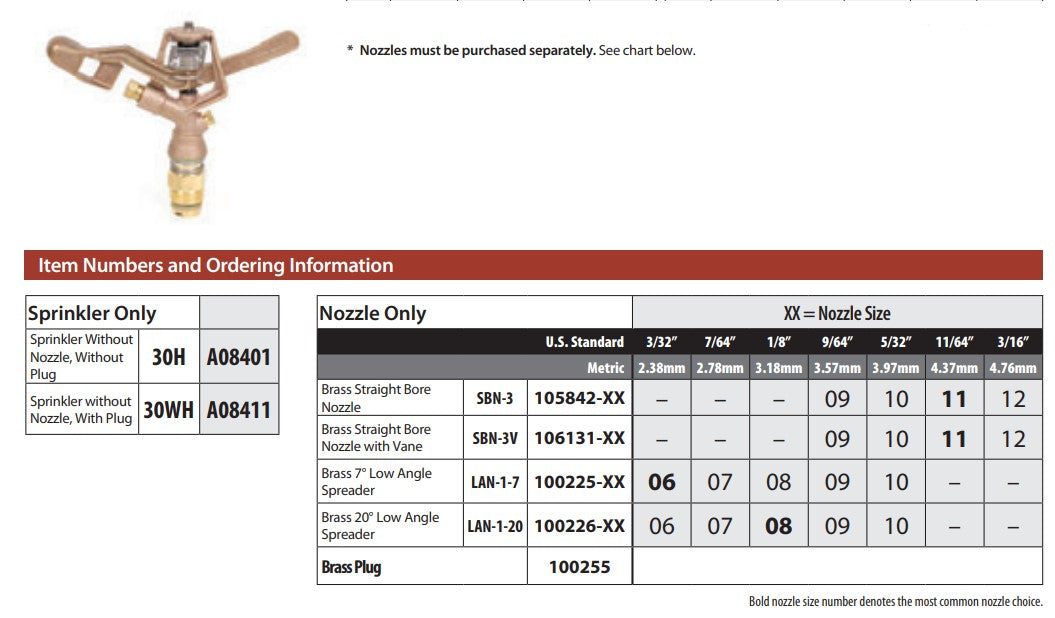

• Flexible Nozzle Compatibility: Works with SBN-3 and SBN-3-V nozzles (sold separately).
• Warranty: Supported by Rain Bird’s 5-year Customer Satisfaction Policy.
• Bulk Pack: Box of 30 sprinkler bodies for large-scale systems.

SPECIFICATIONS

• Connection: 3/4" (20 mm) Male NPT Brass Inlet Bearing
• Operation: Full Circle
• Trajectory Angle: 27°
• Operating Pressure Range: 25–80 psi (1.7–5.5 bar)
• Flow Rate: 2.9–13.1 gpm (0.51–1.47 m³/h)
• Radius: 40–56 ft (12.2–17.2 m)
• Nozzle Port: 1/4" Female NPT
• Spreader Nozzle Port: 1/8" Female NPT

APPLICATIONS

• Agricultural Irrigation: Field crops, row crops, and orchards.
• Permanent & Solid-Set Systems: Dependable performance in fixed installations.
• Mechanically Moved Systems: Strong operation under varying conditions.
• Large-Scale Irrigation Projects: Bulk packaging makes it ideal for growers and contractors.

PURCHASE REPLACEMENT NOZZLE HERE
