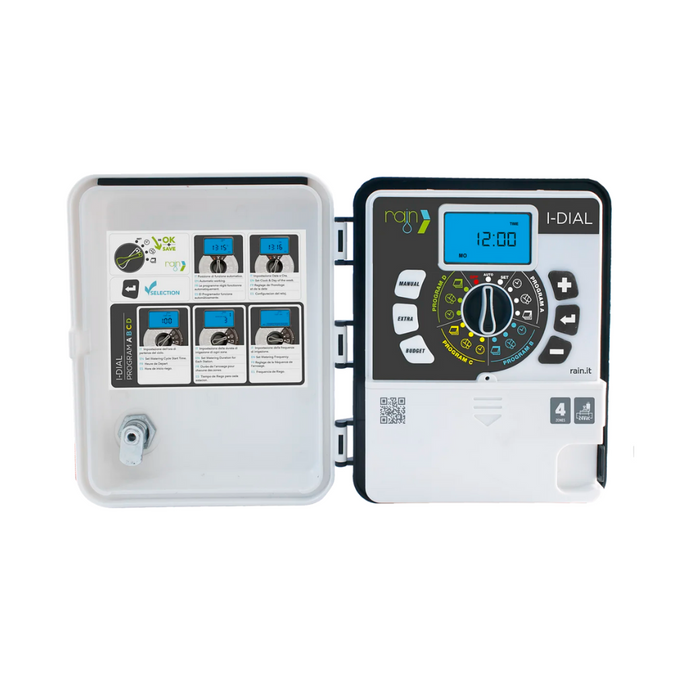

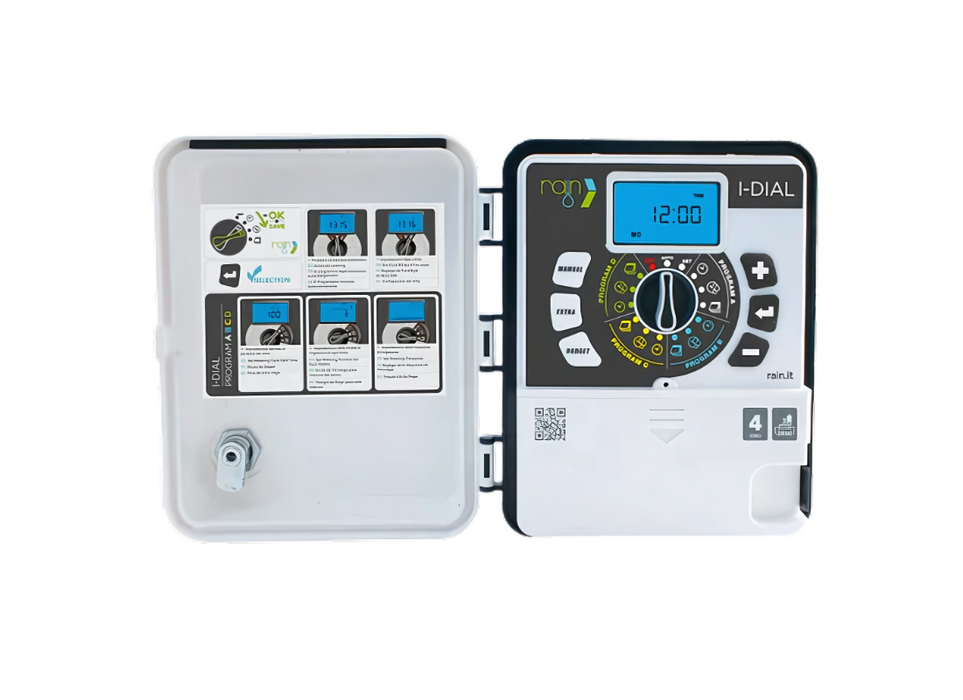

Rain I-Dial Outdoor Irrigation Controller with Easy Programming Function

The Rain I-Dial Outdoor is a robust, full-featured irrigation controller designed for residential, sports field, and municipal applications. With support for up to 12 zones, it features a simple yet powerful 3-step programming interface that lets you schedule irrigation in under 60 seconds—perfect for both homeowners and professional installers.

Housed in a durable, weather-resistant enclosure, the I-Dial Outdoor includes support for a rain sensor, pump/master valve control, and seasonal adjustments. A large 3" backlit display shows the complete irrigation schedule at a glance, reducing the need to navigate through complex menus. While powered by a built-in transformer (220V AC), the controller also includes a battery backup system to retain programs in the event of a power outage.

FEATURES

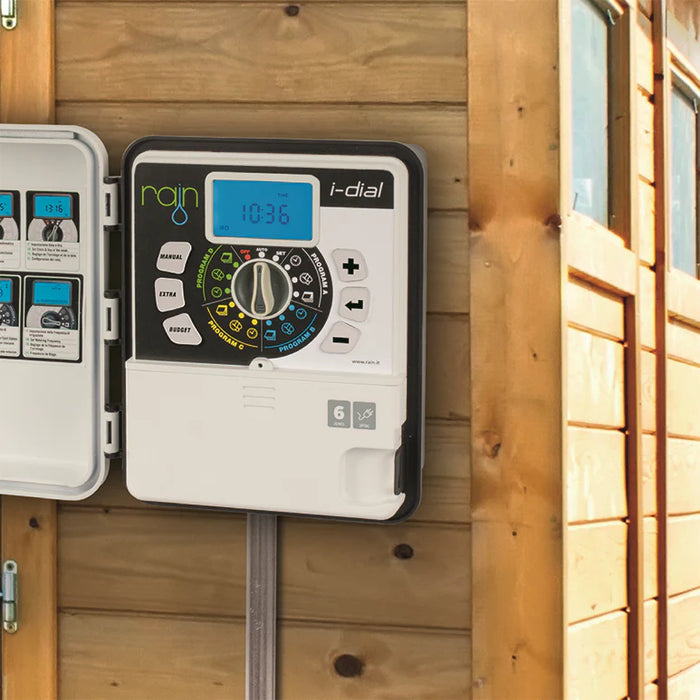

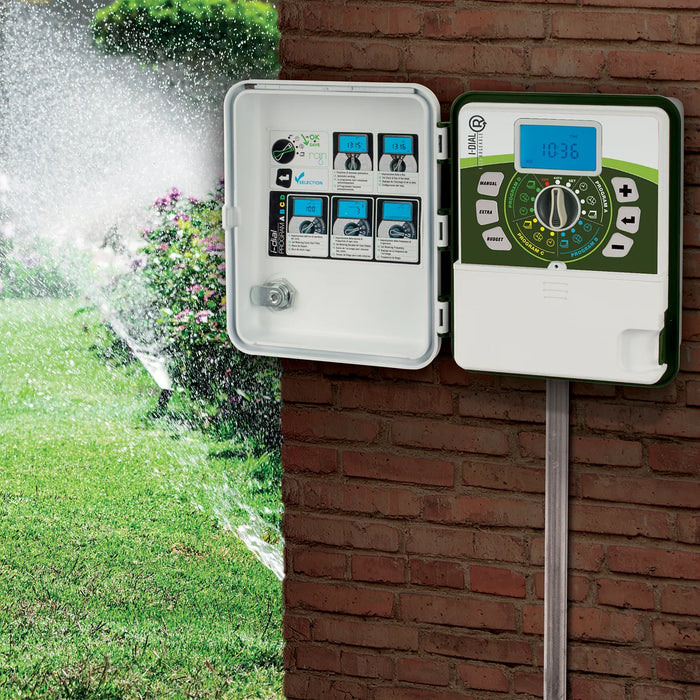

• Wall-mounted outdoor irrigation controller
• Supports 4, 6, 8, or 12 zones (model dependent)
• 3-step EASY programming for fast setup: choose time, duration, and frequency
• 4 programs with 1 start time each (maximum 4 starts per day)
• 3" backlit display shows full irrigation schedule at a glance
• Rain sensor input with zone-by-zone SENS START function
• Pump/master valve output with zone-by-zone PUMP START configuration
• Manual start by zone
• Seasonal adjustment from 10% to 200%

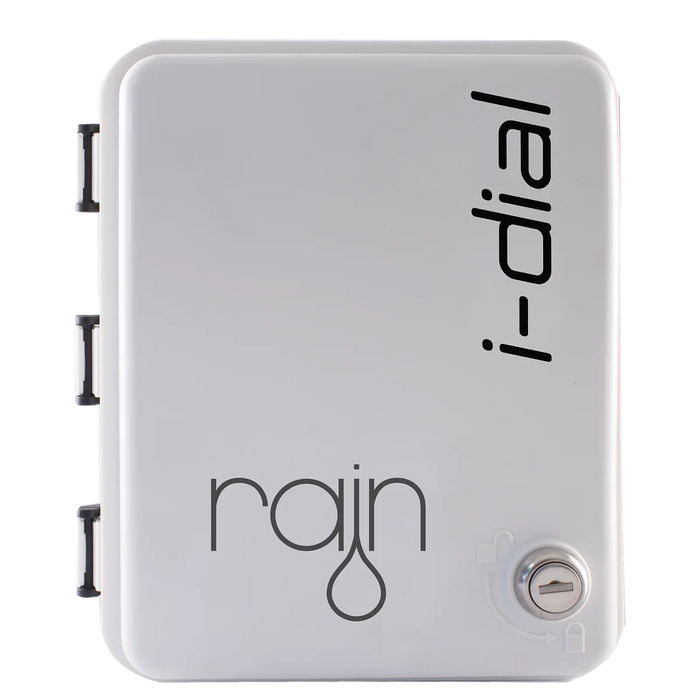

• Weather-sealed housing with closing lid
• Low battery warning indicator
• Reset and clear buttons for quick reconfiguration

SPECIFICATIONS

• Controller Type: Wall-mounted, outdoor
• Power Supply: 220V AC internal transformer → 24V AC output @ 0.8A
• Backup Power: 2 x AA 1.5V alkaline batteries (not included)
• Solenoid Compatibility: 24V AC normally closed
• Display: 3" backlit LCD
• Number of Zones: 4, 6, 8, or 12
• Operating Programs:
  • 4 independent programs
  • 1 start time per program
  • Max 4 start times per day
  • Irrigation duration: 1–240 minutes per zone
  • Frequency: daily to once every 15 days

APPLICATIONS

• Residential gardens and lawns
• Sports fields, public parks, and council irrigation zones
• Commercial properties and community landscapes
• Pump-controlled irrigation systems
• Retrofit upgrades where intuitive programming and 24V solenoids are required
