Rain Ionic Vision Outdoor Smart Controller with Bluetooth and Optional  Wi-Fi Connectivity

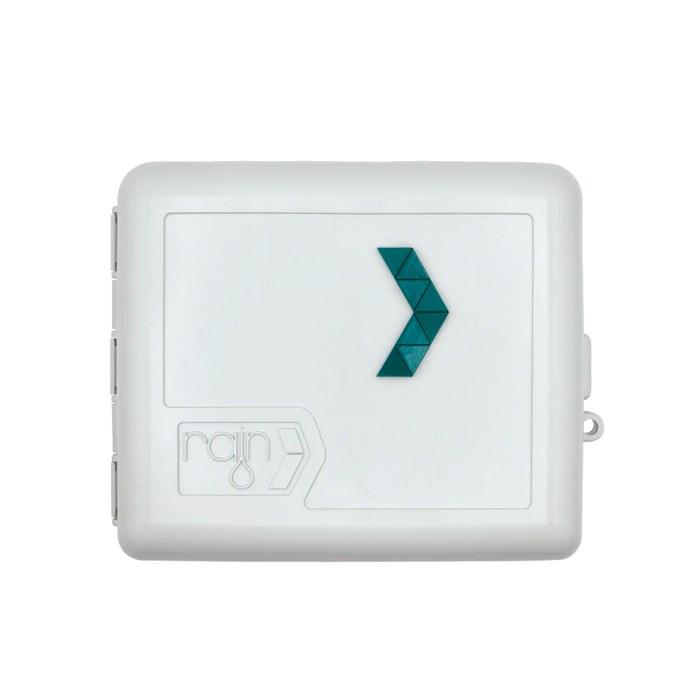

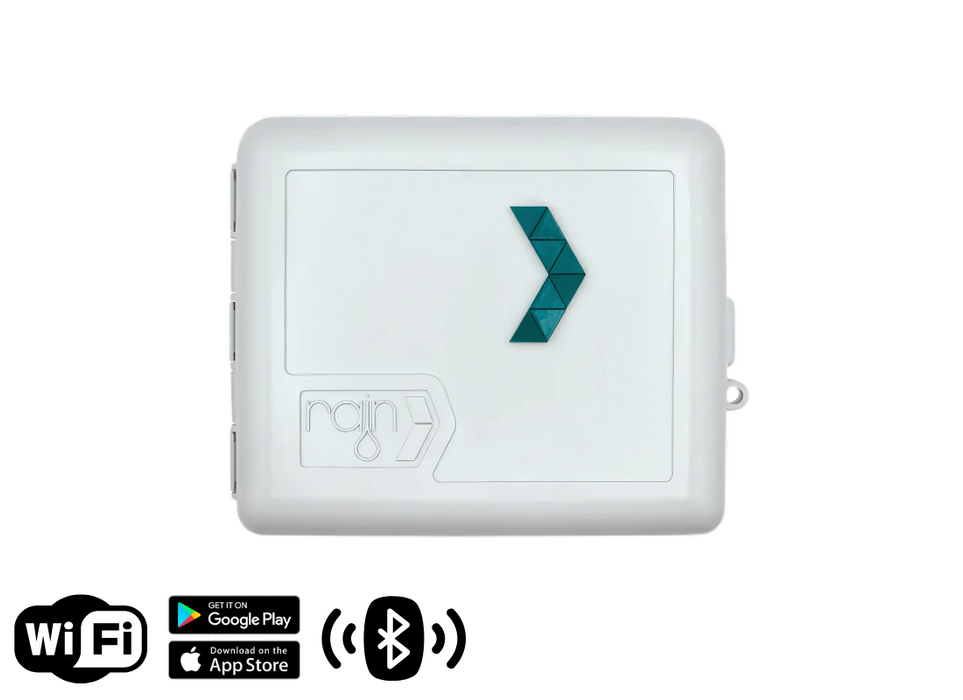

The Rain Ionic Vision Outdoor Controller is a versatile, smart irrigation solution designed for small to medium installations—from home gardens to light commercial landscapes. Featuring Bluetooth 5.0 and optional Wi-Fi connectivity through the Nuvola Vision hub, this wall-mounted controller allows seamless programming and full remote access through the Rain Vision App, available on iOS and Android.

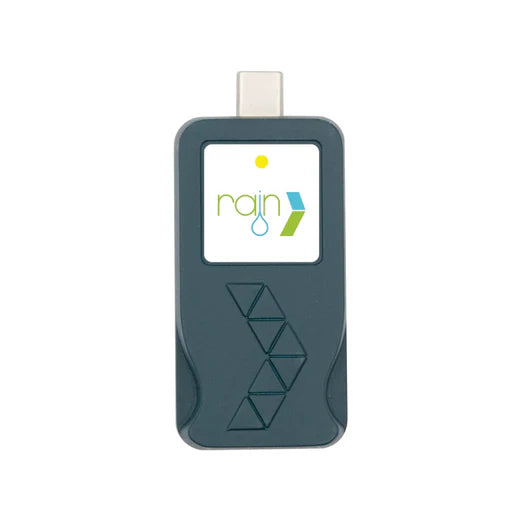

The optional Nuvola Mini Vision hub connects directly to your 2.4 GHz home Wi-Fi network, providing immediate cloud access without any additional devices. If needed, it can be removed and installed externally as a Wi-Fi extender to improve signal reach to the controller's location.

Available in 4, 6, 8, and 10-zone models, the Ionic Vision offers a simple, app-driven setup with multiple programming modes tailored for every user—from beginners to professional installers.

FEATURES

• Bluetooth 5.0 for local wireless programming via the Vision App
• Optional Wi-Fi connectivity with removable Nuvola Mini Vision module
• Wall-mounted outdoor design with protective casing
• Rain sensor input for water-saving automation
• Pump/master valve relay output
• 24V AC output for normally closed solenoids
• Available in 4, 6, 8, and 10-zone models
• Built-in backup battery for uninterrupted memory retention

SPECIFICATIONS

• Wall-mounted outdoor smart irrigation controller
• Available in 4, 6, 8, and 10-zone models
• Power supply: Internal transformer (220V AC 50–60 Hz → 24V AC, 1.25A)
• Backup battery: Integrated memory retention
• Connectivity:
  • Bluetooth 5.0 for direct programming via Vision App
  • Wi-Fi access via optional detachable Nuvola Mini Vision hub (2.4 GHz, 802.11 b/g/n)
• Rain sensor input: Yes
• Pump/master valve output: Yes (via relay control)
• Solenoid compatibility: Supports 24V AC normally closed solenoids
• Enclosure: Weather-resistant for reliable outdoor installation
• Nuvola Mini functionality:
  • Can be disconnected and installed externally as a Wi-Fi extender
  • No additional hardware required for cloud access

PROGRAMMING

• EASY Mode:
  Designed for balconies and small gardens. Up to 2 programs with 1 start time each, and watering frequency from once every 6 hours to once every 15 days.
• PRO Mode:
  For more technical applications like turf seeding or lawn renovation. Offers up to 6 starts per program—ideal for installers managing larger or complex systems.
• ONE-BY-ONE Mode:
  Flexible zone-by-zone scheduling with independent start times and frequencies per solenoid valve—perfect for precise, customized irrigation.
• Rain Vision App on iOS & Android
• Wi-Fi access via optional Nuvola Mini (2.4 GHz, 802.11 b/g/n)
• WebApp compatibility when paired with Nuvola for desktop access
• Bluetooth-based offline programming when Wi-Fi isn’t available

APPLICATIONS

• Home Gardens & Lawns

• Balconies & Courtyards

• Lifestyle Blocks & Hobby Farms

• Light Commercial Properties

• Greenhouses & Nurseries

• System Upgrades
• Installer-Friendly Jobs
