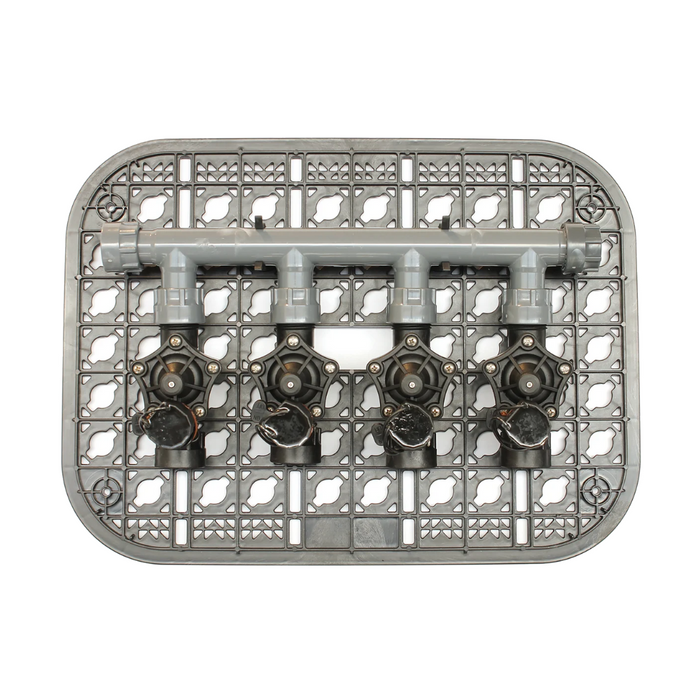

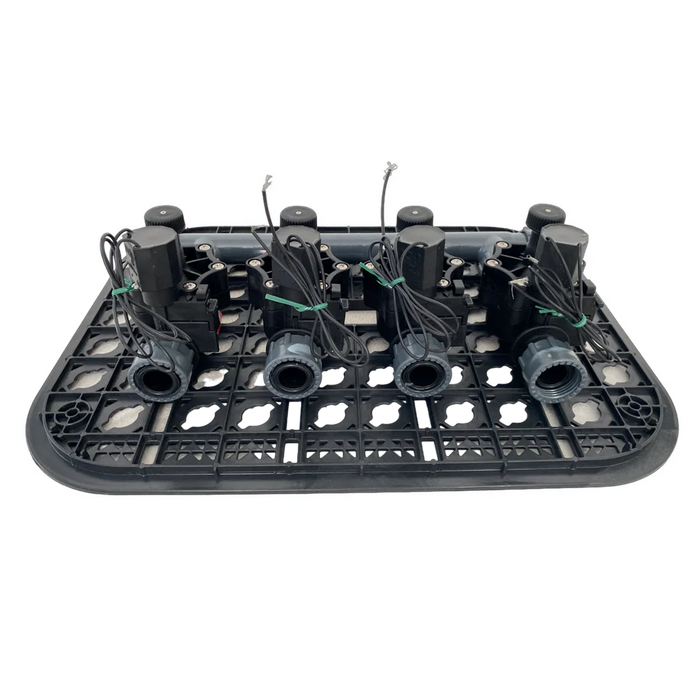

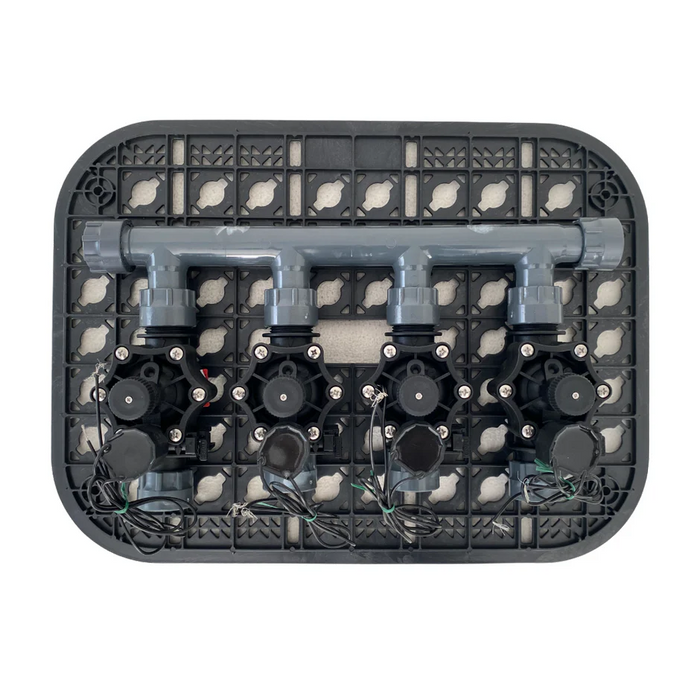

Rain Manifold Kit with 4x RN 154 25mm AC Male x Union Solenoid Valves and Raised Grid Manifold System

The Rain Manifold Kit with 4x RN 154 25mm AC Solenoid Valves is a complete, pre-assembled solution for fast and tidy valve box installation. Designed around the Rain RACK 113 System, this kit combines the durability of RN 154 solenoid valves with the convenience of Rain’s patented Manifold and Raised Grid System, allowing irrigation professionals to install and maintain systems quickly—with no tools required.

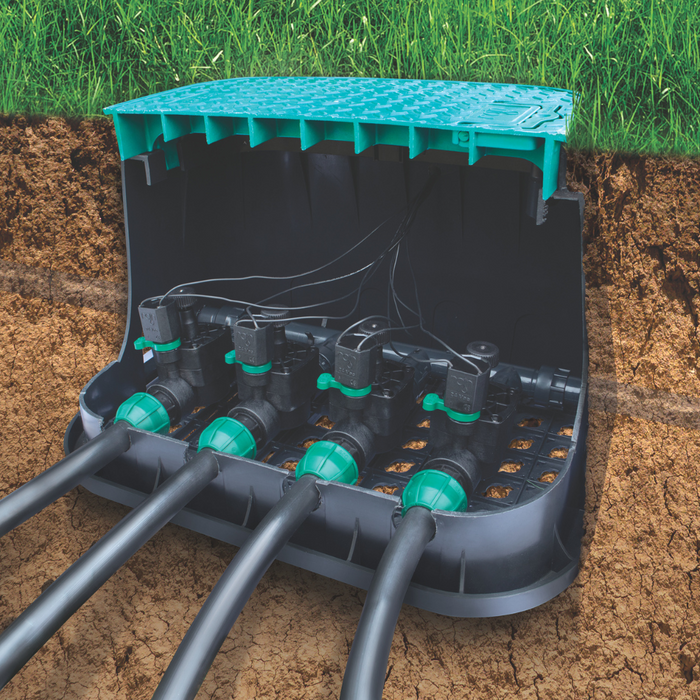

Ideal for residential and light commercial systems with flow rates from 20 to 90 L/min, this kit is compatible with the EZ-Open PZRM 113 valve box and can also be wall-mounted in pump sheds or control rooms, offering flexibility for a variety of layouts.

FEATURES

• Pre-assembled RACK 113 grid system with 4 x 25mm (1") RN 154 AC Male x Union solenoid valves
• Compatible with EZ-Open PZRM 113 valve boxes
• Includes: 4-way PVC manifold, 4 RN 154 valves, manifold cap, raised positioning grid

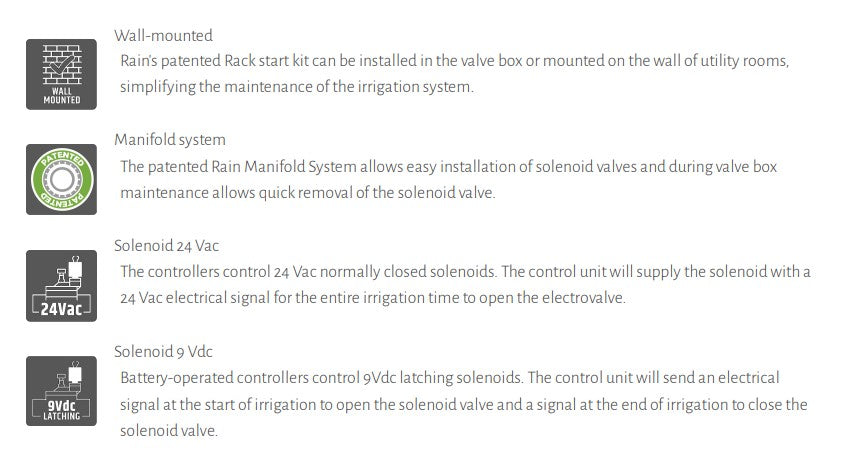

• Tool-free installation using Rain’s patented Manifold System
• Raised grid system keeps valves aligned, clean, and easy to access
• Wall-mountable design for pump rooms or utility areas
• Designed for 24V AC normally closed solenoids
• Manual bleed option and adjustable flow control on each valve

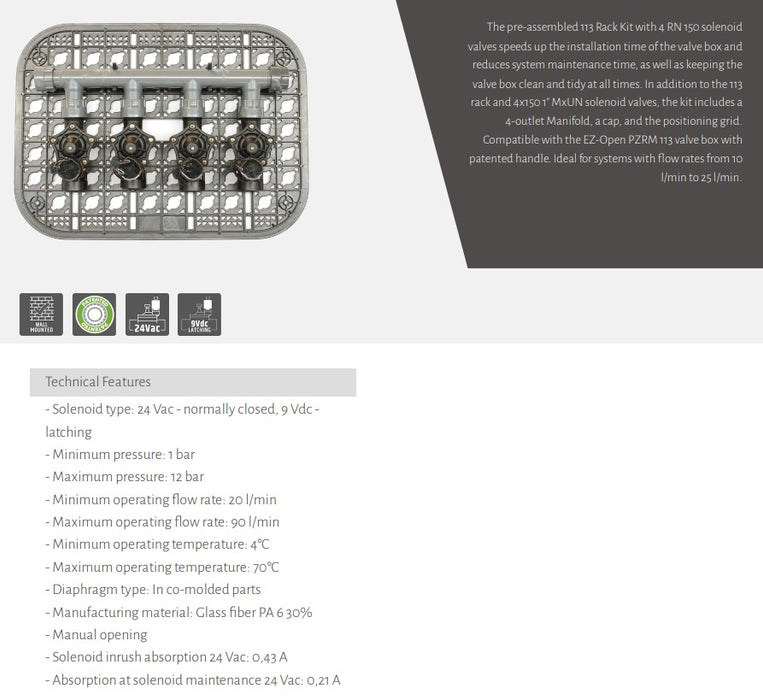

SPECIFICATIONS

• Valve Type: RN 154 – 25mm (1") Male x Union with flow control
• Solenoid Type: 24V AC, normally closed
• Inrush Current: 0.43 A
• Holding Current: 0.21 A
• Operating Pressure Range: 1 – 12 bar
• Flow Range: 20 – 90 L/min
• Temperature Range: 4°C – 70°C
• Valve Material: Glass fiber reinforced PA6 (30%)
• Diaphragm: Co-moulded composite diaphragm
• Installation Options: In-box grid mounting or wall mounting
• Included Components:
  • 4 x RN 154 AC 25mm Solenoid Valves
  • 1 x 4-Port Manifold
  • 1 x Manifold End Cap
  • 1 x Raised Positioning Grid (RACK 113)

APPLICATIONS

• Residential irrigation systems with up to 4 zones
• Commercial gardens or public green spaces
• Retrofit valve box upgrades using standard 1" solenoid valves
• Installations requiring quick valve replacement and maintenance
• Wall-mounted setups for easier access in mechanical rooms or pump sheds
• Flow-sensitive systems requiring built-in flow control
