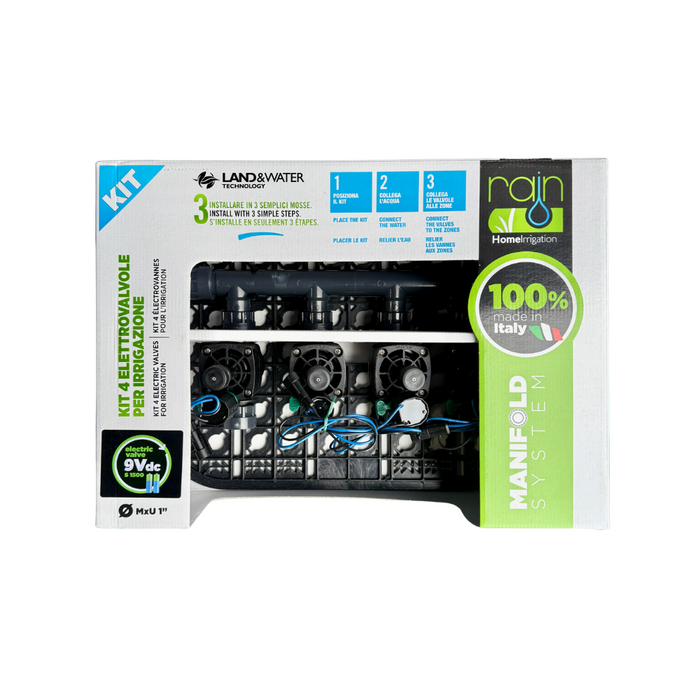

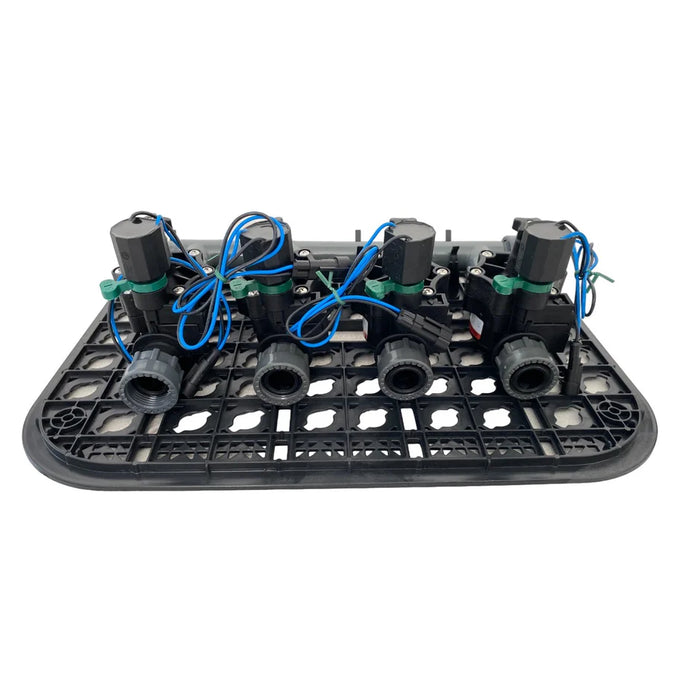

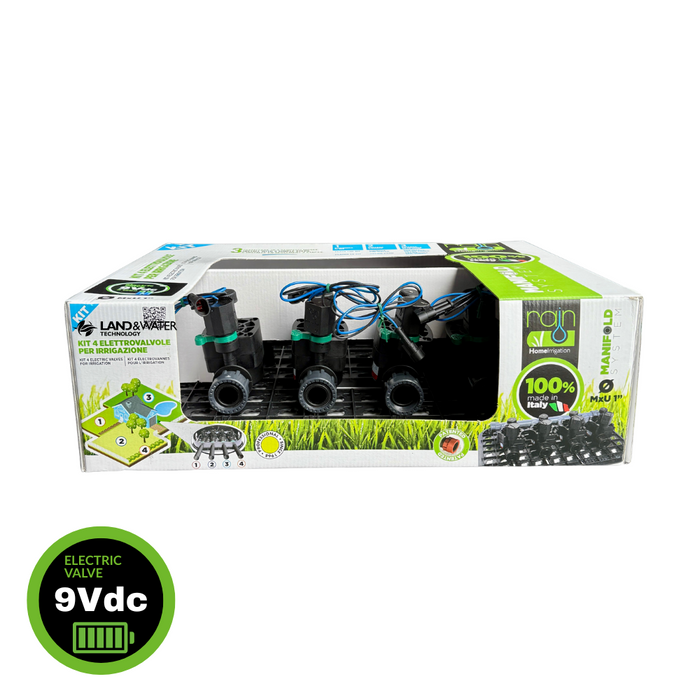

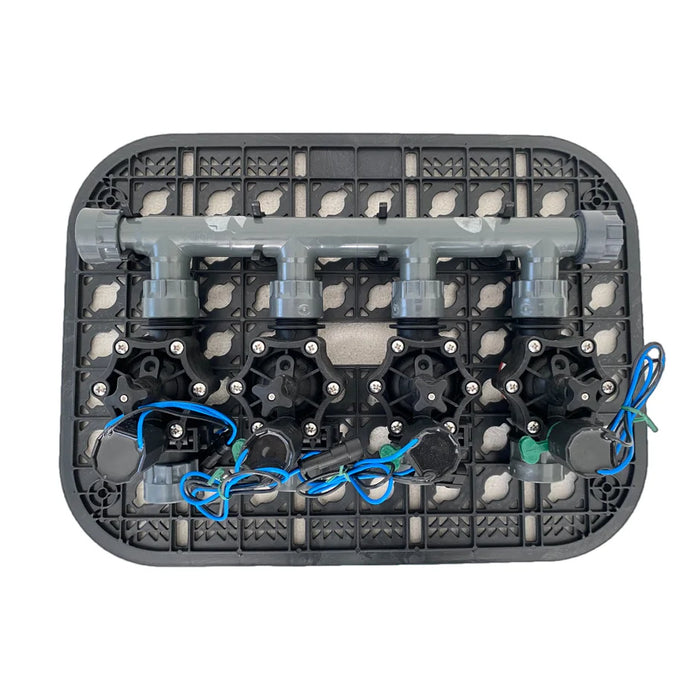

Rain Manifold Kit with 4x RN 154 25mm DC Male x Union Solenoid Valves and Raised Grid Manifold System

The Rain Manifold Kit with 4x RN 154 25mm DC Solenoid Valves is a pre-assembled, battery-friendly solution designed to simplify valve box installation and maintenance. Built on the proven RACK 113 raised grid platform, this kit includes four 9V DC latching solenoid valves with manual flow control and Rain’s patented manifold ferrule system, allowing for fast, tool-free servicing of each valve.

Perfect for off-grid or battery-operated irrigation systems, this kit is compatible with Rain’s PureVision, Amico+, and I-Dial R controllers, and can be installed inside a Rain EZ-Open PZRM 113 valve box or mounted on a wall in a control cabinet or pump room.

FEATURES

• Pre-assembled Rain RACK 113 grid system with 4 x 25mm (1") RN 154 DC Male x Union solenoid valves
• Designed for use with 9V DC battery-operated controllers
• Includes: 4-port PVC manifold, 4 solenoid valves, manifold end cap, raised valve positioning grid
• Tool-free manifold installation with patented ferrule connectors
• Compact, clean layout that keeps valves aligned and accessible
• Supports wall-mount or valve box installation
• Compatible with EZ-Open PZRM 113 valve box
• Each valve includes manual bleed screw and flow control

SPECIFICATIONS

• Valve Type: RN 154 – 25mm (1") Male x Union with flow control
• Solenoid Type: 9V DC latching (battery-powered)
• Signal Control: One signal to open, one to close (latched operation)
• Operating Pressure: 1 – 12 bar
• Flow Range: 20 – 90 L/min
• Operating Temperature: 4°C to 70°C
• Body Material: Glass fiber reinforced PA6 (30%)
• Diaphragm: Co-moulded elastomeric diaphragm
• Installation Options: Grid-mounted in valve box or wall-mounted
• Included Components:
• 4 x RN 154 DC 25mm Solenoid Valves
• 1 x 4-Port PVC Manifold
• 1 x Manifold End Cap
• 1 x Raised Positioning Grid (RACK 113)

APPLICATIONS

• Residential irrigation systems with up to 4 zones
• Commercial gardens or public green spaces
• Retrofit valve box upgrades using standard 1" solenoid valves
• Installations requiring quick valve replacement and maintenance
• Wall-mounted setups for easier access in mechanical rooms or pump sheds
• Flow-sensitive systems requiring built-in flow control
