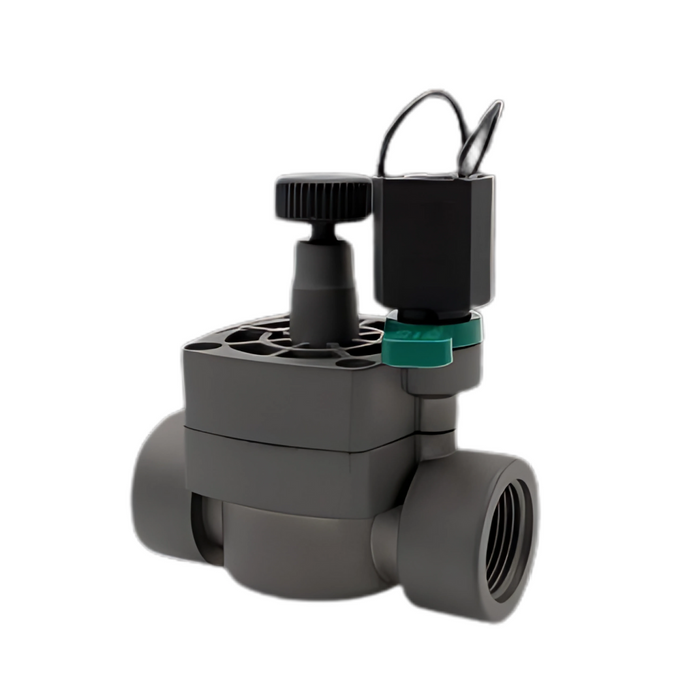

Rain RN 154 25mm Female BSP AC Solenoid Valve for Residential Irrigation with Flow Control

The Rain RN 154 is a robust and compact 25mm (1") solenoid valve, purpose-built for residential and light commercial irrigation systems. Designed for flow rates from 30 to 150 litres per minute, this high-performance valve delivers efficient water control, pressure resistance, and installation flexibility in both new and existing systems.

What sets the RN 154 apart is its patented Rain Manifold System, which allows the valve to be quickly installed, removed, or replaced—without tools. The 1" F model’s compact body length of just 11.2 cm ensures compatibility with tight valve boxes and even allows interchangeability with other leading irrigation brands.

The RN 154 is available in multiple thread types and supports both 24 Vac normally closed and 9 Vdc latching solenoids, making it adaptable to a wide range of controllers and applications. With manual operation capability and integrated flow control, it's a smart, durable solution for precise irrigation management.

FEATURES

• Ideal for residential and commercial irrigation
• Wide flow range: 30 to 150 L/min
• Integrated flow control and manual opening

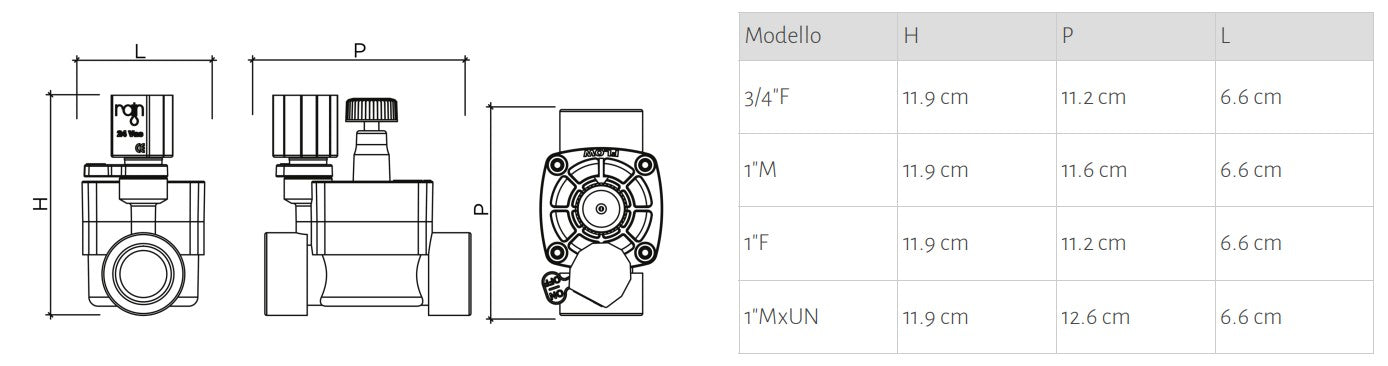

• Compact body for easy retrofitting (only 11.2 cm in length for 1" F model)
• Patented Manifold System enables fast, tool-free valve replacement
• Durable construction with 30% glass-filled PA6 nylon body
• Interchangeable with leading brands' valves in tight installations

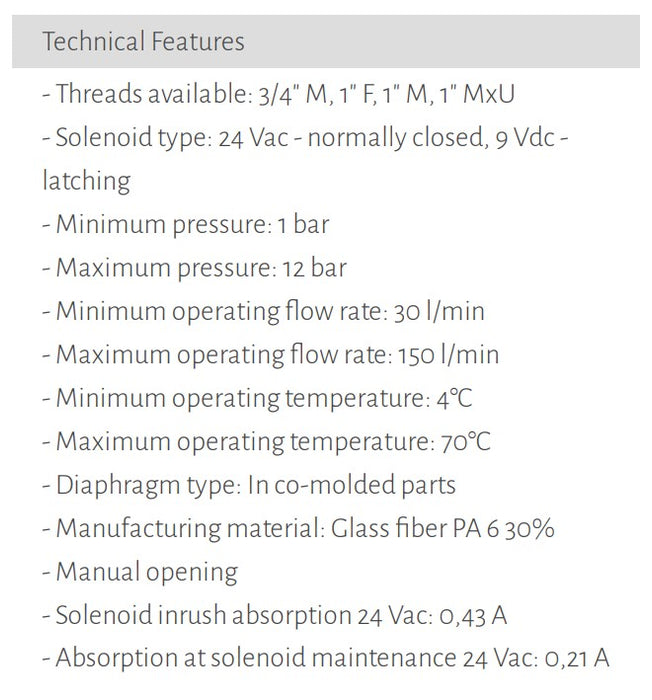

SPECIFICATIONS

• Thread Options: ¾" M, 1" F, 1" M, 1" MxUN

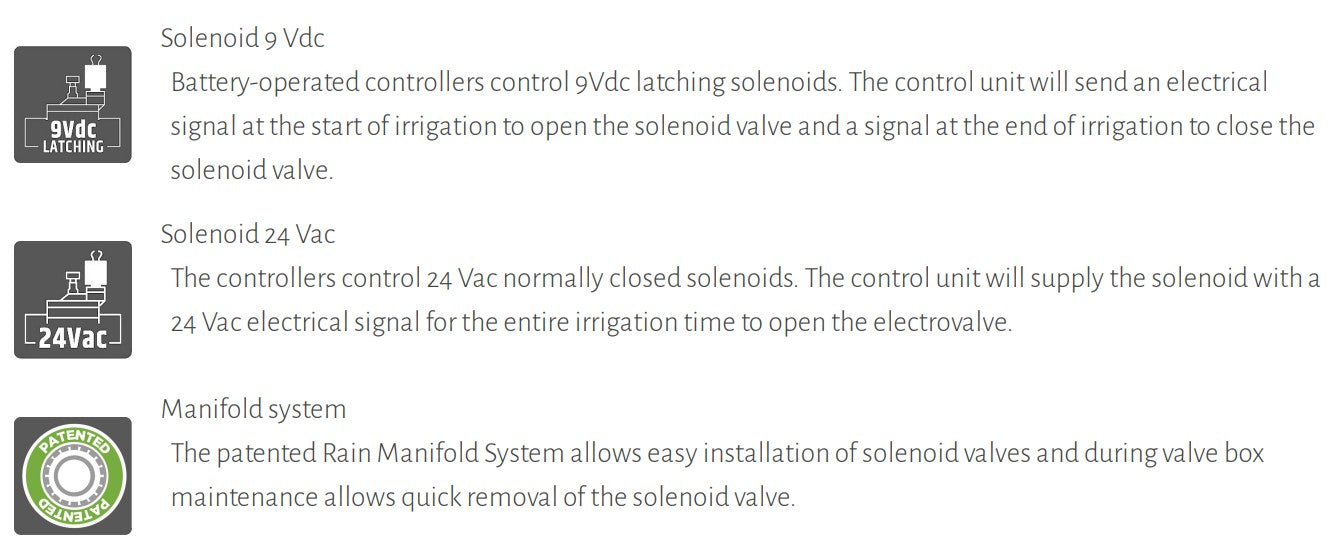

• Solenoid Types:
• 24 Vac (normally closed): continuous signal required during irrigation
• 9 Vdc (latching): pulse signal for opening/closing via battery controller
• Operating Pressure: 1 to 12 bar
• Flow Rate: 30 to 150 L/min
• Operating Temperature: 4°C to 70°C
• Material: Co-moulded diaphragm, PA6 30% GF body
• Inrush Current (24 Vac): 0.43 A
• Holding Current (24 Vac): 0.21 A

APPLICATIONS

• Residential lawns and gardens
• Light commercial landscapes
• New installations and retrofits using standard 1” valve threads
• Compatible with both AC-powered and battery-operated irrigation controllers
