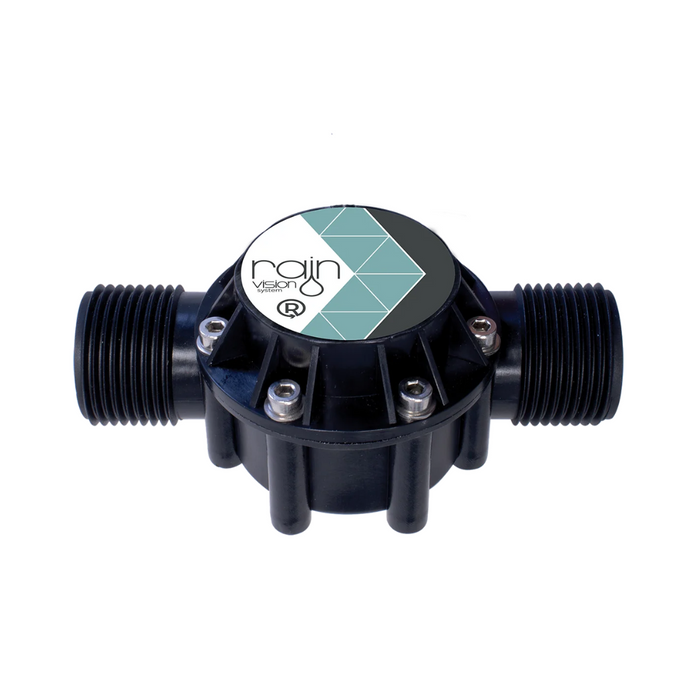

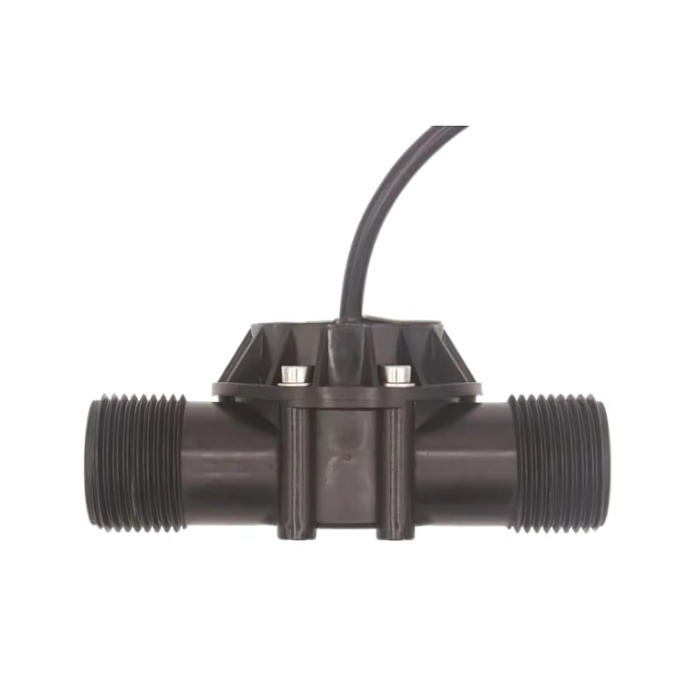

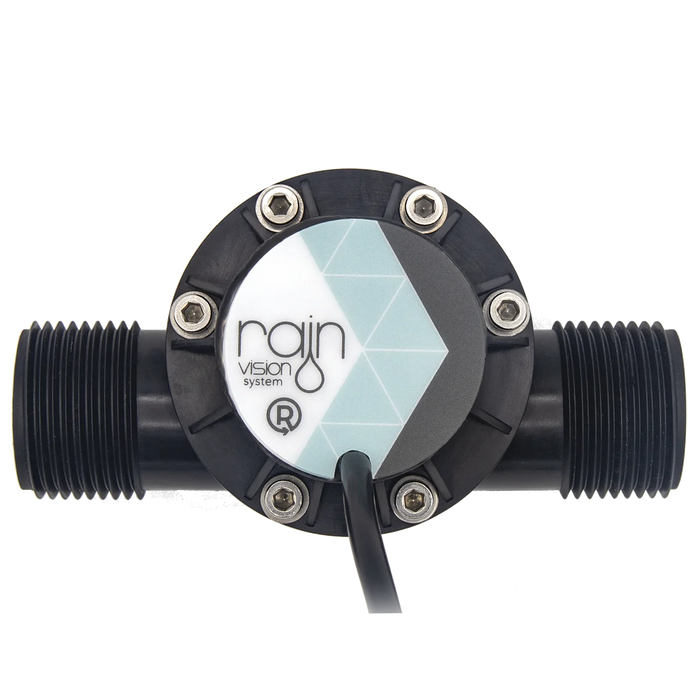

Rain Turbina Vision Inline Water-Powered Battery Charger for Rain Irrigation Controllers

The Rain Turbina Vision is a compact, inline water-powered battery charger designed to keep your Rain irrigation controllers reliably powered using the natural flow of water through your irrigation system. Ideal for remote installations, this innovative solution eliminates the need for external power or frequent battery changes by continuously charging the lithium batteries of compatible Rain devices.

Harnessing hydraulic energy, the Turbina Vision delivers up to 6.8 volts and 2 watts of power, ensuring consistent operation in the field. It comes equipped with four interchangeable nozzles to match different flow rates, and quick-connect fittings allow for fast, tool-free installation inside the valve box.

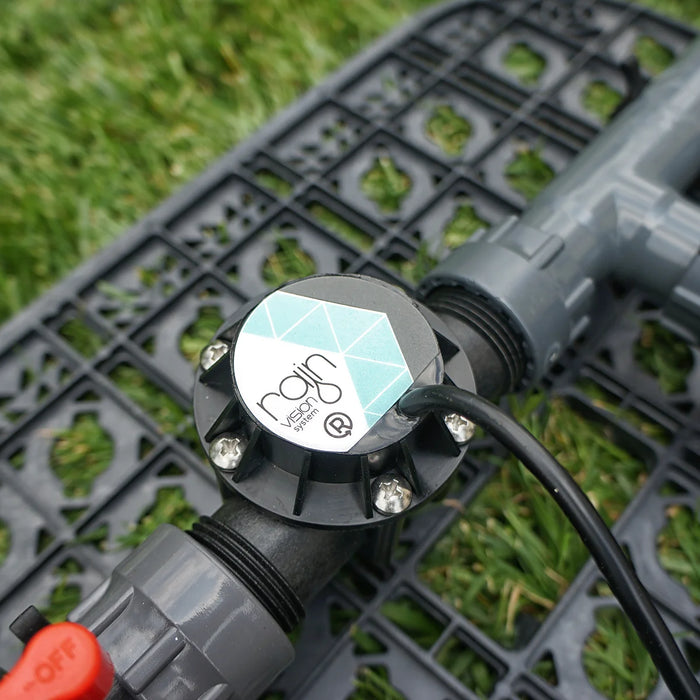

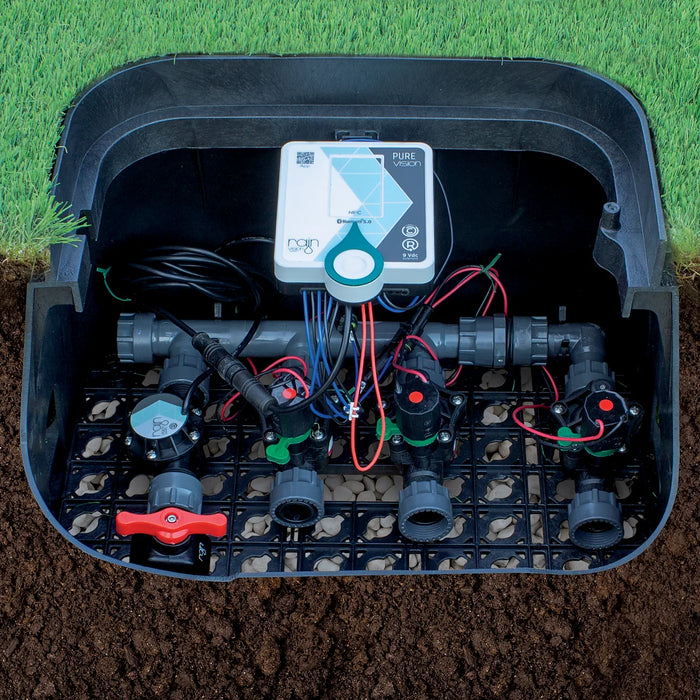

Compact and completely submersible (IP68 rated), the Turbina Vision installs directly inside the valve box with quick-connect fittings for a fast and effortless setup. It's engineered to perform in various field conditions and provides a sustainable source of power using nothing more than water pressure and flow.

FEATURES

• IP68 watertight (submersible)

• Minimum pressure: 1.5 bar

• Maximum pressure: 6 bar

• Maximum generated voltage: 6.8

• Maximum power generated: 2

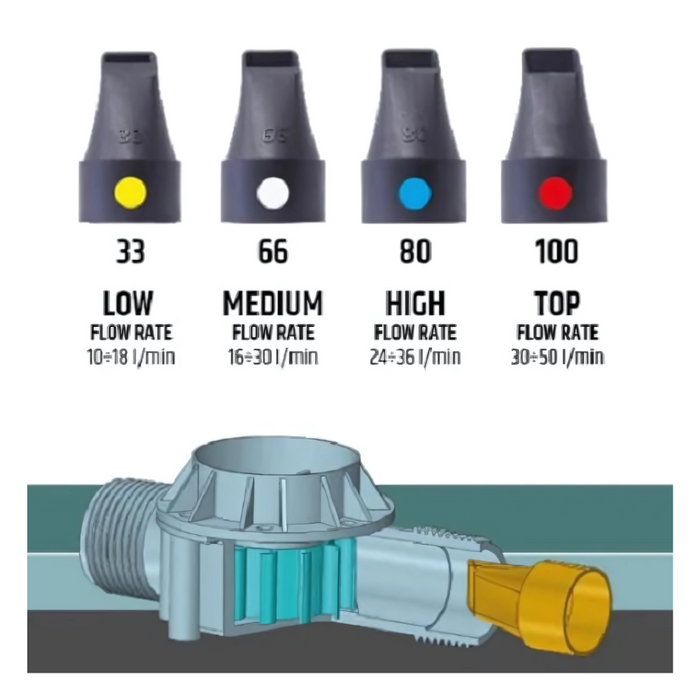

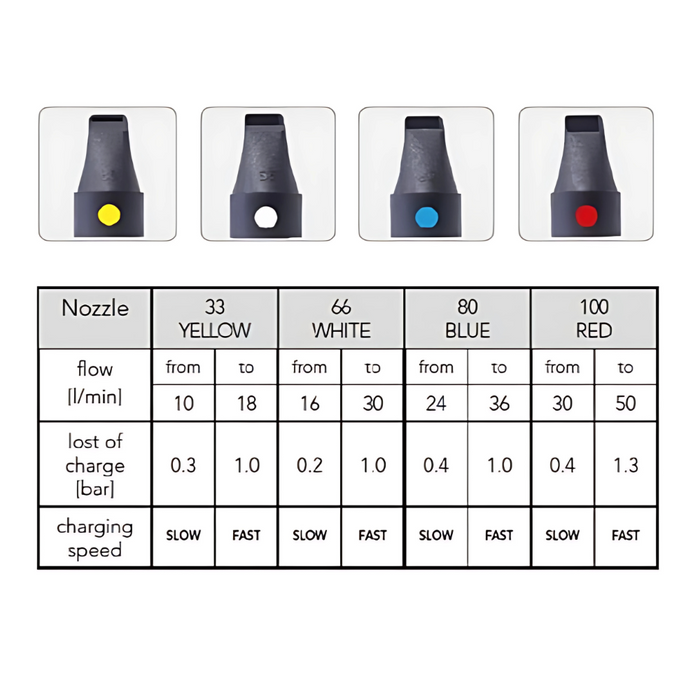

• 4 different nozzles

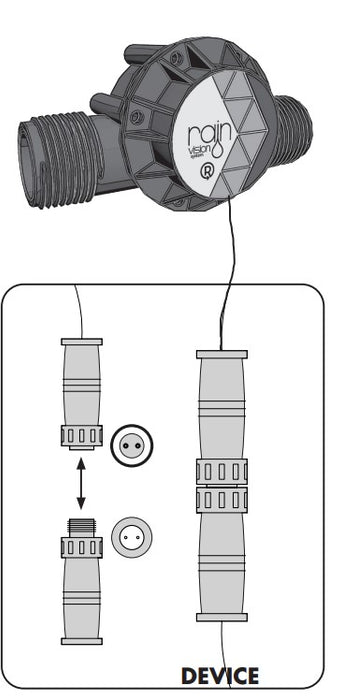

• IP68 quick connector to be recharged
• Designed in Italy

SPECIFICATIONS

• Flow Rate Requirement: 10–50 L/min
• Pressure Range: 1.5 – 6 bar
• Maximum Power Output: 2W
• Maximum Voltage Generated: 6.8V

INSTALLATION TIPS

• Always ensure the system flow rate and pressure are within the specified limits.

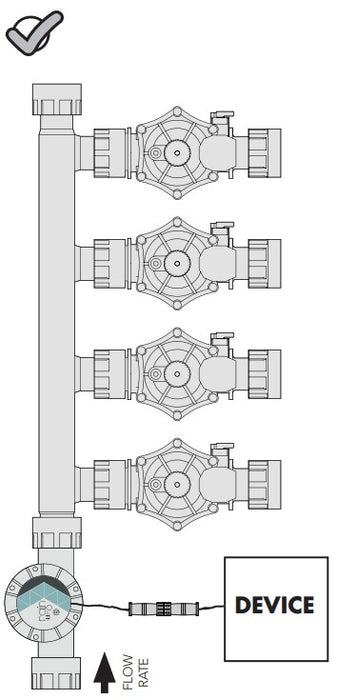

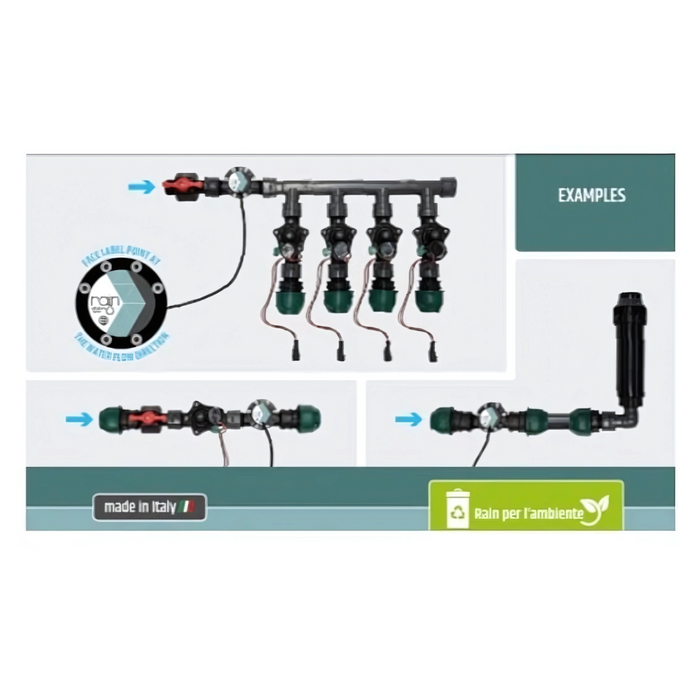

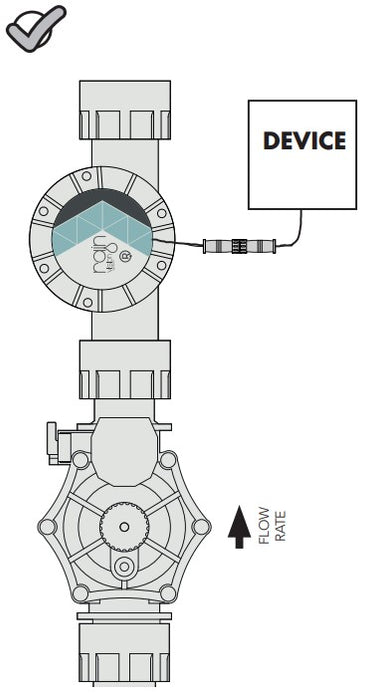

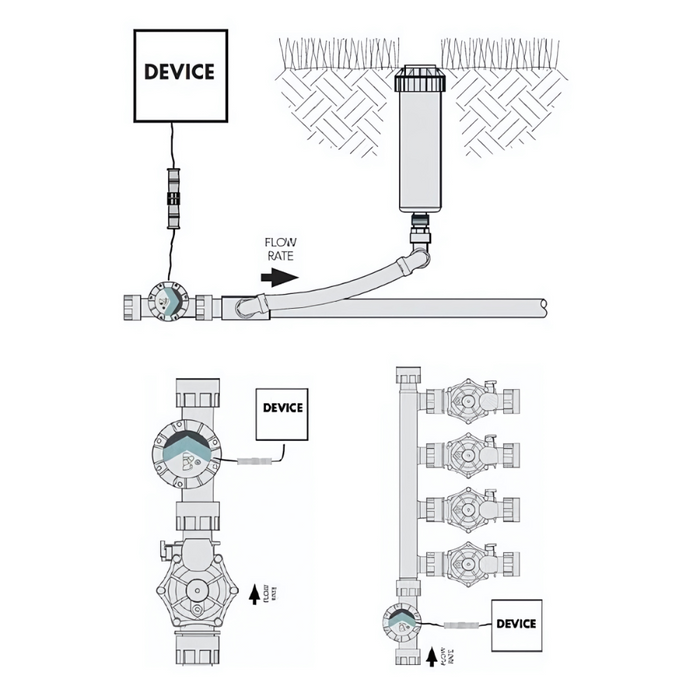

• Install the Turbina Vision inline before the controller to ensure efficient charging.
• Ideal for residential, agricultural, or remote irrigation systems where electrical infrastructure is unavailable or unreliable.
