Puretec Hybrid R1 Dual Stage Whole House UV Water Treatment System (75LPM)

Compact Whole-House Filtration & UV Disinfection for Rainwater and Mains Supply

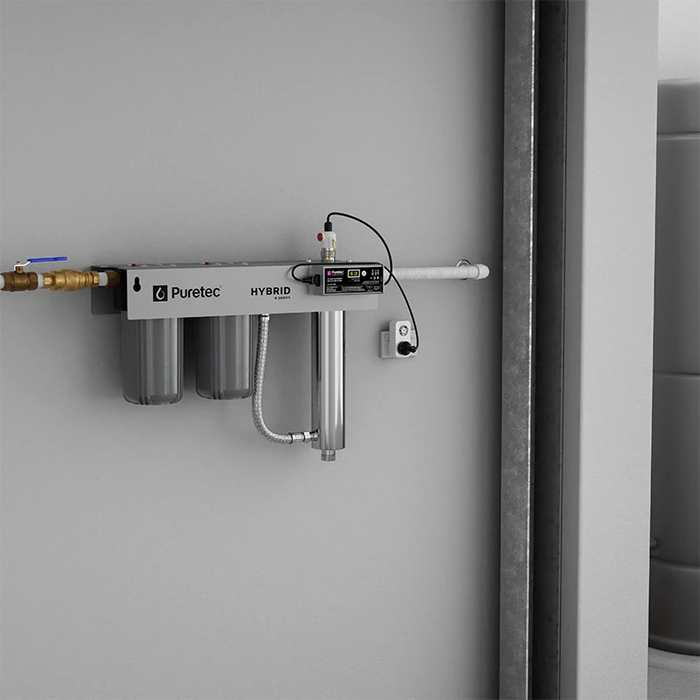

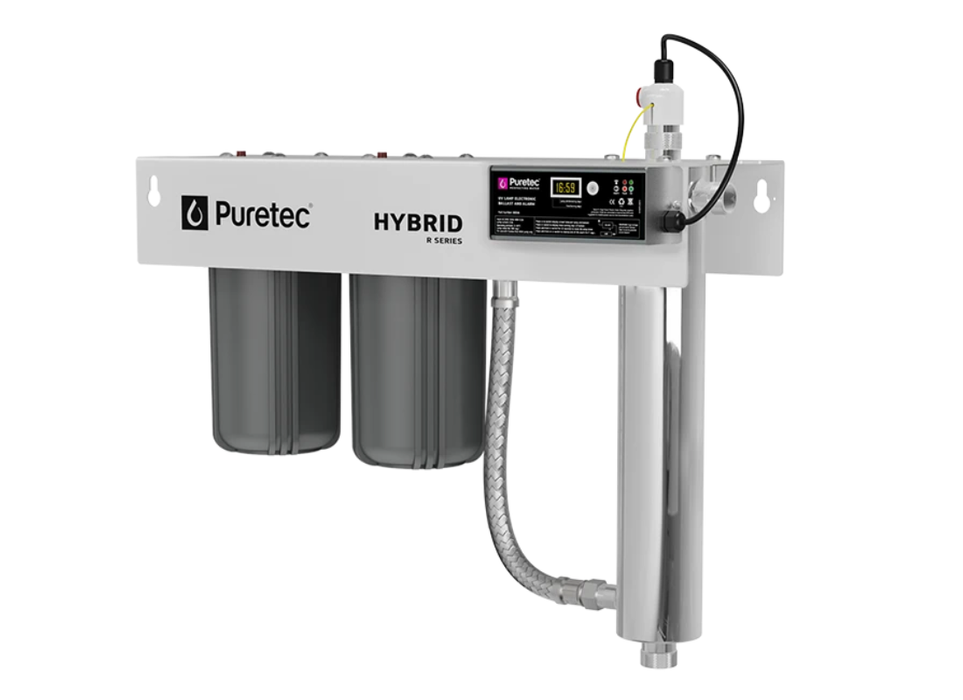

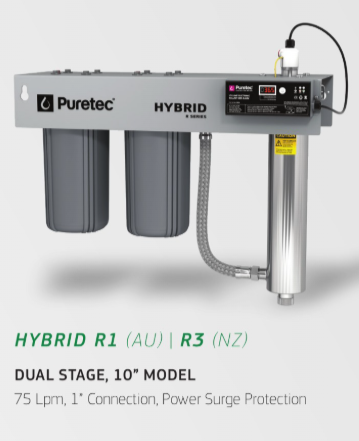

The Puretec Hybrid R1 is a compact, all-in-one whole-house filtration and ultraviolet purification system designed for smaller households using rainwater, tank water or mains supply. Combining dual-stage cartridge filtration with Radfire™ UV disinfection, the R1 removes sediment, chemicals, taste, odour and harmful microorganisms — providing safe, clean water to every tap in your home. With a maximum flow rate of 75 litres per minute, it is ideal for 1–2 bathroom homes wanting reliable, high-quality water treatment in a streamlined, easy-to-install unit.

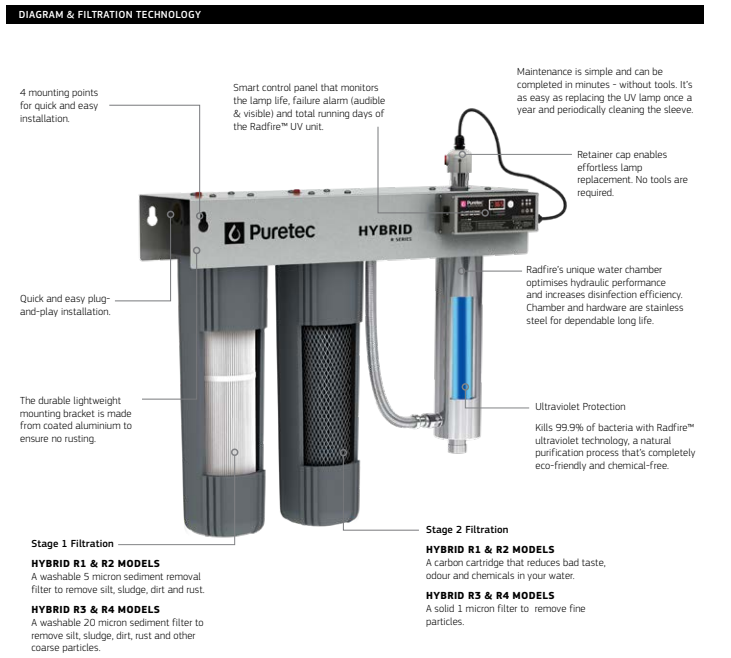

The Hybrid R1 features a reversible mounting bracket, allowing left-to-right or right-to-left plumbing for flexible installation (as shown on page 2 of the brochure). It incorporates a washable 5-micron sediment filter (PL05MP1) followed by a carbon cartridge (DP10MP1) that reduces chlorine, bad taste and odours. Water then passes through the Radfire™ stainless-steel UV chamber, which destroys 99.99% of bacteria including E. coli, Giardia and Cryptosporidium — as highlighted in the UV performance section on page 2.

Built for long-term reliability, the system includes a smart control panel with lamp life countdown, audible & visual alarms, and a retainer cap for tool-free UV lamp replacement. The durable aluminium mounting bracket resists corrosion, while the lightweight modular design ensures quick installation and easy servicing. Designed for indoor or protected outdoor locations, the Hybrid R1 is a dependable filtration and UV purification solution for smaller households seeking professional-grade whole-house water protection.

FEATURES

• Dual-stage filtration + UV disinfection in one compact unit
• Stage 1: 5-micron washable sediment filter removes dirt, rust, silt, sludge and particles
• Stage 2: Carbon cartridge reduces chlorine, taste, odour and chemicals (R1 model only)
• Radfire™ UV technology kills 99.99% of bacteria, viruses and cysts
• Reversible mounting bracket for left- or right-hand installation
• Smart control panel with UV lamp countdown timer & failure alarms
• Stainless-steel UV chamber for maximum UV clarity and durability
• Tool-free lamp replacement via retainer cap
• Quick plug-and-play installation
• Lightweight, anti-corrosion coated aluminium bracket

SPECIFICATIONS

• Model: HYBRID-R1
• Maximum Flow Rate: 75 L/min (10" housings)
• Filtration Stages:
  • Stage 1: PL05MP1 – 5 micron washable sediment
  • Stage 2: DP10MP1 – Carbon cartridge (taste & odour reduction)
• UV Lamp: 46 W (RL6)
• Quartz Sleeve: RQS6
• UV Performance:
  • 40 mJ/cm²: 54 L/min
  • 30 mJ/cm²: 70 L/min (industry standard)
  • 16 mJ/cm²: 130 L/min
• Connection Size: 1” BSP (25 mm)
• Operating Pressure: 300–875 kPa*
• Temperature Range: 0–52°C
• Installation: Indoors or weather-protected locations only
• Bracket Material: Coated aluminium (anti-corrosion)
• Warranty: 3 years (1 year parts & labour + 2 years parts only)


APPLICATIONS

• Small homes, cabins or units (1–2 bathrooms)
• Whole-house rainwater and tank-water treatment
• Mains water polishing for chlorine, taste and odour reduction
• Rural and semi-rural properties needing bacteria-safe water
• Protection for plumbing, hot water systems and appliances
