Signal SD-AN-1000 9.0dB 2m High Gain Omni-Directional Antenna for Maximum Gain and Extended Coverage

The Signal SD-AN-1000 is a premium 9.0dB high gain omni-directional LTE antenna engineered for maximum signal range and coverage in the most challenging environments. Designed specifically for remote, fringe, or low-reception areas, this 2-metre-long antenna delivers exceptional performance across the full 698–2700 MHz 4G/LTE spectrum, making it ideal for boosting connectivity on Signal SDS Series modems and other wireless devices.

Built using a patented PCB-based collinear design, the SD-AN-1000 ensures stable 360° signal patterns with minimal loss, even in long-distance or weak-signal installations. Its rugged black fibreglass construction, stainless steel mounting tube, and IP65-rated sealing make it highly durable and suitable for year-round outdoor use.

Supplied complete with a 10m low-loss cable, FME-to-SMA adaptor, and two steel hose clamps, this antenna is ready for rapid deployment in rural pump sheds, metal cabinets, pole mounts, or remote telemetry applications.

FEATURES

• 9.0dB high gain omni-directional LTE antenna for maximum range
• Full-band 4G LTE support from 698–2700 MHz
• PCB-based collinear internal design ensures stable and efficient signal radiation
• Ideal for poor reception, rural, fringe, and remote area installations
• Heavy-duty fibreglass radome with stainless steel mounting hardware
• Supplied with 10m low-loss RG58 cable and SMA adaptor
• Mounting tube and 2 steel hose clamps included for secure attachment
• Compatible with Signal SD-MD 4G modem and other LTE-enabled devices

APPLICATIONS

• Extending LTE/4G signal reach for Signal SDS irrigation modems
• Rural, agricultural, or remote sites with limited network coverage
• Cabinet, wall, or pole-mounted external antenna installations
• High-reliability applications where strong and stable signal is essential

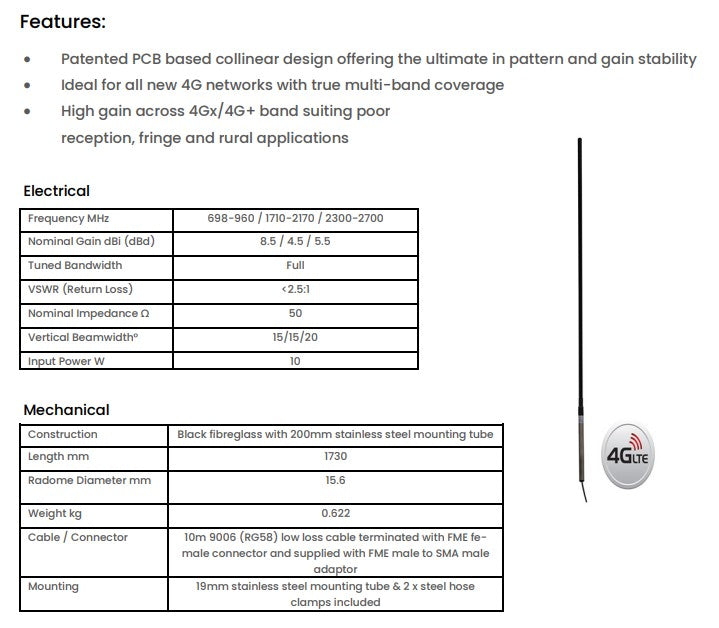

SPECIFICATIONS

Electrical:

• Frequency Range: 698–960 / 1710–2170 / 2300–2700 MHz
• Gain (Nominal): Up to 9.0dBi
• VSWR: < 2.5:1
• Impedance: 50 Ohm
• Input Power: 10W
• Beamwidth (Vertical): 15° / 15° / 20°

Mechanical:

• Total Length: 1730mm (1.73m)
• Radome Diameter: 15.6mm
• Weight: 0.622kg
• Construction: Black fibreglass radome with stainless steel 200mm mounting tube
• Mounting Hardware: 2 x stainless steel hose clamps (27–51mm adjustment)
• Cable: 10m 9006 low-loss RG58 with FME female connector
• Adapter: FME male to SMA male included
