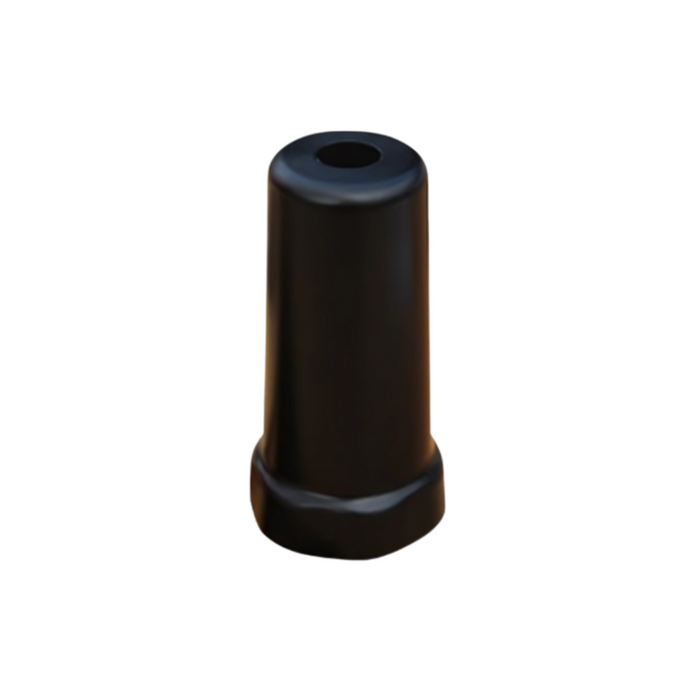

Signal SD-AN-850 3.5dB Compact Conical External Antenna with Grounding Kit

The Signal SD-AN-850 is a compact, low-profile 3.5dB omnidirectional LTE antenna designed for use with Signal SDS Series 4G/3G modems and wireless devices. Engineered for reliable mobile and fixed data performance, this antenna offers excellent coverage across a wide frequency range of 698–2700 MHz, making it ideal for improving wireless connectivity in remote or enclosed installations.

Housed in a UV-stable black polycarbonate radome, the SD-AN-850 is rated IP65 for weather resistance and is fitted with a 16mm stud mount and integrated O-ring seal for secure, leak-proof outdoor mounting. It includes an RG58 coaxial cable with SMA male connector and is supplied with a grounding kit for complete installation.

Its sleek conical shape allows for minimal overhead clearance—ideal for use in control boxes, field enclosures, or pit lids—while maintaining robust signal performance for Signal SDS controllers using the SD-MD modem or other wireless modules.

FEATURES

• 3.5dB nominal gain for LTE/4G coverage across 698–2700 MHz
• Compact, conical low-profile design – only 95mm tall
• IP65 rated for reliable outdoor use in all conditions
• Stud-mount with O-ring seal for easy and secure installation
• Polycarbonate UV-resistant radome for long-term durability
• Supplied with grounding kit for surge protection
• Compatible with Signal SD-MD 4G modem and SDS wireless devices
• Available in 1.25m or 5.0m RG58 cable lengths with SMA male connector

APPLICATIONS

• External antenna for Signal SDS 4G modem (SD-MD) installations
• Improving 3G/4G signal strength in metal enclosures or low-signal areas
• Ideal for pump stations, irrigation control cabinets, and remote sites
• Outdoor or wall-mounted data applications in agriculture or landscape systems

SPECIFICATIONS

Electrical:

• Frequency Range: 698–2700 MHz
• Gain (Nominal): 3.5dB
• Impedance: 50 Ohm
• VSWR: ≤ 2.0:1
• Power Handling: 10W

Mechanical:

• Mounting: 16mm stud mount with rubber O-ring seal
• Ingress Protection: IP65
• Material: UV-stable black polycarbonate radome
• Radome Dimensions: 80mm length × 50mm diameter
• Total Height: 95mm
• Weight: 0.17 kg
• Cable Options: RG58 coaxial, 1.25m or 5.0m
• Connector Type: SMA male
• Includes: Grounding kit
