Signal SD-AN-900 6.5dB 1m High Gain Omni-Directional Antenna for Increased range and Stable Signal Performance
Signal SD-AN-900 6.5dB 1m High Gain Omni-Directional Antenna for Increased range and Stable Signal Performance
| DOWNLOAD PRODUCT BROCHURE |

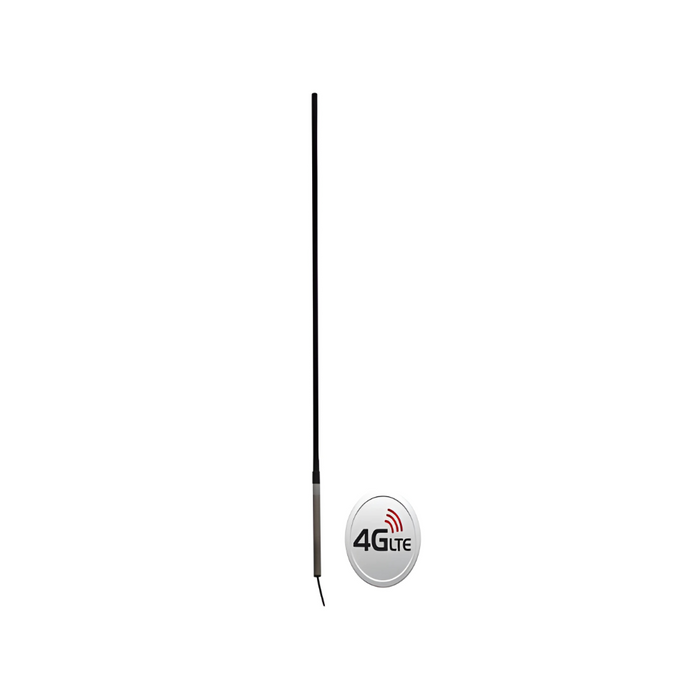

The Signal SD-AN-900 is a professional-grade 6.5dB omni-directional LTE antenna designed for increased range and stable signal performance in remote, rural, or fringe reception areas. Ideal for use with Signal SDS Series 4G modems, this high-gain antenna supports full LTE coverage across 698–2700 MHz, ensuring strong and reliable communication between your controller and the SignalCloud™ platform.
Built with a patented PCB-based collinear internal design, the SD-AN-900 offers superior gain stability and consistent 360° coverage. It features a fibreglass radome and is supplied with a 200mm stainless steel mounting tube, 2 steel hose clamps, and a 10m low-loss RG58 cable terminated with an FME female connector (plus SMA adapter).
Whether you're managing irrigation from a remote pump station, agricultural block, or rural site, the SD-AN-900 ensures you maintain strong data connection in even the most signal-challenged environments.
FEATURES
- 6.5dB high gain omni-directional antenna for LTE/4G
- Covers 698–2700 MHz for multi-band compatibility
- PCB-based collinear internal design for stable signal performance
- Ideal for remote, fringe, and rural installations
- Durable fibreglass radome with stainless steel mounting hardware
- Supplied with 10m low-loss cable and SMA adaptor
- Includes 200mm stainless steel mounting tube and 2 hose clamps
- Compatible with Signal SD-MD 4G Modem and other LTE devices
APPLICATIONS
- Enhancing 4G signal for Signal SDS irrigation controller modems
- Remote pump stations or field controllers in rural zones
- Locations with weak or fluctuating mobile network coverage
- Wall or pole-mounted LTE antenna installations
- Agricultural, commercial, or municipal irrigation systems

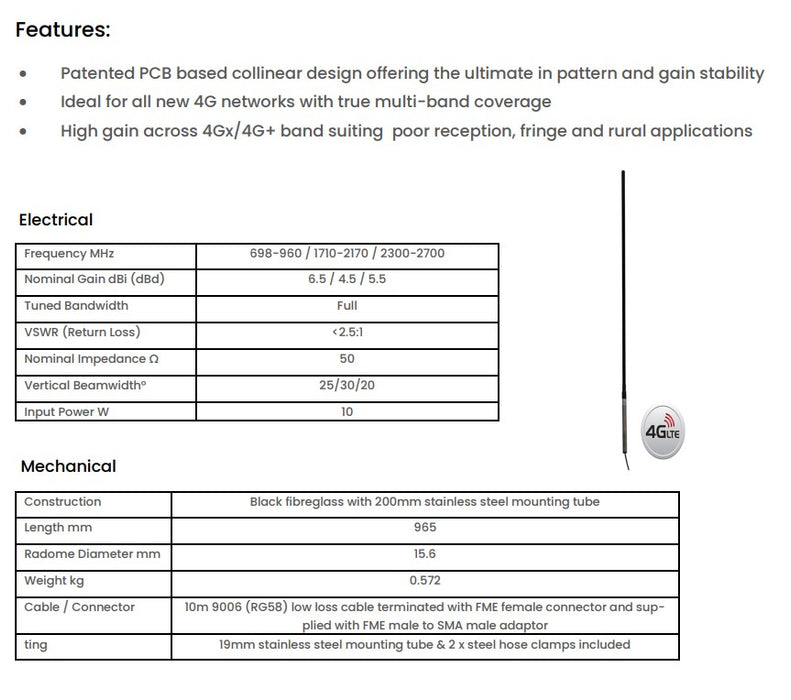

SPECIFICATIONS
Electrical:
- Frequency Range: 698–960 / 1710–2170 / 2300–2700 MHz
- Gain (Nominal): 6.5dBi
- VSWR: < 2.5:1
- Impedance: 50 Ohm
- Input Power: 10W
- Beamwidth (Vertical): 25° / 30° / 20°
Mechanical:
- Total Length: 965mm
- Radome Diameter: 15.6mm
- Weight: 0.572kg
- Material: Fibreglass radome with stainless steel mounting tube
- Mounting: 200mm vertical mounting tube with 2 x 27–51mm steel hose clamps
- Cable: 10m 9006 low-loss RG58 with FME female connector
- Adapter: FME male to SMA male included
