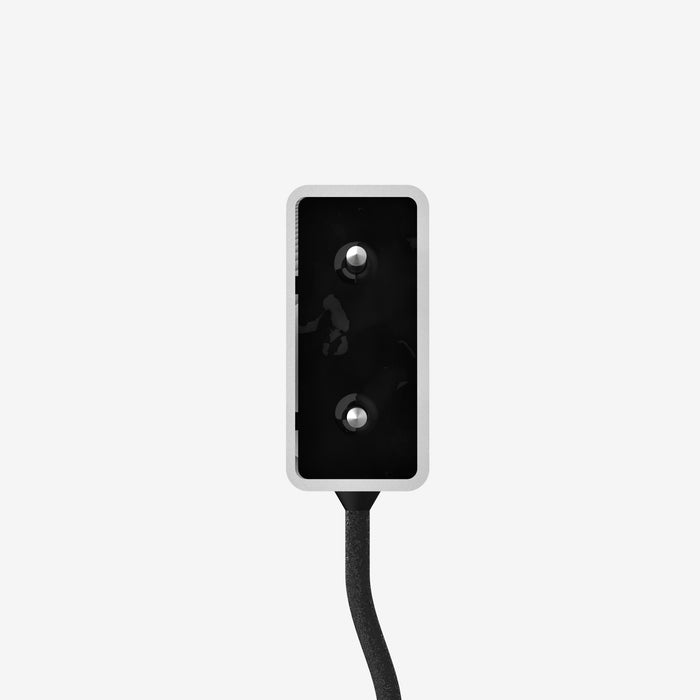

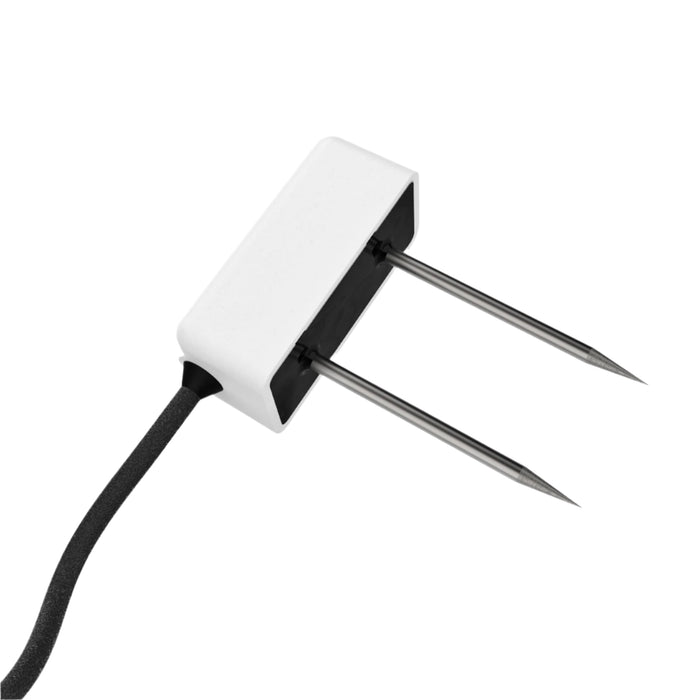

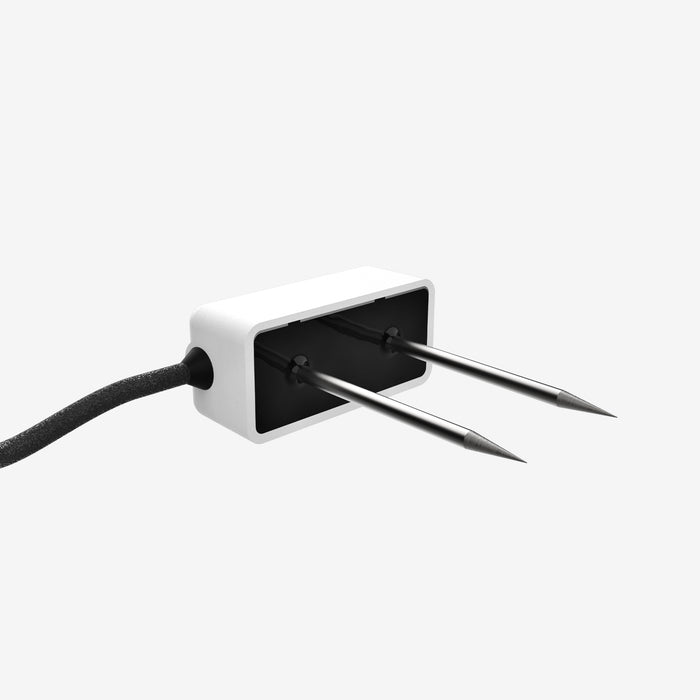

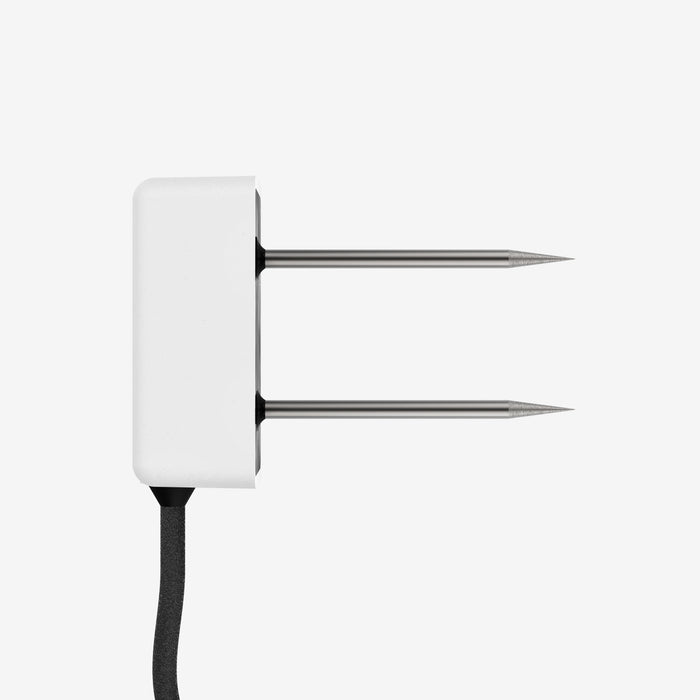

Signal SD-DN-MO Two-Wire Moisture Sensor & DataNode for SDS Two-Wire Irrigation Controllers

The Signal SD-DN-MO is a rugged, high-precision soil moisture sensor paired with a pre-attached DataNode, designed for direct integration into the two-wire network of SDS Series Irrigation Controllers. Using 70MHz frequency capacitance technology, it provides accurate and stable readings of volumetric water content (VWC) in all soil types — unaffected by salinity or soil texture.

Once installed, the sensor continuously reports live moisture percentages back to the SDS controller via the two-wire cable. Controllers can be programmed to automatically skip or delay irrigation schedules if the moisture reading exceeds a user-defined setpoint — a critical feature for water-efficient systems and rainfall responsiveness.

The SD-DN-MO connects directly to the two-wire path, is powered via the controller, and is fully supported by SignalCloud web software and the SDS-LINK mobile app, which provide a 7-day moisture trend graph for ongoing monitoring.

FEATURES

• Integrated Sensor & DataNode – Plugs directly into SDS two-wire cable
• Accurate VWC Monitoring – Measures soil moisture from 0 to 100%
• Irrigation Override Capable – Skips schedules when soil is too wet based on setpoint
• High-Frequency Dielectric Measurement – 70MHz reduces salinity and texture influence
• Real-Time Feedback – Moisture values shown on controller display and in SignalCloud
• Sensor Assignment – Each sensor can be assigned to a specific program
• Up to 4 Sensors Per Network – Ideal for multi-zone irrigation sites
• Graphical Moisture History – 7-day graphs available via web and app
• Durable Construction – Epoxy body and stainless steel prongs for harsh environments

SPECIFICATIONS

• Product Name: Signal SD-DN-MO Moisture Sensor & DataNode
• Sensor Type: Frequency capacitance (70MHz)
• Measurement Range: 0 to 100% Volumetric Water Content (VWC)
• Volume of Influence: 430 mL
• Sensor Dimensions: 51mm (W) x 24mm (D) x 75mm (H)
• Needle Length: 54mm
• Operating Temperature: -40°C to +50°C
• Power Supply: Supplied via two-wire path (no external power required)
• Cable Length: 5 metres
• Compatible Controllers: SDS-50, SDS-100
• Software Support: SignalCloud web platform & SDS-LINK mobile app
