0.25kW Solar Surface Jet Pump Kit with x2 200W Solar Panels & 3m Cable (Max 35LPM/370kPa)

The Land & Water 0.25kW Solar Surface Jet Pump Kit is a compact, energy-efficient solution for solar-powered water transfer from rainwater tanks. Designed specifically for above-ground domestic use, this system delivers consistent pressure and flow for garden watering, household utility water, or general-purpose tank-to-tap applications—all without relying on mains electricity.

This pump is not intended for drawing water from bores, creeks, rivers, or dams. It is optimised for clean, rainwater tank setups where solar-powered automation, quiet operation, and zero running costs are a priority.

This solar pump kit is ideal for:

• Garden watering using rainwater
• Solar-powered tank transfer for homes or sheds
• Off-grid water supply for livestock troughs (via tanks)
• Replacing mains-powered or noisy petrol transfer pumps

Powered by two 200W mono crystalline solar panels and managed via an MPPT control unit, this system enables automatic operation using included tank water level sensors. The controller also supports optional battery input for use during low-light conditions, offering flexibility for residential, eco-conscious households.

FEATURES

• Perfect for Rainwater Tanks: Designed for pumping from above-ground tanks only
• Solar Jet Pump: Efficient and quiet operation powered by free energy from the sun
• Smart MPPT Control: Maximises solar performance and offers battery compatibility
• Automatic Water Level Sensors: Prevents overflow or dry running by controlling pump start/stop
• Plug-and-Play Simplicity: Easy to set up with pre-wired connections and clear labelling

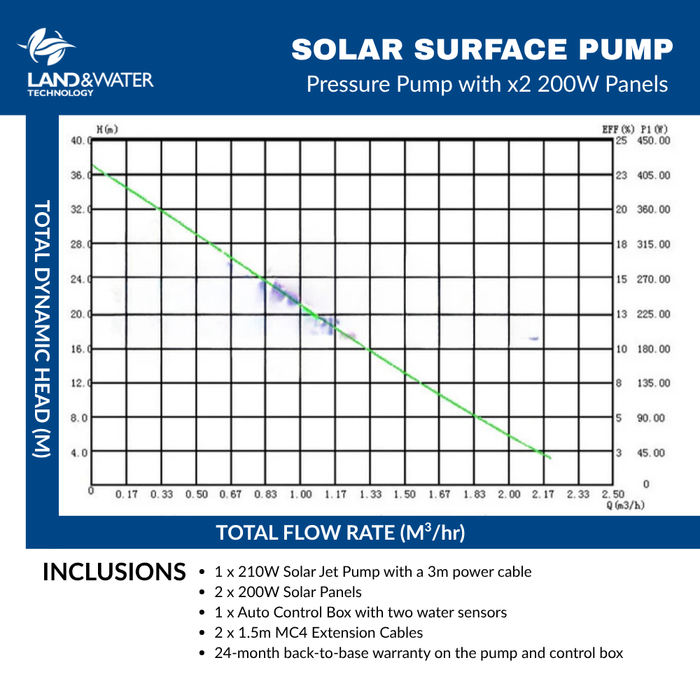

SPECIFICATIONS

• Pump Power: 210W / 36V DC
• Maximum Head: 37m
• Maximum Flow Rate: 35 L/min
• Outlet Size: 1" / 25mm
• Pump Dimensions: 27cm (L) × 12cm (W) × 16cm (H)
• Recommended Use: Clean rainwater from above-ground tanks only

AUTO CONTROL BOX FEATURES

• MPPT (Maximum Power Point Tracking) for optimal efficiency
• Automatic tank water level monitoring
• Adjustable motor speed
• Low power protection
• Supports solar and battery input (up to 100V DC open circuit)

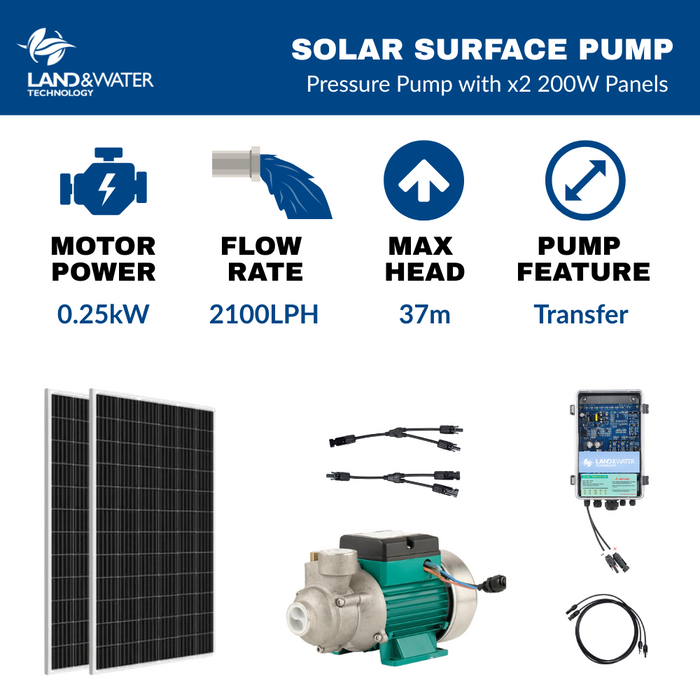

INCLUSIONS

• 1 × 210W Solar Jet Pump with 3m Fitted Power Cable
• 2 × 200W Mono Crystalline Solar Panels
• MPPT Auto Control Box with Dual Water Level Sensors
• 2 × 1.5m MC4 Solar Extension Cables
• User Manual
• 24-Month Back-to-Base Warranty on Pump & Control Box
