4" 1.00kW Submersible Solar Bore Pump Kit with x4 200W Solar Panels & 40m Cable (Max 50LPM/700kPa)

The Land & Water 4" 1.00kW Submersible Solar Bore Pump Kit is a high-capacity solar water pumping system tailored for medium-depth bores and high-volume off-grid applications. With a robust 1000W helical rotor pump at its core and powered by four 200W A-grade monocrystalline solar panels, this system is ideal for agricultural, rural, and livestock operations that require reliable water transfer without mains electricity or diesel-powered alternatives.

This solar pump kit is ideal for:

• Livestock watering
• Off-grid tank filling
• Water transfers between properties
• Sustainable bore water extraction in rural or agricultural settings

Compatible with standard 4" bores, the system is designed to extract water from depths up to 40 metres, pulling from bores, rivers, creeks, springs, and dams. Once installed, the system runs at zero operational cost and includes automatic water level sensors for safe, unattended operation. Its advanced MPPT controller also supports optional battery integration if storage is needed during low-light conditions.

FEATURES

• Solar Powered Efficiency: Operates using only sunlight—no inverter, mains power, or fuel required
• High Flow Capability: Up to 50L/min flow rate for faster tank fills and greater daily yield
• Advanced MPPT Controller: Automatically maximises solar input and protects the pump from dry-running or low voltage
• Plug-and-Play Simplicity: Pre-configured for fast setup with included extension cables and sensors
• Low Maintenance: Brushless motor and stainless steel build designed for long service life in harsh environments

SPECIFICATIONS

• Pump Power: 1000W / 110V DC
• Pump Type: Helical screw rotor
• Outlet Size: ¾"
• Weight: Approx. 14kg
• Maximum Submergence Depth: < 30m
• Recommended Max Head: 50m
• Typical Flow Rates:
  • 5–15m head – up to 4000 L/h (66 L/min)
  • 30m head – approx. 3500 L/h (58 L/min)
  • 40m head – approx. 2800 L/h (47 L/min)
  • 50m head – approx. 1500 L/h (25 L/min)

AUTO CONTROL BOX FEATURES

• MPPT (Maximum Power Point Tracking) for optimal solar efficiency
• Integrated bore and tank level sensor compatibility
• Adjustable motor speed and delayed restart timer
• Supports solar-only or hybrid solar/battery input (up to 110V DC open circuit)
• Low voltage, overload, and dry-run protection
• IP54-rated weather-resistant housing

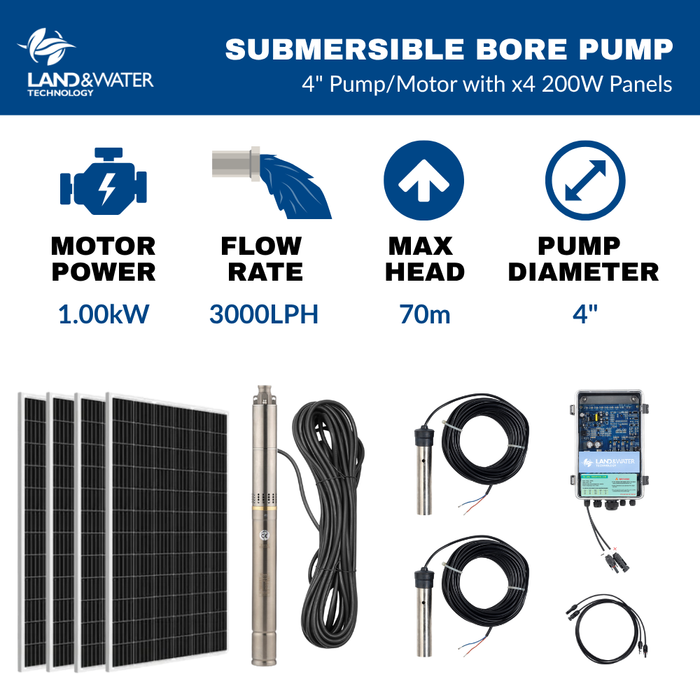

INCLUSIONS

• 4" 1000W Stainless Steel Solar Pump with 40m Fitted Power Cable
• 4 × 200W Mono Crystalline Solar Panels
• MPPT Auto Control Box
• 2 × 2m MC4 Solar Extension Cables
• 1 × 40m Bore + 10m Tank Water Sensor Cable
• User Manual
• 24-Month Warranty
• Additional Delivery Fees May Apply

EXCLUSIONS

• Stainless Steel Safety Wire
• Solar Panel Mounting Frames
• Poly Pipe from Pump to Storage Tank
