Armada Pro50K Digital AC/DC Solenoid Activator & Multimeter Kit with Tone Probe for Valve & 2-Wire Diagnostics

Activate, Chatter, Diagnose & Power-Test AC/DC Solenoids and 2-Wire Irrigation Systems

The Armada Pro50K is the next-generation digital AC/DC solenoid activator and diagnostic tool for irrigation professionals. Packed with field-ready features and smart diagnostics, the Pro50K replaces outdated analog testers with a fully digital multimeter, programmable solenoid driver, and tone generator — all in one rugged, compact unit.

With the Pro50™, you can test, activate, or chatter any low-voltage AC or DC solenoid, power up 2-wire control systems for field diagnostics, and trace wires using a tone signal. Unlike older models locked to generic resistance ranges, the Pro50™ gives you accurate voltage and resistance readings on the LCD screen — ensuring compatibility with modern and legacy solenoids, including those below 20 ohms.

The included Pro210F™ Filter Probe enables wire tracing using the tone feature, and the detachable 24" multimeter leads are easily replaceable, extending the tool’s working life. Everything is packaged in a convenient zippered carry case.

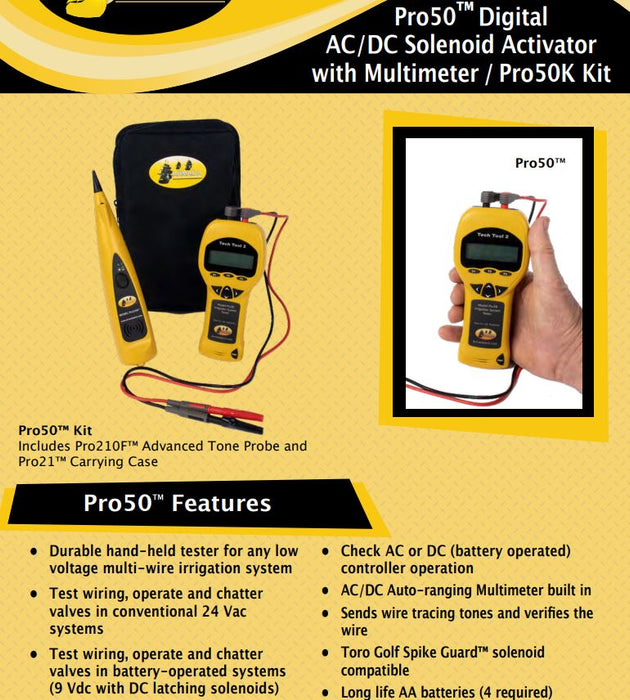

FEATURES

• Activates AC and DC latching solenoids, with chatter mode for valve location
• Powers 2-wire field systems for decoder and sensor diagnostics
• Built-in digital multimeter: reads AC/DC voltage and resistance with auto-ranging
• Sends tone signal for wire identification using included probe
• 3 Function Modes:
  • F1: DC Solenoid Activation
  • F2: 2-Wire Power/Fault-Finding
  • F3: 24VAC Solenoid Testing

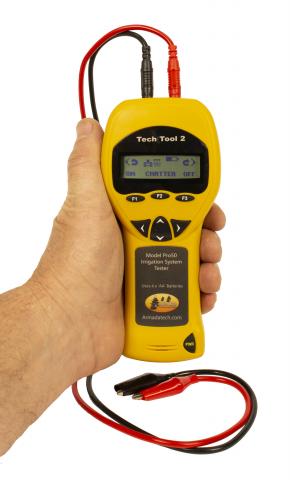

• LCD display with battery meter and intuitive navigation
• Long-life operation using 4 x AA batteries (not included)
• Replaceable 24" multimeter-grade alligator clip leads

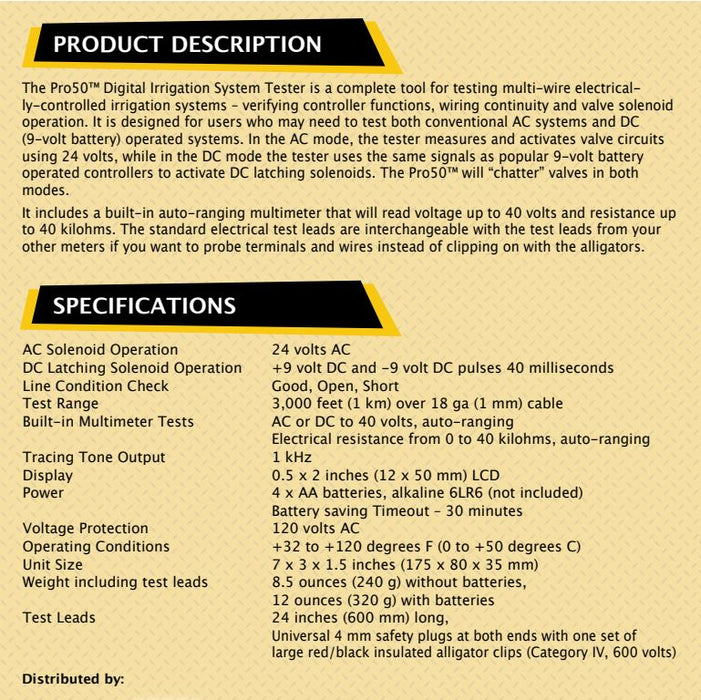

SPECIFICATIONS

• Tone Output Frequency: 900Hz & 1050Hz alternating at 2Hz
• Multimeter Voltage Range: Up to 40V (AC or DC)
• Resistance Range: 0 – 40kΩ (auto-ranging)
• Solenoid Output:
  • AC: 24V
  • DC: ±9V pulse (40ms)
• Test Range: Up to 3,000 ft over 18 AWG cable
• Tone Output Power: +6dBm
• Voltage Protection: Up to 120VAC/DC
• Display Size: 12 x 50mm LCD
• Auto Power-Off: 15-minute timeout
• Unit Dimensions: 175 x 80 x 35 mm
• Weight (w/o batteries): 240g

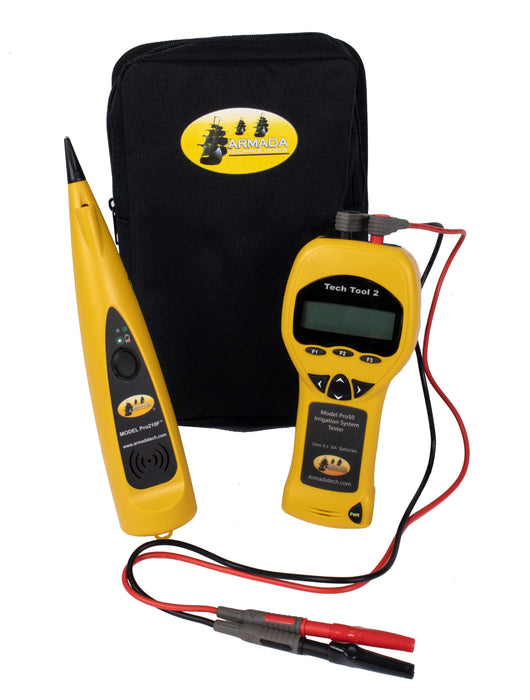

KIT INCLUDES

• Armada Pro50™ Digital Solenoid Activator & Multimeter
• Pro210F™ Advanced Tone Probe
• 24" Red/Black Alligator Clip Leads
• Zippered Soft Carry Case
