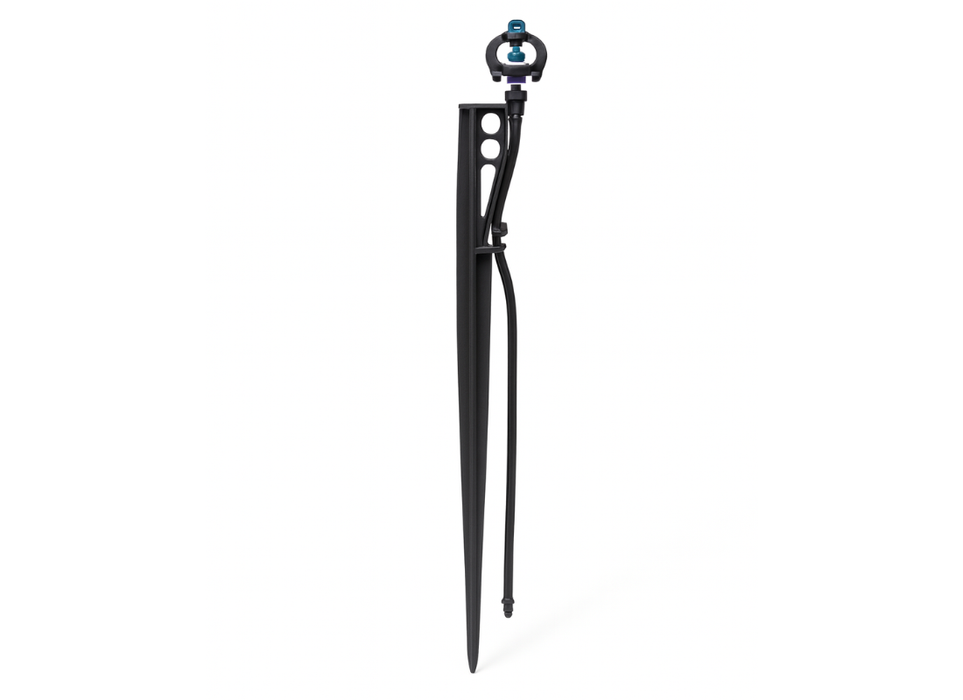

Nelson S7 Spinner Stake, Feedtube & Head (90Lph) Complete Assembly

Introducing the S7 Spinner - a new Nelson innovation designed to combat rising energy and labor costs. The S7's Modular design allows quick and easy nozzle exchange - and the Quick Clean (QC) technology reduces irrigator hours — simply turn, flush and reconnect. Special insect protection helps prevent plugging or stalling.

Nelson's 7 SERIES micro sprinklers (including the S7 Spinner & J7 Jet) can transform from one sprinkler type to another. Each sprinkler type uses the same adapters, stake & tube assemblies, body and nozzles. Therefore, each shares in the benefits of low pressure operating flow control nozzles, quick clean technology, and easy change nozzles. Additionally the same accessories such as stream splitters and PVC stake & tube assemblies can be used with each sprinkler type.

Specifications:

• Blue Plate W/Tab 24 GPH Red, Blue top
• 8.5 to 75 gph, 32 to 285 lph
• 15-50 PSI, 1.0-3.4 bar
• 9-16’ radius., 2.7-4.9 m radius

Recommended for irrigation of;

• Almond & Tree Nuts
• Apple & Pear Trees
• Citrus Trees
• Stonefruit
• Avocados
• Vineyards
• Cherrie Trees

Features & Benefits:

The modular design of the S7 allows quick and easy nozzle exchange, and the Quick Clean (QC) technology reduces irrigator hours — simply turn, flush and reconnect. Special insect protection helps prevent plugging or stalling.

• Unique quick-connect, quick-clean features
• Flow control options - nozzles are flow regulating at 15 PSI (1 bar)
• Optional tree starter (break off) deflector tabs offer flexibility.
• Optional PVC Stakes prevent tubing damage from coyotes and other animals.
• Easy to change 1TN or 7FC nozzle system
• Winner of the 2018 Irrigation Association New Product Award.

Additional Information:

The Nelson S7 Spinner is ideal for irrigation, frost-protection or cooling of any tree or vine crop. Important features new to micro-irrigation include: low-pressure flow regulation (new 7FC flow control nozzles are flow regulating from 15-50 PSI / 1.0-3.4 bar); quick-clean technology (plugged nozzles are flushed and cleaned in a few seconds); and superior wear-life that is made possible by a stainless steel ball that is affixed to the top of the spin plate.

The first ever micro-sprinkler with full modularity, the S7 has quick-change color-coded nozzles for easy size or nozzle type changes. But that is not all. The S7 is the first of a new line of micro-sprinklers that will Spin (S7 Spinner) or Rotate (R7 Rotator®) all with the same quarter-turn, quick-connect body that easily adapts to different connection options (including PVC and plastic stakes, or acme and MNPT threads). The highly-visible, heavy-duty PVC stake option protects the spaghetti tubing from animal and machine damage.

It's the perfect “one-sprinkler-per-tree” solution with an optional break-off tab on the spin plate. This reduces water use in the first 1 or 2 years of tree growth by limiting the throw radius to 3 feet.

Irrigation labor costs are reduced by design. Durable, low-maintenance PVC stake options, quick-clean nozzles and a plate that protects the nozzle from insect intrusion all make things easier for the grower.

Energy costs are reduced because the flow control nozzle begins flow regulating at lower pressure (15 PSI / 1 bar) allowing for lower operating pressures.

Said and done - the S7 Spinner delivers lower energy and labor costs and a higher level of quality, reliability and durability of any micro-sprinkler out there.
