Pedrollo 40L Automatic Wastewater Sewage Packaged Pump Station with Tritus-TX 0.55kW Grinder Pump

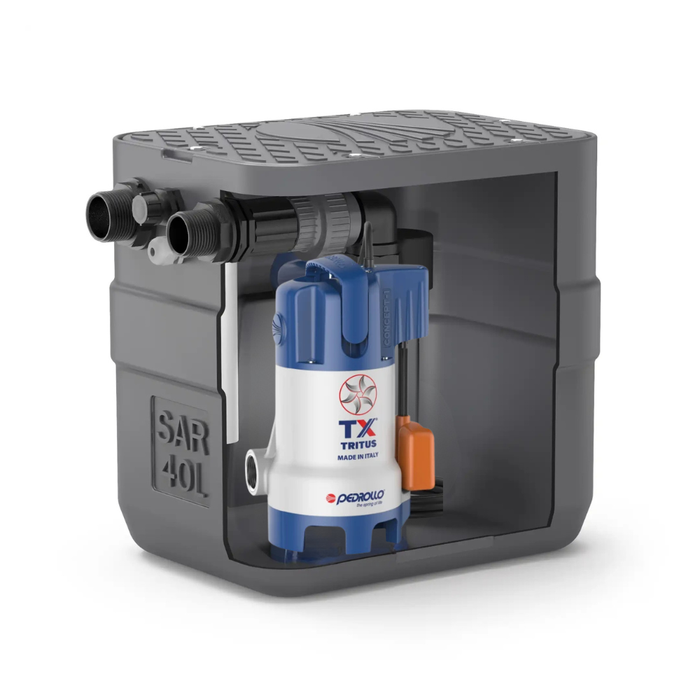

The Pedrollo SAR 40 packaged pump station provides a compact, plug-and-play solution for automatically collecting and lifting domestic wastewater and sewage from areas below sewer level. This 40-litre polyethylene tank is pre-assembled with a Pedrollo Tritus-TX 0.55 kW stainless steel grinder pump, float switch, non-return valve, and 5 m power cable, making it ideal for small residential installations.

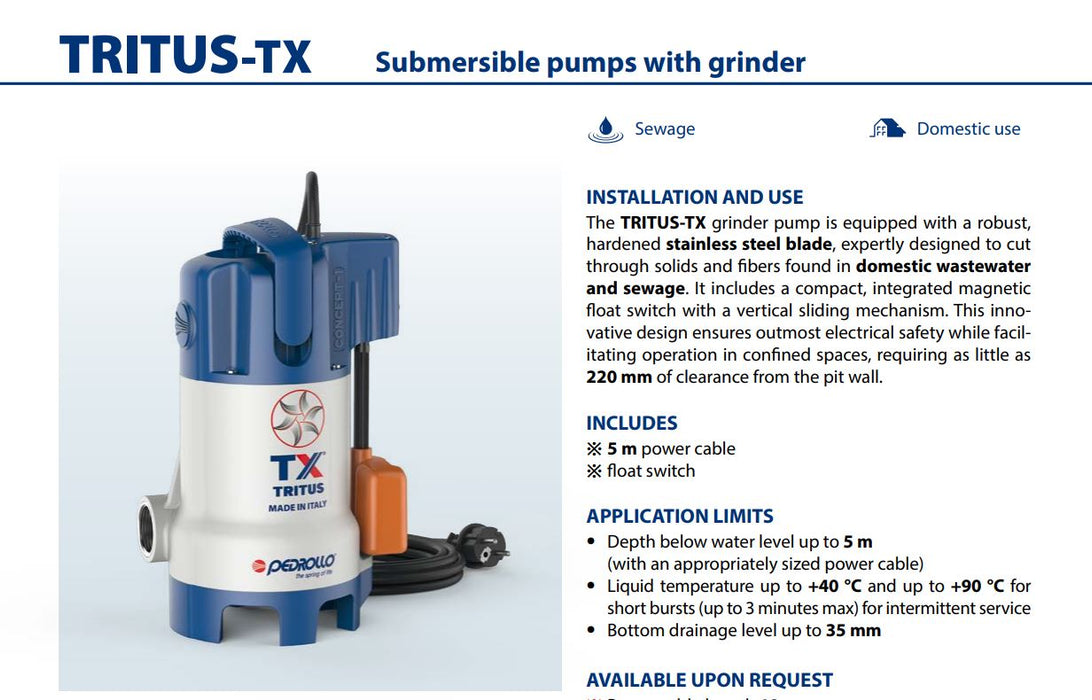

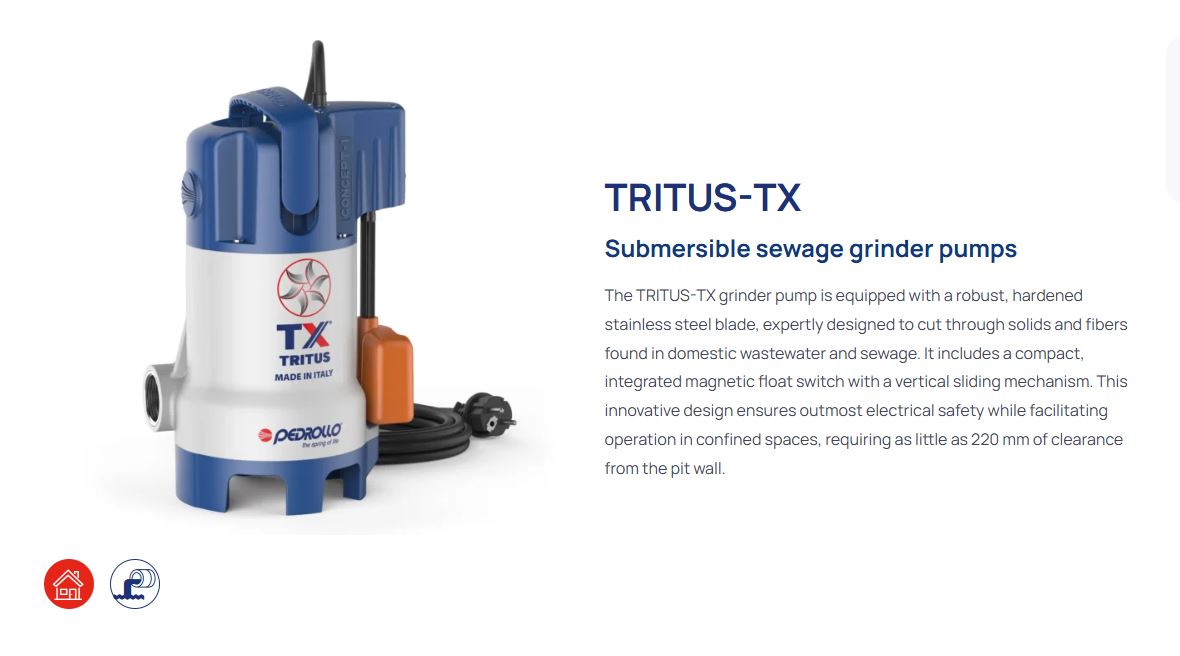

Engineered for reliability and ease of use, the Tritus-TX features a hardened AISI 440C stainless-steel grinder blade that efficiently shreds solids and fibres found in wastewater. The integrated magnetic float switch allows automatic operation even in tight installation spaces. The corrosion-resistant polyethylene tank with sealed lid ensures safe, odour-free containment for basement bathrooms, laundries, and small sewage pits.

Compact, durable, and factory-assembled — the SAR 40 Tritus-TX system is the perfect ready-to-install pumping station for confined domestic sewage and greywater applications.

FEATURES

• Complete packaged system – pre-assembled 40 L tank with grinder pump, float, and non-return valve.
• Powerful Tritus-TX grinder with AISI 440C stainless-steel cutting blades.
• Automatic magnetic float switch for level control and safe unattended operation.
• Compact polyethylene tank with sealed cover for odour prevention and easy maintenance.
• 5 m power cable with Schuko plug (EN 60335-2-41 compliant).

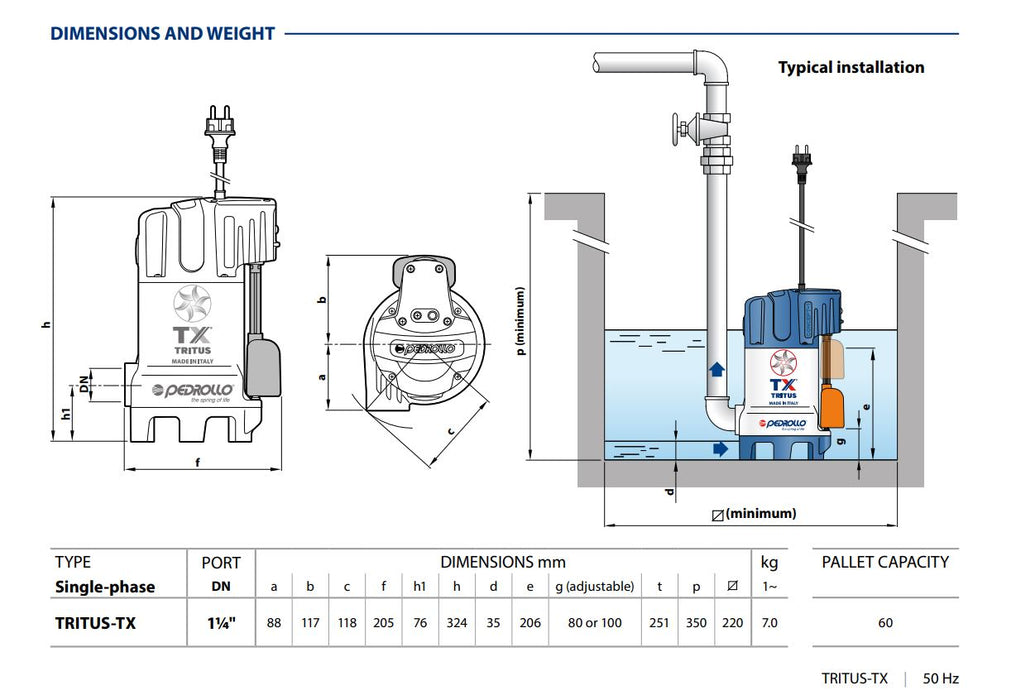

• Quick installation with 1½″ inlet, 1¼″ outlet, and ½″ vent connection.
• Handles liquid temperatures up to +40 °C (up to +90 °C for short bursts).
• Plug-and-play setup – no wiring or control box required.

SPECIFICATIONS

• Model: Pedrollo SAR 40 – Tritus-TX
• Tank Capacity: 40 L
• Pump Power: 0.55 kW / 0.75 HP

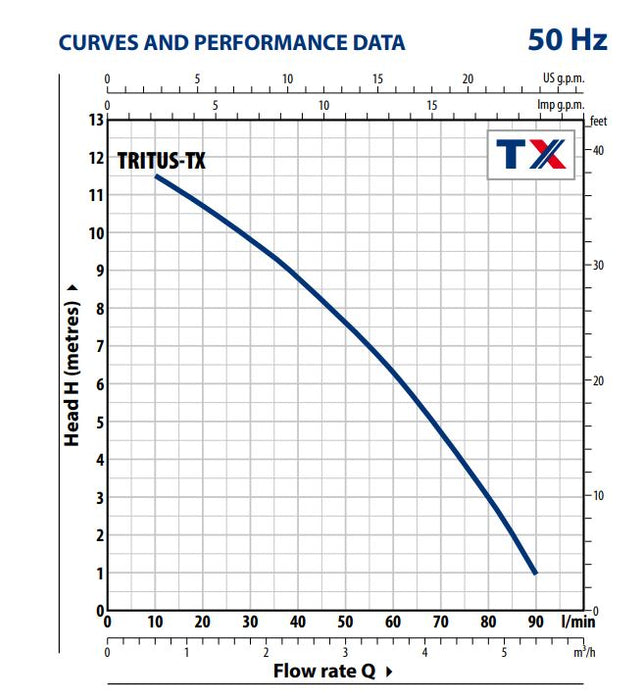

• Max Flow: 90 L/min (5.4 m³/h)
• Max Head: 12 m
• Voltage: 230 V Single Phase
• Discharge Port: 1¼″ BSP F
• Inlet Port: 1½″ BSP F
• Vent Port: ½″ BSP F
• Pump Type: Submersible grinder (Tritus-TX)
• Grinder Material: AISI 440C Stainless Steel
• Tank Material: Polyethylene (PE)
• Cable Length: 5 m H07 RN-F with plug
• Protection Class: IP68 (pump)
• Weight: ≈ 16.5 kg

APPLICATIONS

• Domestic wastewater and sewage lifting from below sewer level
• Basement bathrooms, laundries, and kitchens
• Small sewage pits and confined pump chambers
• Greywater and blackwater disposal from single dwellings

INCLUSIONS

• Pedrollo Tritus-TX 0.55 kW grinder pump
• 40 L polyethylene tank with cover
• Integrated float switch
• 5 m power cable with plug
• Non-return valve and fittings
