Mixrite TF10m³/HR - Proportional Injector Water Driven Pump Product Name: Mixrite TF10m³ - 0.1%-1% - TF10-001, Mixrite TF10m³ - 0.2%-2% - TF10-002, Mixrite TF10m³ - 1%-5% - TF10-005

Tefen Mixrite TF 10 Series 1½″ Water-Driven Proportional Dosing Pump for Nutrigation (Max 10 m³/hr)

by Tefen
PN: 28090210000
$3,895.00 - $4,450.00
$3,895.00
$3,895.00 - $4,450.00
$3,895.00

Mixrite TF10M³/HR Nutrigation Proportional Injector Water Driven

DOWNLOAD PRODUCT BROCHURE

The MixRite TF-10 water-driven proportional dosing pump is a high-capacity, non-electric solution for accurate chemical injection in nutrigation, irrigation, livestock and water treatment systems. Driven entirely by water flow, the TF-10 delivers precise proportional dosing based on the volume of water passing through the pipeline, maintaining accuracy even when flow or pressure conditions fluctuate.

Manufactured by TEFEN, the TF-10 is designed for applications requiring higher flow rates, handling up to 10 m³/hr with consistent repeatability. The pump automatically starts and stops with water flow and requires no electricity, controllers or calibration, making it ideal for remote and agricultural installations.

Dosing ratios are easily adjusted using the external adjustment sleeve, while the integrated ON/OFF function allows operators to stop chemical injection without shutting down the water supply. Depending on the selected variant, the TF-10 is suitable for fertilisers, nutrients, chlorine, acids and other water-soluble additives.

Constructed from durable engineered polymers with corrosion-resistant internal components, the MixRite TF-10 is built for long service life in demanding outdoor environments. Stand-mounted configurations provide added stability for larger installations, while chlorine-compatible Viton seal options ensure safe and reliable dosing of aggressive chemicals.

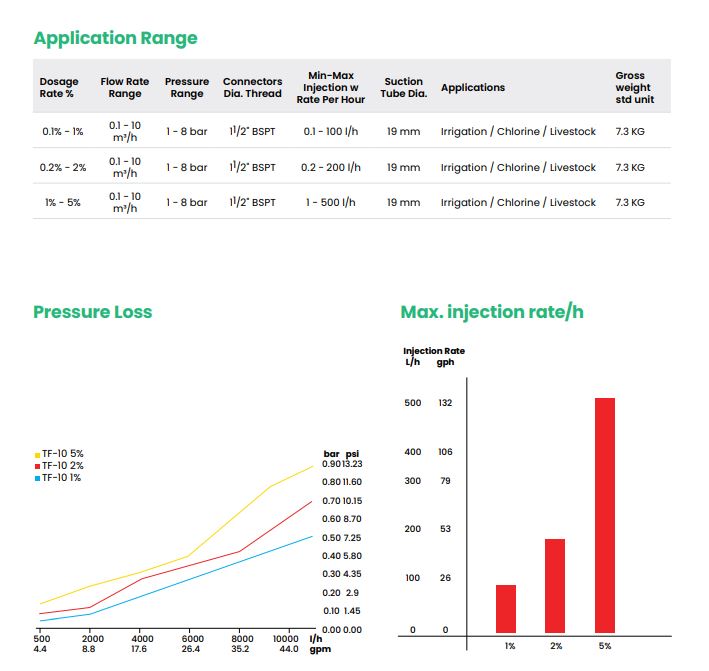

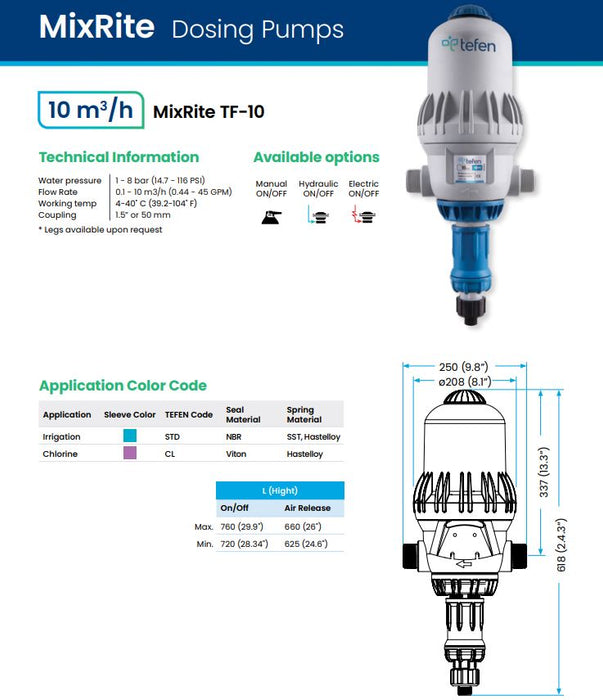

SPECIFICATIONS

Feature 28090210000 2809021CL00 28090510000
Dosing Range 0.2–2% 0.2–2% 1–5%
Connection 1½″ BSP (Male) 1½″ BSP (Male) 1½″ BSP (Male)
Control ON/OFF ON/OFF ON/OFF
Seal Material Viton NBR NBR
Chemical Suitability Chlorine & aggressive chemicals Fertilisers, nutrients Fertilisers, nutrients
Stand Included No Yes Yes
Max Flow Rate 10 m³/hr 10 m³/hr 10 m³/hr

KEY SPECIFICATIONS

  • Pump Type: Water-driven proportional dosing pump
  • Max Flow Rate: 10 m³/hr
  • Operating Pressure: 1 – 8 bar
  • Dosing Adjustment: Manual adjustable sleeve
  • Control: Integrated ON/OFF
  • Connection Size: 1½″ BSP (Male)
  • Installation: Inline or bypass
  • Power Requirement: None (non-electric)

APPLICATIONS

  • Nutrigation and fertigation systems
  • Agricultural and commercial irrigation
  • Livestock drinking water treatment
  • Chlorination and disinfection systems
  • Industrial and sanitation dosing
