3" 0.25kW Submersible Solar Bore Pump Kit with x2 200W Solar Panels & 40m Cable (Max 20LPM/800kPa)

The Land & Water 3" 0.25kW Submersible Solar Bore Pump Kit is a reliable and energy-efficient water supply solution, purpose-built for remote and off-grid locations. Designed to deliver water directly from bores, dams, rivers, creeks, or springs, this system operates purely on solar power—eliminating the need for grid electricity, inverters, or fuel-powered generators. With a rugged stainless steel helical rotor pump at its core and an advanced MPPT controller managing power flow, the system is ideal for continuous, unattended operation in harsh rural environments.

Whether you're filling tanks for livestock, irrigating remote paddocks, or simply transferring water between sites, this plug-and-play kit provides dependable performance day after day—with zero ongoing running costs. Compatible with bores as small as 3 inches and suited for heads up to 40 metres, it’s a smart, sustainable solution for agricultural and lifestyle properties looking to maximise water access from natural sources.

This solar pump kit is ideal for:

• Livestock watering
• Off-grid tank filling
• Water transfers between properties
• Sustainable bore water extraction in rural or agricultural settings

FEATURES

• Complete Off-Grid System: Runs entirely on solar power – no ongoing energy costs.
• Efficient Helical Rotor Pump: Delivers high pressure with low energy input, perfect for narrow bores or high head applications.
• MPPT Solar Controller: Maximises power input from panels and protects pump from low voltage, dry-run, or overload.
• Auto Water Level Sensors: Includes bore and tank water sensors to prevent dry-running and tank overflow.
• Plug-and-Play Installation: Comes with all essential cables and connectors pre-configured for fast setup.

SPECIFICATIONS

• Pump Power: 210W / 36V DC
• Pump Type: Helical screw rotor
• Outlet Size: 20mm FBSP (¾")
• Max Head: 80m (Recommended under 40m dynamic head)
• Max Flow Rate:
  • 10m head – 22 L/min
  • 20m head – 18 L/min
  • 30m head – 12 L/min
  • 40m head – 8 L/min
• Pump Dimensions: 76mm x 400mm
• Weight: 10kg
• Max Submergence: 30m

AUTO CONTROL BOX FEATURES

• MPPT (Maximum Power Point Tracking) for optimised solar input
• Water level monitoring with automatic start/stop
• Adjustable motor speed and delay timer
• Low power and overload protection
• Compatible with solar and battery power (12V–100V input depending on configuration)
• IP54-rated enclosure for dust and splash resistance

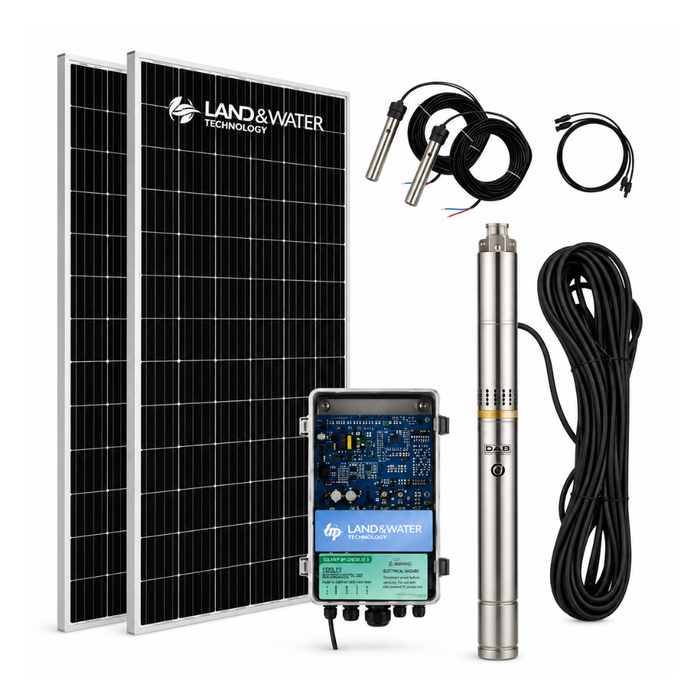

INCLUSIONS

• 3" 210W Stainless Steel Solar Pump with 40m power cable
• 2 × 200W Mono Crystalline Solar Panels (1580 × 808 × 35mm, 16kg each)
• MPPT Auto Control Box
• Spare Helical Rotor Screw
• 2 × MC4 Solar Extension Cables
• 1 × 40m Bore Water Sensor + 10m Tank Sensor Combo
• User Manual
• 24-Month Warranty
• Delivery Fees May Apply

EXCLUSIONS

• Stainless Steel Safety Wire
• Solar Panel Mounting Frames
• Poly Pipe from Pump to Tank
