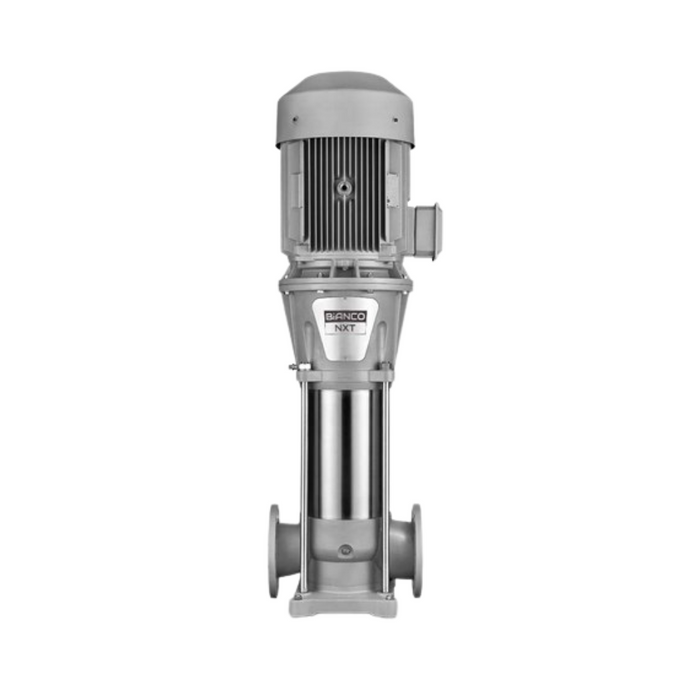

Bianco Summit VMS1-130 Solar AC/DC Solar Vertical Multistage Surface Pump (Max 40LPM/1190kPa)

The Bianco Summit VMS1-130 Solar Series is a high-pressure vertical multistage pump designed for solar-powered or hybrid AC/DC installations where performance and efficiency are critical. Delivering a maximum head of 118.7 metres and a flow rate of up to 40 litres per minute, it is ideally suited for off-grid water supply systems, tank filling, and high-lift irrigation applications.

The VMS1-130 is compatible with both AC and DC power sources, making it a flexible solution for standalone solar systems or hybrid configurations. With a compact in-line design and equal-sized inlet and outlet flanges, installation is simple—even in tight or retrofitted pipework systems. The pump is constructed from 304 stainless steel throughout the body, shaft, and impeller to ensure long-lasting durability and corrosion resistance. A graphite and silicon carbide mechanical seal adds to the pump's robust performance in demanding applications.

A removable coupling makes motor servicing quick and easy without dismantling the pump from the line. The IP55-rated, fan-cooled motor is built to endure harsh conditions, with Class F insulation and the ability to operate in fluid temperatures ranging from -15°C to +120°C, and system pressures up to 33 bar. The pump’s water-lubricated bearings provide quiet, low-maintenance operation ideal for long-term use.

FEATURES

• Solar AC/DC compatible for off-grid or hybrid power applications
• Enhanced energy efficiency and quiet operation
• Compact, in-line design for easy installation
• Premium materials: 304 stainless steel pump body, shaft, and impeller
• Durable graphite/S-IC mechanical seal
• Removable coupling for easy motor servicing
• Operates in temperatures from -15°C to +120°C and pressures up to 33 bar
• IP55-rated, fan-cooled motor with water-lubricated bearings

APPLICATIONS

• Solar-powered water supply
• Off-grid and hybrid pumping systems
• Industrial liquid transfer
• Water treatment
• Irrigation in remote or rural areas

SPECIFICATIONS
